Multifunzioni e stampanti UTAX

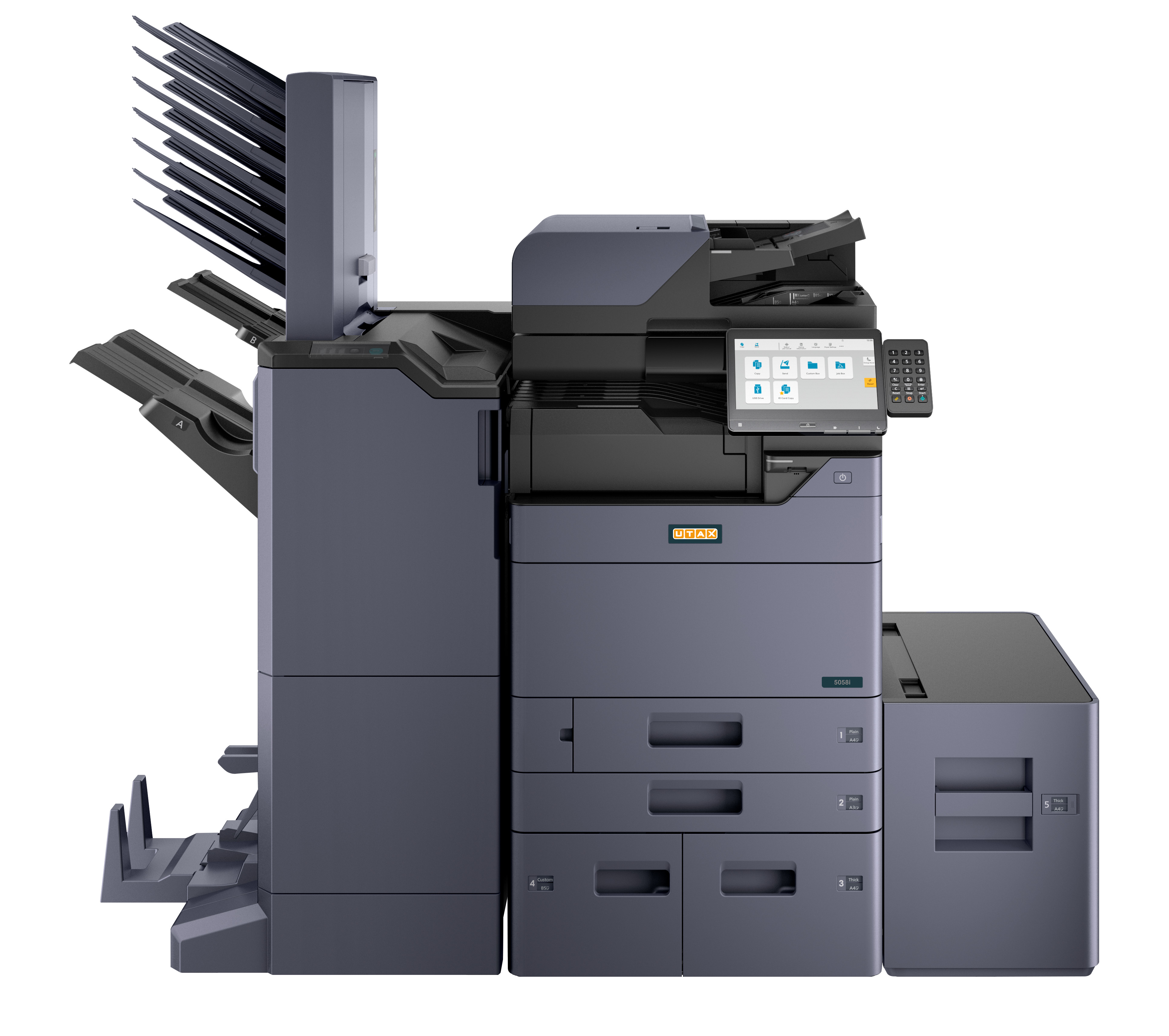

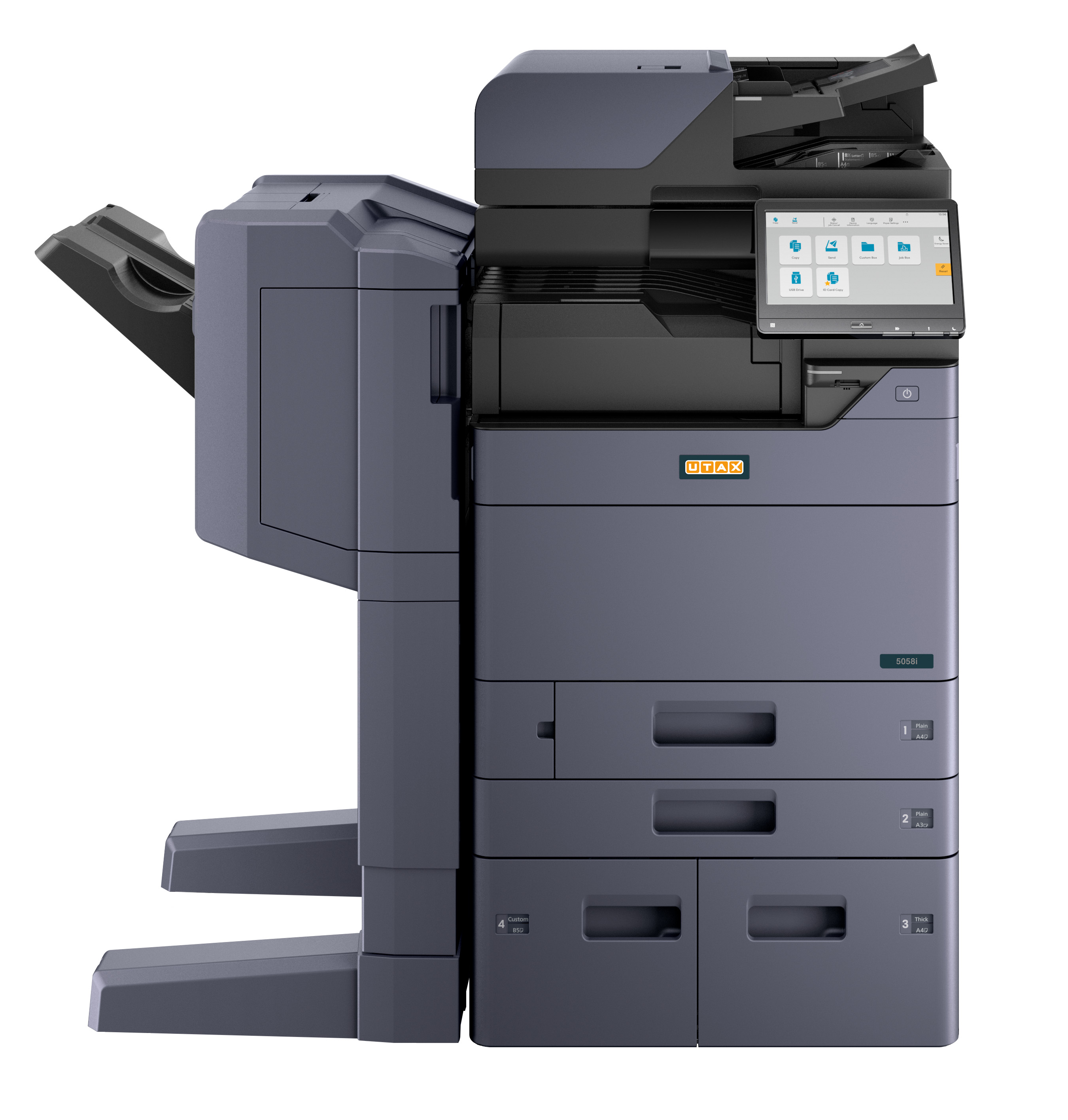

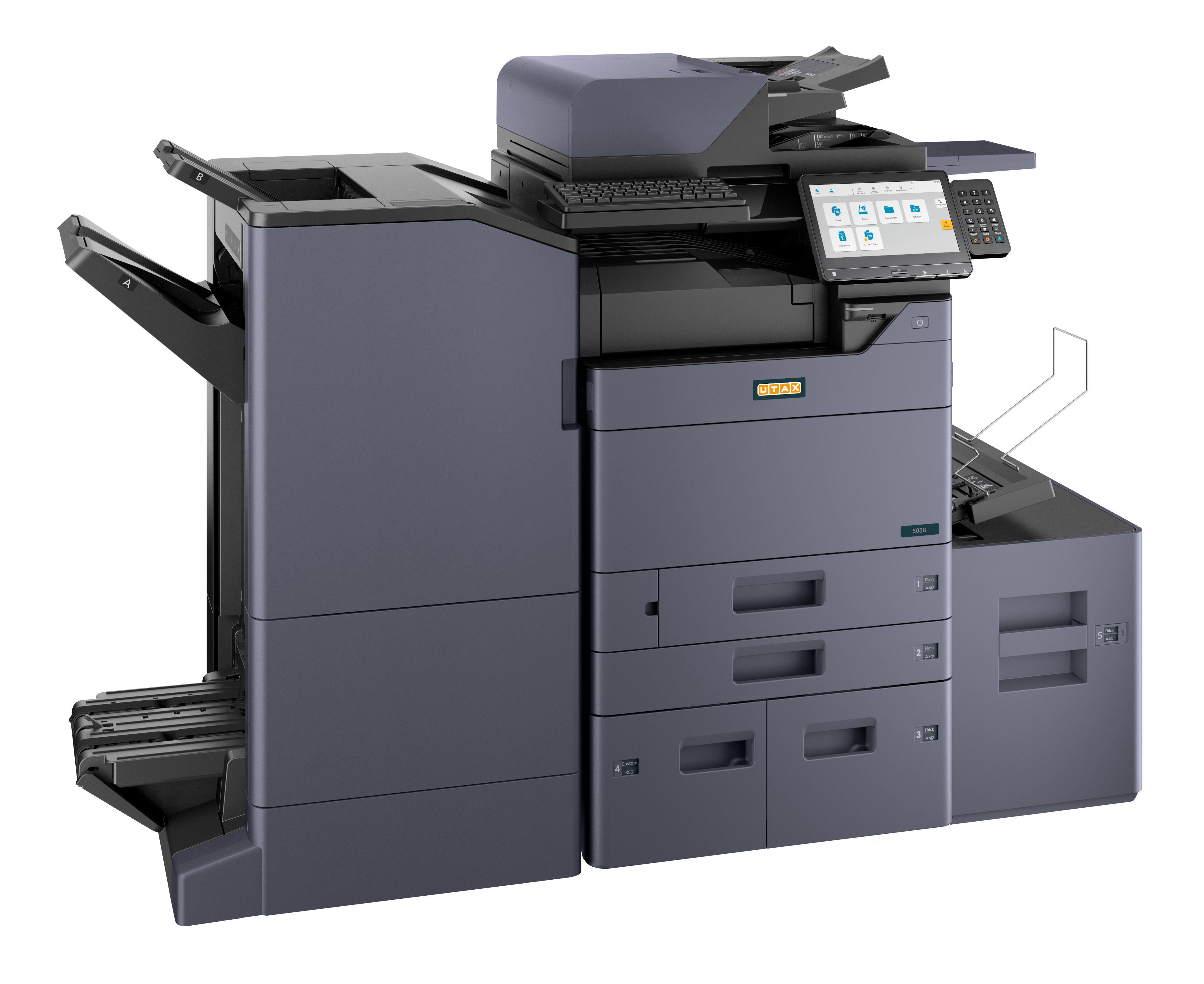

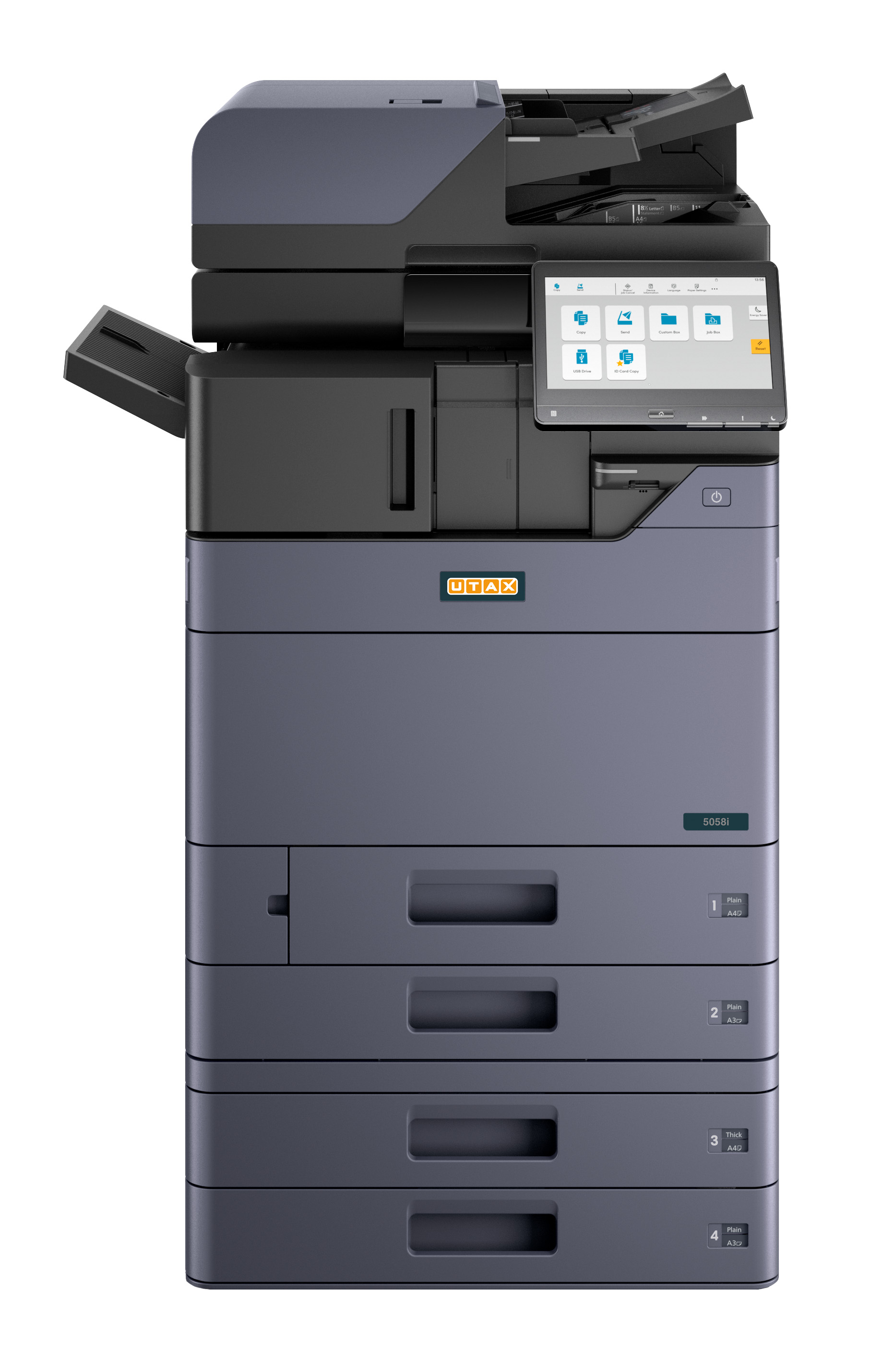

UTAX 5058i/6058i/7058i

[5058i]

Copy / Print / Scan / Fax A3 B/N


Specifiche Tecniche

Type
Desktop
Function
Copy
print
scan
optional: fax
Print technology
Laser b/w
Original format
max A3 from platen glass
Print speed (A4, Simplex) B/W
50
Print speed (A3, Simplex) B/W
25
Copy speed (A4, Simplex) B/W
50
Copy speed (A3, Simplex) B/W
25
1st page (printing, colour)
1st page (printing, b/w)
4.3
1st page (copying, colour)
1st page (copying, b/w)
3.7
Warm-up time
17
Copy resolution
600 x 600 dpi
Greyscales
256
Paper feed (Universal cassettes amount)
2 x 500 sheet universal cassettes
Paper feed (1st cassette types)
A6R-A4
Paper feed (2nd cassette types)
A6R-SRA3
Paper feed (Multi-Bypass amount)
1 x 500 sheet
Paper feed (Multi-Bypass types)
A6R-SRA3
Banner [305 x 1,219 mm]
Paper feed (print-only)
SRA3 and banner
Paper weights (Universal cassette min)
52
Paper weights (Universal cassette max)
300
Paper weights (Multi-Bypass min)
52
Paper weights (Multi-Bypass max)
300
Paper weights (Duplex min)
64
Paper weights (Duplex max)
256
Paper output
500 sheet A4
System memory (RAM)
4
System memory (SSD)
64
System memory (Optional)
320 GB HDD
Continuous copying (min)
1
Continuous copying (max)
9999
Zoom (min)
25
Zoom (max)
400
Zoom (step)
1
Functions
Adjustable colour touch screen (10.1 inch)
duplex
1000 management codes
skip blank pages
motion sensor
encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module)
secure boot and run time integrity check
trusted platform modul (TPM)
etc.
Dimensions (height)
790
Dimensions (width)
602
Dimensions (depth)
665
Weight
83
Mains voltage
220/240 V
Utility frequency
50/60 Hz
Power consumption (max)
1750
Power consumption (busy)
660
Power consumption (standby)
45
Power consumption (sleep)
0.5
Power consumption (TEC)
0.6
Safety
GS/TÜV
CE
Type
Integrated within the system
Print format
A6R-SRA3
Print resolution (min)
600 x 600 dpi
Print resolution (max)
1,200 x 1,200 dpi
Processor
ARM A53 1,6GHz
Interfaces
USB 3.0
USB 2.0
10/100/1000BaseTX
USB host
NFC
SD-Card Slot
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Novell NetWare
Linux
Mac ex OS 10.9
Emulations
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
XPS
PRESCRIBE Ile
Functions
USB direct printing
PDF/XPS direct printing
printing of e-mails
private printing
barcode printing
SNMPv3
Mobile Print (Android, iOS)/Apple AirPrint
Scan type
CCD colour and b/w
Scan format
max A3
Scan speed (Feeder 1, simplex, colour)
137
Scan speed (Feeder 1, simplex, b/w)
137
Scan speed (Feeder 1, duplex, colour)
274
Scan speed (Feeder 1, duplex, b/w)
274
Optional feeder 1
DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
Scan resolution
200 dpi
300 dpi
400 dpi
600 dpi
Scan mode
text
photo/text
optimised for OCR
File types
TIFF
JPEG
PDF
PDF/A
high compression PDF
encrypted PDF
XPS
OpenXPS
Interfaces
10/100/1000BaseTX
Network protocol
TCP/IP
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Functions
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
Type
Faxsystem 12
Compatibility
Super G3
Original format
max A3
Modem speed
33.6
Transmission speed
3 seconds or less using JBIG
Compression method
JBIG
MMR
MR
MH
Fax resolution
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
600 x 600 dpi
Fax memory
170
Abbreviated dial
2000
One touch dial
1000
Group dial
500
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Functions
Network fax driver
automatic redialling
delayed transmission
max 2 fax kits for parallel transmission and reception
Original feeder
DP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²)
DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²)
DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²)
DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
Original platen cover
Platen cover type E (if document processor is not installed)
Finisher
DF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4)
DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),
PH-7120 hole punch unit for DF-7100
PH-7C hole punch unit for DF-7120/7140
BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4)
DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4)
MT- 730 (B) Multi Tray für DF-7140
Job Separator
JS-7100 (100 sheet, 52-300 g/m², A6R - SRA3)
JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
Paper feed
PF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3])
PF-7150 (2 x 1,500 sheet large capacity cassette [A4])
PF-7120 (3,000 sheet large capacity tray [A4], side deck)
Other options
Scan extension kit (A)
Internet fax kit (A)
Card authentication kit (B)
Keyboard holder 10
Banner guide 10
UG-33 ThinPrint® kit
UG-34 Emulation option kit
IB-50 Gigabit Ethernet card
IB-51 WLAN card (IEEE802.11/b/g/n)
IB-37 WLAN card (IEEE802.11a/b/g/n/ac)
NK-7120 Numeric Keyboard (10 keys)
DT-730(B) Document tray
cabinet no. 81
HD-15 (320 GB HDD)
HD-16 (1 TB HDD)
