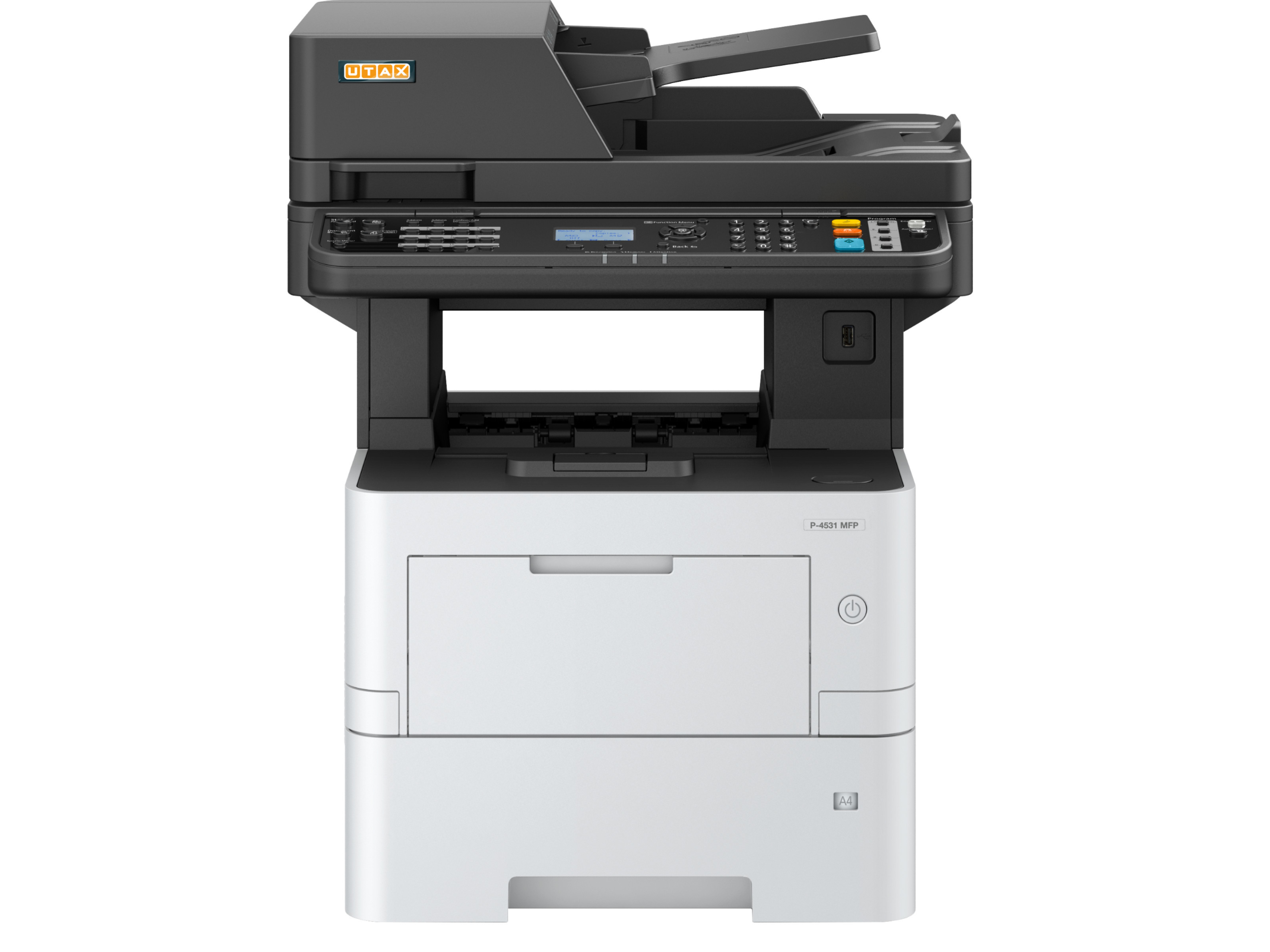

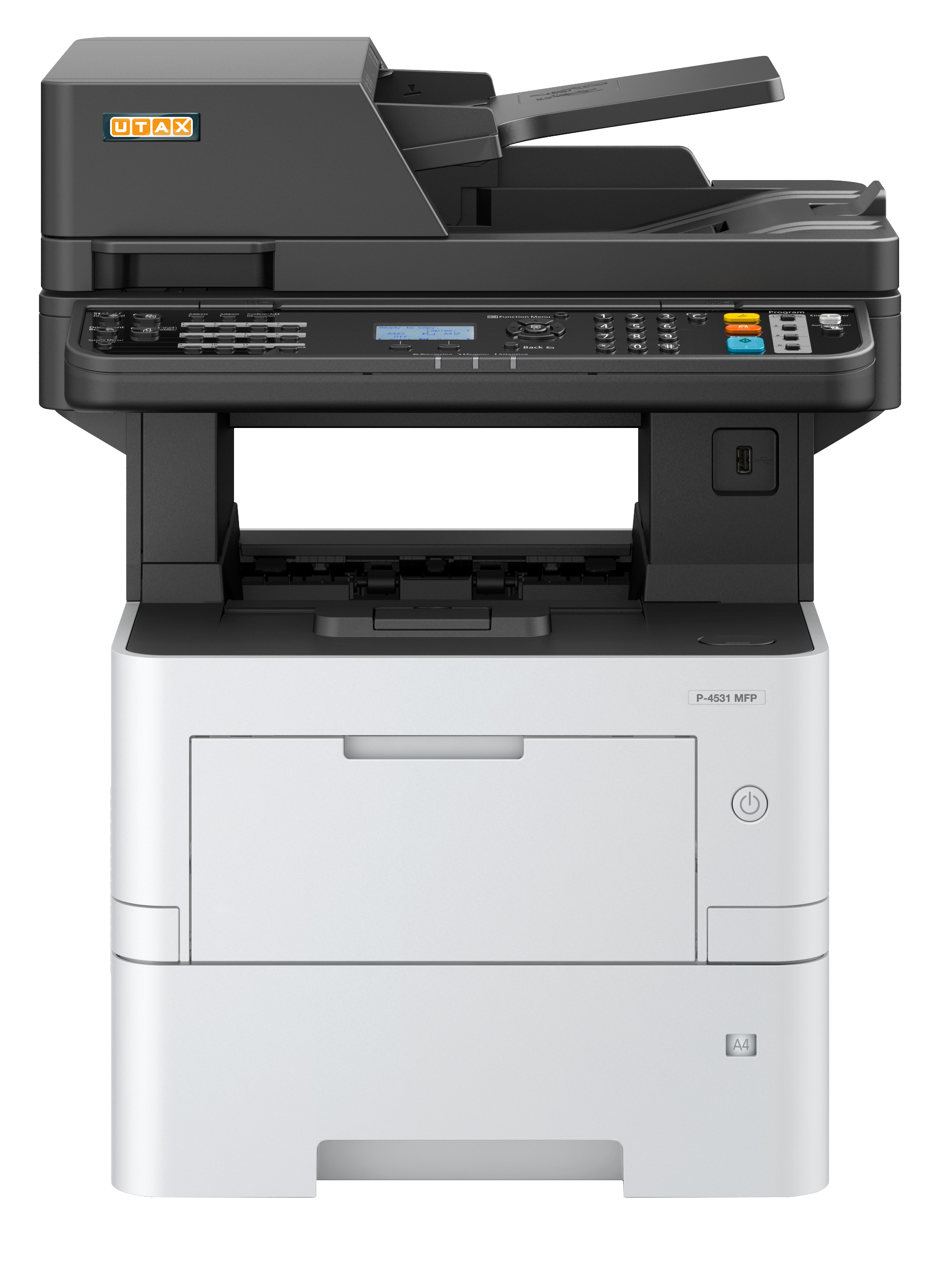

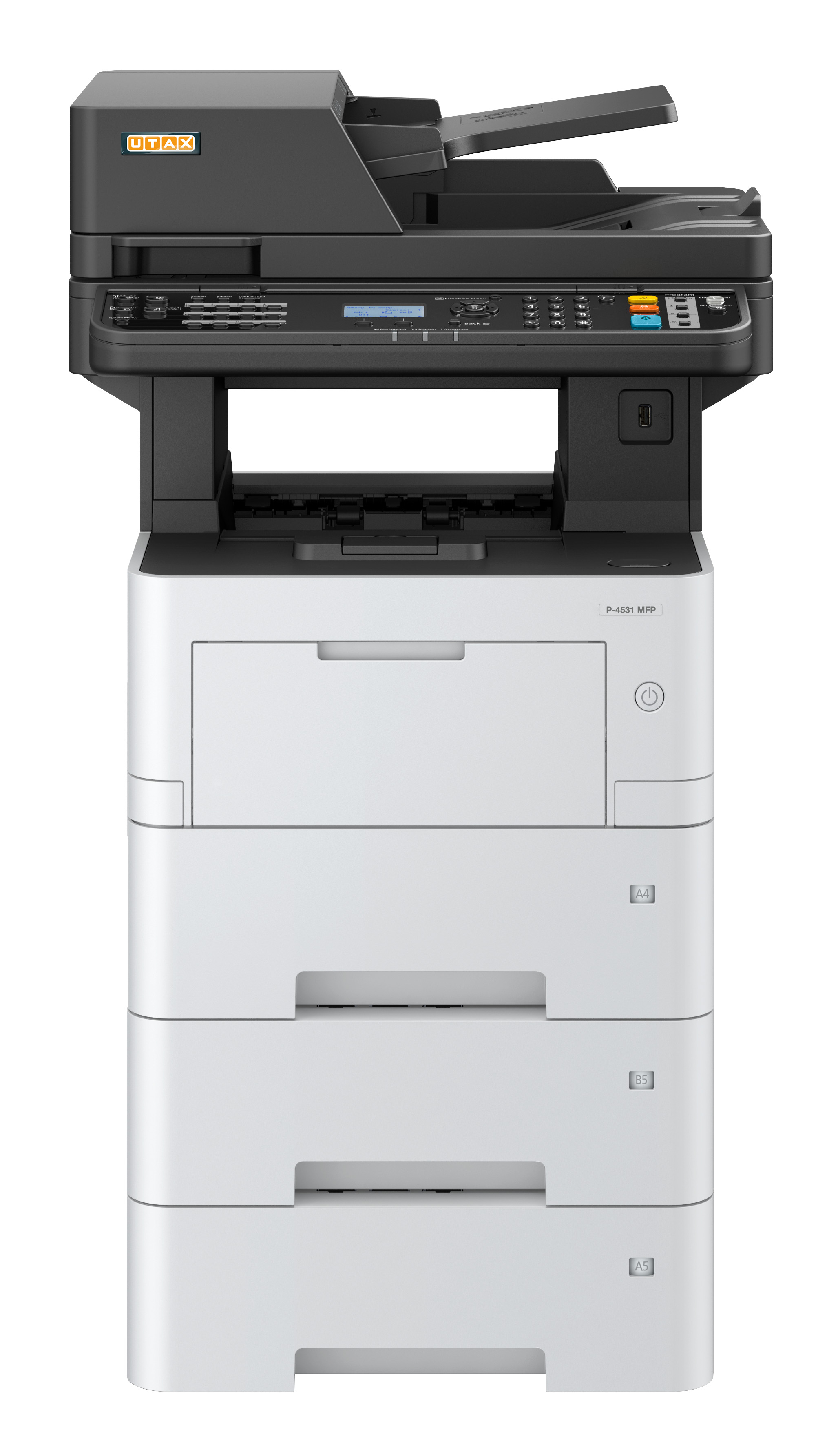

UTAX P-4531 MFP
Multifunzione A4 fax 45ppm
Specifiche Tecniche
Type | Desktop |
---|---|
Function | Copy, print, scan |
Print technology | Laser b/w |
Original feeder | 75 sheet original feeder, A6R-A4, 50-120 g/m² (simplex/duplex) |
Copy/print speed | max 45 A4 pages/min, duplex: max 22.5 A4 pages/min |
1st page | 5.3/7 seconds* (print/copy) |
Warm-up time | 16 seconds |
Copy resolution | 600 x 600 dpi |
Greyscales | 256 |
Paper feed | 1 x 500 sheet universal cassette (A5R-A4, min. 140 x 148 mm, max. 216 x 356 mm), 100 sheet multi-bypass (A6R-A4, min. 70 x 148 mm, max. 216 x 356 mm) |
Paper weights | Cassette 60-120 g/m2, multi-bypass 60-220 g/m2, duplex 60-120 g/m2, Banner: max. 915 mm length |
Paper output | 500 sheet A4 |
System memory | 1 GB RAM, (max 3 GB RAM), HD-6 (32 GB)/HD-7 (128 GB) SSD** |
Continuous copy | 1-999 copies |
Zoom | 25 %-400 % in 1 % steps |
Functions | Adjustable touch screen (7 inch), duplex, job reservation, favorites ( job programs), ID card copy, Scan Once – Copy Many, conitnuous copy, N-up, quiet mode (half speed mode), 100 management codes |
Dimensions/weight | 575 mm x 475 mm x 476 mm (H x W x D), approx. 22.5 kg |
Environment | |
Mains voltage | 220/240 V, 50 Hz |
Power consumption | approx. 1,276 W max, approx. 630 W in operation, approx. 50 W in stand-by mode, approx. 0.5 W in sleep mode, TEC value: 2.2 KWh/week |
Noise level | approx. 52 dB(A) in operation,approx. 27,2 dB(A) in stand-by mode (ISO 7779/9296) |
Safety | GS/TÜV, CE |
Printing | |
Print formats | A6R-A4 |
Print resolution | 1,200 x 1,200 dpi |
Processor | ARM Cortex-A9, 1.2 GHz |
Interfaces | USB 2.0, 10/100/1000BaseTX, USB host |
Network protocols | TCP/IP, Net BEUI |
Operating systems | Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016, Novell NetWare**, Linux, Mac ex OS 10.5 |
Emulations | PCL6 (PCL 5e/c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE IIe, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7 |
Functions | USB direct printing, printing of e-mails, barcode printing, private printing (with additional memory), WSD-/internet printing, Mobile Print/Apple AirPrint**, Google Cloud Print, Wi-Fi** |
Scanning | |
Scan technology | CCD colour and b/w |
Scan format | max A4 |
Scan speed | b/w: max 60/26 A4 pages/min (simplex/duplex), colour: max 40/17 A4 pages/min (simplex/duplex) at 300 dpi |
Scan resolution | 600 x 600 dpi |
File types | TIFF, JPEG, PDF, PDF/A-1a, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, Open XPS, MS Office/durchsuchbares PDF** |
Interfaces | 10/100/1000BaseTX, USB 2.0 |
Network protocols | TCP/IP |
Betriebssysteme Betriebssysteme Betriebssysteme | Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016 |
Functions | Scan to SMB, scan to e-mail, scan to FTP, TWAIN-scan, scan to USB, WSD-scan, SMTP Authentifizierung, LDAP |
*depending on operating status | |
**optional |
Brochures
Manuali
Certificato
Toner
File size: 0.1 MB
EN_EV_P-4531DN_P-4531MFP_P-4536 MFP_P-4532DN_TO_TA_UT_Rev_3.pdf
Toner
File size: 0.1 MB
DE_EV_P-4531DN_P-4531MFP_P-4536 MFP_P-4532DN_TO_TA_UT_Rev_3.pdf
Drivers
Linux PPD
Version: 8.1711
Date: 13-06-2018
File size: 0.6 MB
Linux-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
XPS Driver
Version: 2.2.1123
Date: 13-06-2018
File size: 26.1 MB
XPS-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows XP, Windows Vista
PCL 5 Driver [Mini Driver]
Version: 4.1
Date: 13-06-2018
File size: 0.1 MB
PCL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows XP, Windows Vista
Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1112
Date: 13-06-2018
File size: 0.1 MB
KPDL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
PCL 5 Driver [Mini Driver]
Version: 1.9
Date: 13-06-2018
File size: 0.1 MB
PCL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
PRINT-DRIVER
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
KX Universal PCL / Post Script Driver
Version: 7.2.1123
Microsoft certified
Date: 13-06-2018
File size: 38.2 MB
KX-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1711
Date: 13-06-2018
File size: 0.3 MB
KPDL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
Twain Driver
Version: 2.0.8413
WIA Network Driver
Version: 2.2.1628
WIA USB Driver
Version: 2.2.1628
Date: 13-06-2018
File size: 21.3 MB
ScanDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
MAC Installer OS X 10.8 - 10.12 Sierra
Version: 4.0 / 2018.05.09
Date: 28-05-2018
File size: 19.6 MB
CCD-cLP_MacOSx10.8-10.12_20180528.zip
Windows 10, Windwos 8.1, Windows 7,
Server 2016, Server 2019
KX XPS Driver
Version: 5.0.1120
Microsoft certified
Date: 11-05-2020
File size: 106.0 MB
KXv4Driver_V501120_20200511.zip
MAC Installer OS X 10.15 Catalina
Date: 29-11-2019
File size: 25.1 MB
cCD-cLP_MAC-OS_10.15_Catalina_20191129.zip
MAC Installer OS X 10.14 Mojave
Date: 22-10-2019
File size: 25.7 MB
cCD-cLP_MAC-OS_10.14_Mojave_20191022.zip
Windows 10, Server 2012, Server 2012 R2,
Server 2016, Server 2019
KX Universal PCL / Post Script Driver
Version: 8.0.1329
Microsoft certified
Date: 18-02-2020
File size: 74.4 MB
KXDriver_cCC_cLP_V801329_PrDr20200218.zip.zip
Windows Vista, Windows 7, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016, Server 2019
KX Universal PCL / Post Script Driver
Version: 8.0.1329
Microsoft certified
Date: 18-02-2020
File size: 74.4 MB
KXDriver_cCC_cLP_V801329_OldOS_PrDr20200218.zip.zip
Utilities
Tutti i files
Linux PPD
Version: 8.1711
Date: 13-06-2018
File size: 0.6 MB
Linux-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
XPS Driver
Version: 2.2.1123
Date: 13-06-2018
File size: 26.1 MB
XPS-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
PCL 5 Driver [Mini Driver]
Version: 1.9
Date: 13-06-2018
File size: 0.1 MB
PCL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1711
Date: 13-06-2018
File size: 0.3 MB
KPDL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows XP, Windows Vista
PCL 5 Driver [Mini Driver]
Version: 4.1
Date: 13-06-2018
File size: 0.1 MB
PCL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows XP, Windows Vista
Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1112
Date: 13-06-2018
File size: 0.1 MB
KPDL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
Twain Driver
Version: 2.0.8413
WIA Network Driver
Version: 2.2.1628
WIA USB Driver
Version: 2.2.1628
Date: 13-06-2018
File size: 21.3 MB
ScanDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
PRINT-DRIVER
Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016
KX Universal PCL / Post Script Driver
Version: 7.2.1123
Microsoft certified
Date: 13-06-2018
File size: 38.2 MB
KX-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip
MAC Installer OS X 10.8 - 10.12 Sierra
Version: 4.0 / 2018.05.09
Date: 28-05-2018
File size: 19.6 MB
CCD-cLP_MacOSx10.8-10.12_20180528.zip
Network Print Monitor 6x
Software + Manual
für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems
Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019
Version: 6.2.1426
Date: 09-03-2021
File size: 119.9 MB
NPM_621426.zip_20210309.zip
Windows 10, Windwos 8.1, Windows 7,
Server 2016, Server 2019
KX XPS Driver
Version: 5.0.1120
Microsoft certified
Date: 11-05-2020
File size: 106.0 MB
KXv4Driver_V501120_20200511.zip
MAC Installer OS X 10.15 Catalina
Date: 29-11-2019
File size: 25.1 MB
cCD-cLP_MAC-OS_10.15_Catalina_20191129.zip
MAC Installer OS X 10.14 Mojave
Date: 22-10-2019
File size: 25.7 MB
cCD-cLP_MAC-OS_10.14_Mojave_20191022.zip
Network Print Monitor 5x
Software + Manual
für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems
Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
Version: 5.12.1029
Date: 12-11-2019
File size: 105.9 MB
PR-NetworkPrintMonitor_V5121029-20191112.zip
Windows 10, Server 2012, Server 2012 R2,
Server 2016, Server 2019
KX Universal PCL / Post Script Driver
Version: 8.0.1329
Microsoft certified
Date: 18-02-2020
File size: 74.4 MB
KXDriver_cCC_cLP_V801329_PrDr20200218.zip.zip
Windows Vista, Windows 7, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016, Server 2019
KX Universal PCL / Post Script Driver
Version: 8.0.1329
Microsoft certified
Date: 18-02-2020
File size: 74.4 MB
KXDriver_cCC_cLP_V801329_OldOS_PrDr20200218.zip.zip
2506ci / 3206ci / 3262i / 350ci / 356ci / 4006ci / 400ci / 4056i / 4062i / 5006ci / 5056i / 6006ci / 6056i / 7006ci / 7056i / 8006ci / 8056i / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP / P-C3066i MFP / P-C3566i MFP
File size: 1.7 MB
DB_UT_Data Security Kit_UK.pdf
P-4531 MFP / P-4536 MFP
File size: 0.1 MB
QG_P-4531_4536 MFP_UT_UK.pdf
P-4531 MFP / P-4536 MFP
File size: 0.1 MB
QG_P-4531_4536 MFP_UT_D.pdf
Toner
File size: 0.1 MB
EN_EV_P-4531DN_P-4531MFP_P-4536 MFP_P-4532DN_TO_TA_UT_Rev_3.pdf
Toner
File size: 0.1 MB
DE_EV_P-4531DN_P-4531MFP_P-4536 MFP_P-4532DN_TO_TA_UT_Rev_3.pdf
P-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 302ci / 3262i / 352ci / 357ci / 402ci / 4062i / 502ci / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-4020 MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP
File size: 6.2 MB
DE_BC_UT_PU_A4_01_2021.pdf
P-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2507ci / 302ci / 3207ci / 3262i / 352ci / 357ci / 4007ci / 402ci / 4062i / 5007ci / 502ci / 5057i / 6007ci / 6057i / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP
File size: 6.2 MB
EN_BC_UT_PU_A4_01_2021.pdf
P-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2507ci / 302ci / 3207ci / 3262i / 352ci / 357ci / 4007ci / 402ci / 4062i / 5007ci / 502ci / 5057i / 6007ci / 6057i / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP
File size: 6.2 MB
IT_BC_UT_PU_A4_01_2021.pdf
P-4531 MFP / P-4536 MFP
File size: 9.6 MB
IH_P-4531_4536_MFP_UT_PT.pdf
