Multifunzioni e stampanti UTAX

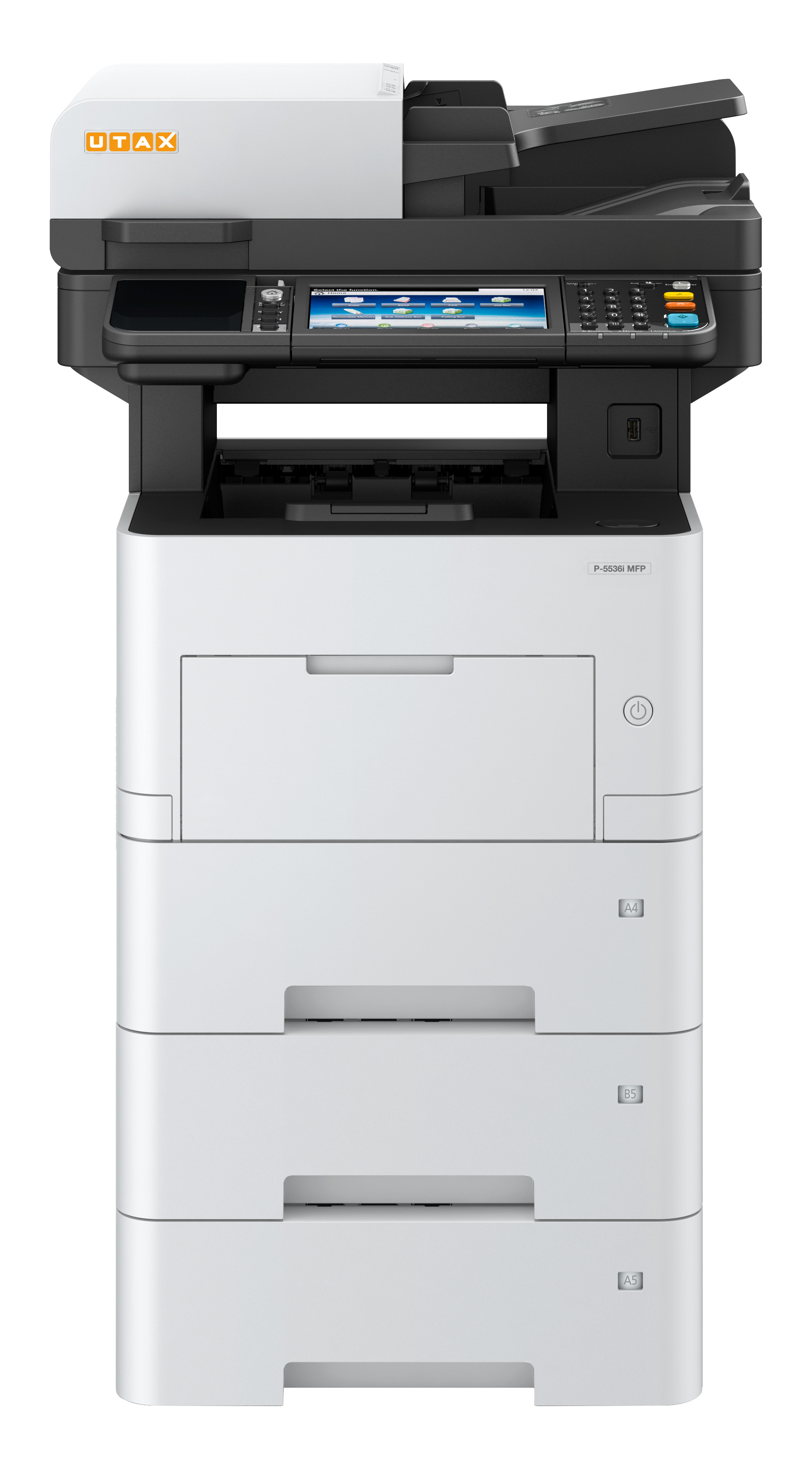

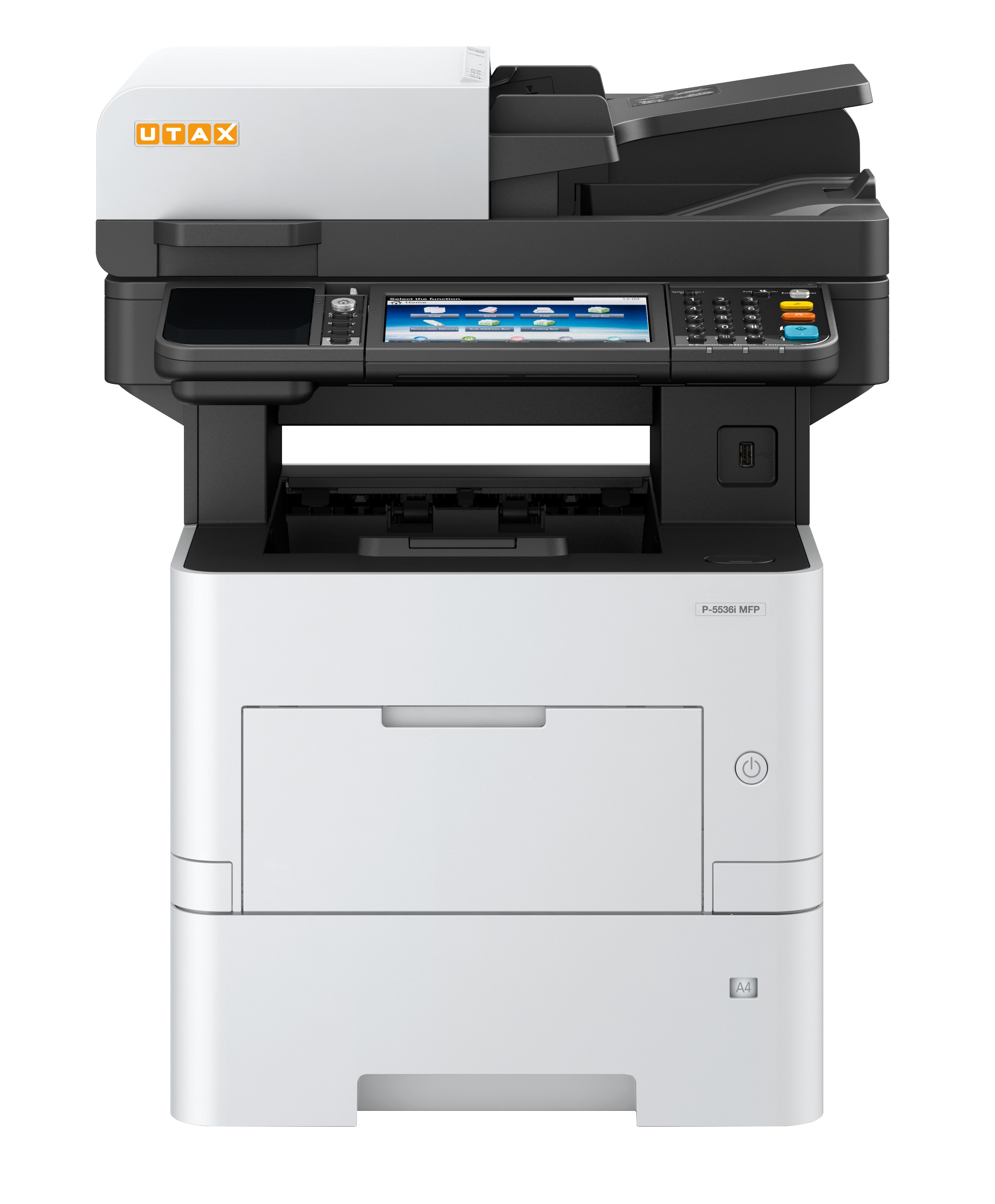

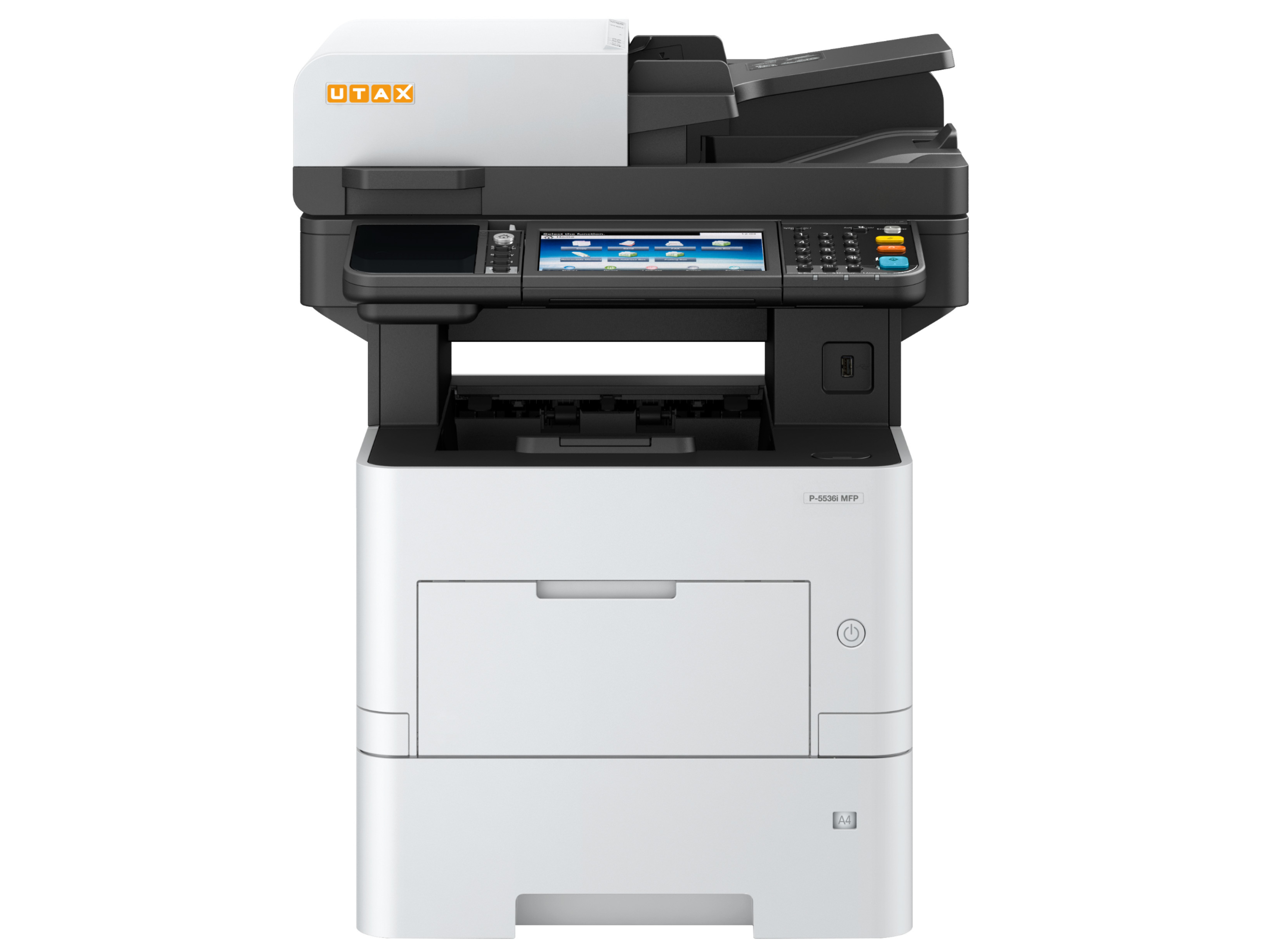

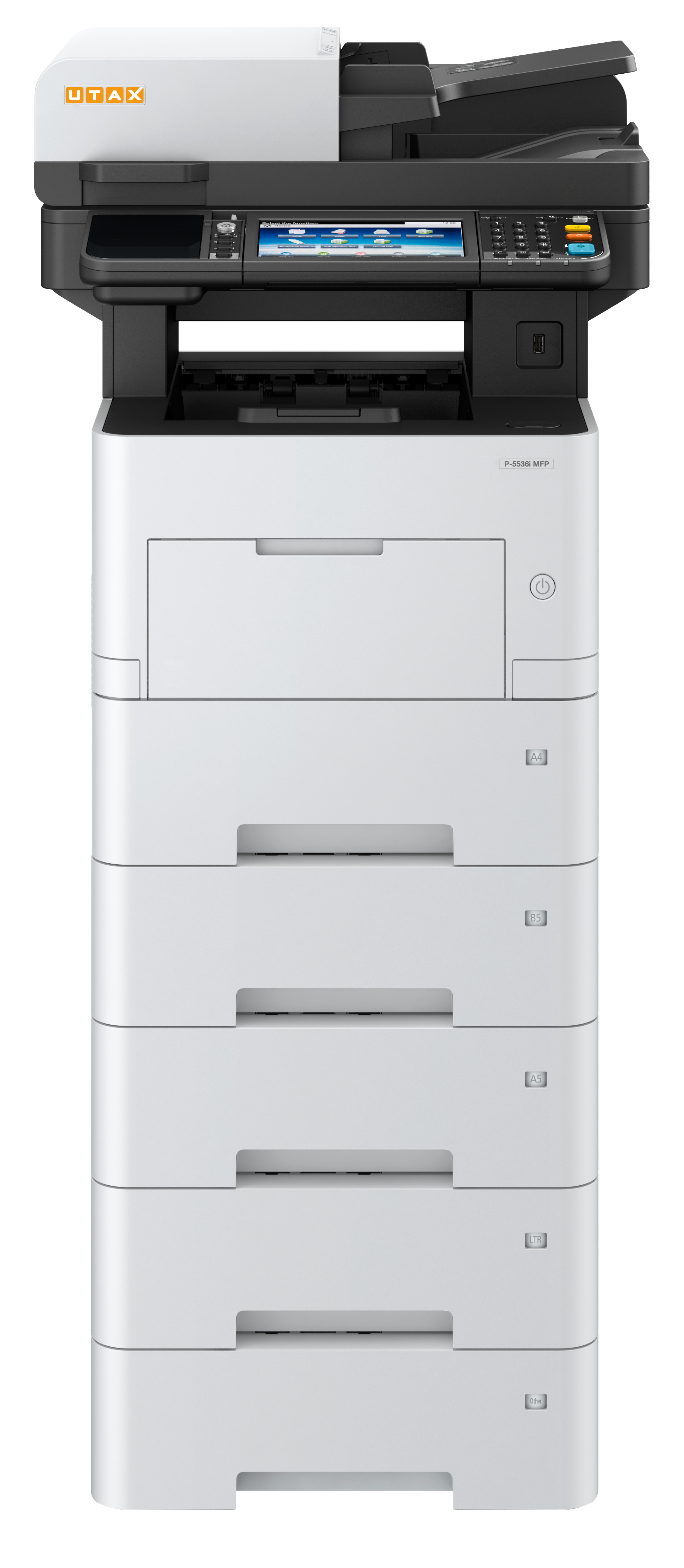

UTAX P-5536i MFP
multifunzione b/n
Specifiche Tecniche
Type | Desktop |
---|
Function | Copy, print, scan, fax |
---|
Print technology | Laser b/w |
---|
Original feeder | 100 sheet dual-scan original feeder, A6R-A4, 50-120 g/m² (simplex/duplex) |
---|
Copy/print speed | max 55 A4 pages/min, duplex: max 39.5 A4 pages/min |
---|
1st page | 4.9/8 seconds* (print/copy) |
---|
Warm-up time | 25 seconds |
---|
Copy resolution | 600 x 600 dpi |
---|
Greyscales | 256 |
---|
Paper feed | 1 x 500 sheet universal cassette (A6R-A4, min 70 x 148 mm, max 216 x 356 mm), 100 sheet multi-bypass (A6R-A4, min 70 x 148 mm, max 216 x 356 mm) |
---|
Paper weights | Cassette 60-120 g/m2, multi-bypass 60-220 g/m2, duplex 60-120 g/m2, Banner: max. 915 mm length |
---|
Paper output | 500 sheet A4 |
---|
System memory | 1 GB RAM, (max 3 GB RAM), HD-6 (32 GB)/HD-7 (128 GB) SSD** |
---|
Continuous copy | 1-999 copies |
---|
Zoom | 25 %-400 % in 1 % steps |
---|
Functions | Adjustable touch screen (7 inch), duplex, job reservation, favorites ( job programs), ID card copy, Scan Once – Copy Many, conitnuous copy, N-up, quiet mode (half speed mode), 100 management codes |
---|
Dimensions/weight | 590 mm x 480 mm x 495 mm (H x W x D), approx. 24.1 kg |
---|
Environment |
---|
Mains voltage | 220/240 V, 50 Hz |
---|
Power consumption | approx. 1,271 W max, approx. 711 W in operation, approx. 54 W in stand-by mode, approx. 0.5 W in sleep mode, TEC value: 2.9 KWh/week |
---|
Noise level | approx. 54,7 dB(A) in operation,approx. 25,8 dB(A) in stand-by mode (ISO 7779/9296) |
---|
Safety | GS/TÜV, CE |
---|
Printing |
---|
Print formats | A6R-A4 |
---|
Print resolution | 1,200 x 1,200 dpi |
---|
Processor | ARM Cortex-A9, 1.2 GHz |
---|
Interfaces | USB 2.0, 10/100/1000BaseTX, USB host |
---|
Network protocols | TCP/IP, Net BEUI |
---|
Operating systems | Windows 7/8/8.1/10, Server 2008 R2/2012 R2/2016, Novell NetWare**, Linux, Mac ex OS 10.5 |
---|
Emulations | PCL6 (PCl 5e/c, XL), KPDL 3 (Postscript 3 compatible), PRESCRIBE IIe, Line Printer, IBM Proprinter X24E, Epson LQ-850, PDF-1.7, XPS, Open XPS |
---|
Functions | USB direct printing, printing of e-mails, barcode printing, private printing (with additional memory), WSD-/internet printing, Mobile Print/Apple AirPrint**, Google Cloud Print, Wi-Fi** |
---|
Scanning |
---|
Scan technology | CCD colour and b/w |
---|
Scan format | max A4 |
---|
Scan speed | b/w: max 60/100 A4 pages/min (simplex/duplex), colour: max 40/64 A4 pages/min (simplex/duplex) at 300 dpi |
---|
Scan resolution | 600 x 600 dpi |
---|
File types | TIFF, JPEG, PDF, PDF/A-1a, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, Open XPS, MS Office/durchsuchbares PDF** |
---|
Interfaces | 10/100/1000BaseTX, USB 2.0 |
---|
Network protocols | TCP/IP |
---|
Operating systems | Windwos 7/8/8.1/10, Server 2008 R2/2012 R2/2016 |
---|
Functions | Scan to SMB, scan to e-mail, scan to FTP, TWAIN-scan, scan to USB, WSD-scan, SMTP Authentifizierung, LDAP |
---|
Fax system |
---|
Type | Integrated within the system |
---|
Compatibility | Super G3 |
---|
Original format | max A4 |
---|
Modem speed | 33.6 kbps |
---|
Transmission speed | 3 sec. or less using JBIG |
---|
Compression method | JBIG, MMR, MR, MH |
---|
Fax resolution | Standard (200 x 100 dpi), fine (200 x 200 dpi), superfine (200 x 400 dpi), ultrafine (400 x 400 dpi) |
---|
Fax memory | 8 MB (3.5 MB image memory) |
---|
Abbreviated dials | 200 numbers |
---|
One-touch dials | 100 numbers |
---|
Group dials | 50 numbers |
---|
Operating systems | Windwos 7/8/8.1/10, Server 2008 R2/2012 R2/2016 |
---|
Functions | Network fax driver, automatic redialling, delayed transmission |
---|
*depending on operating status |
---|
**optional |
---|
