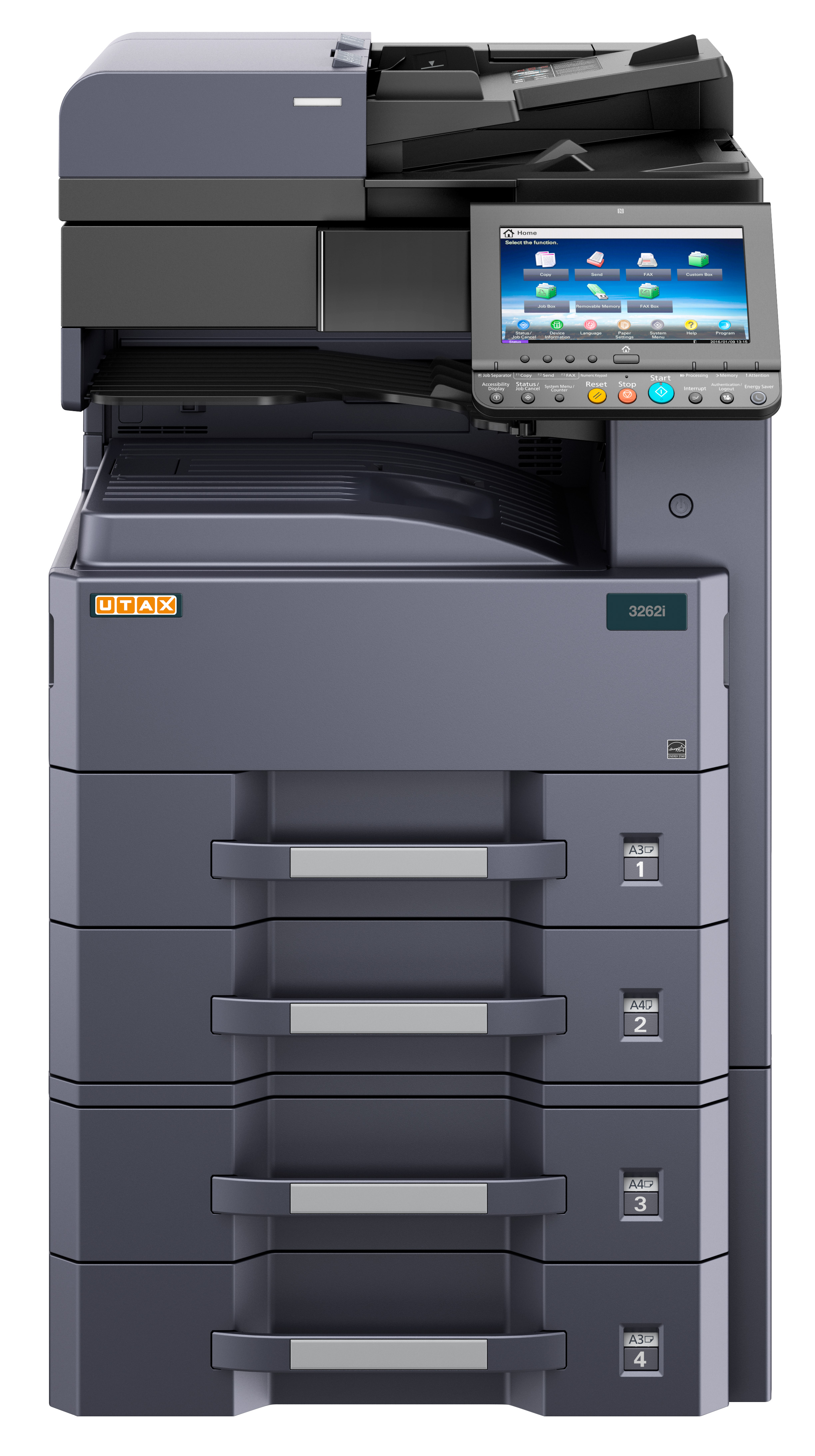

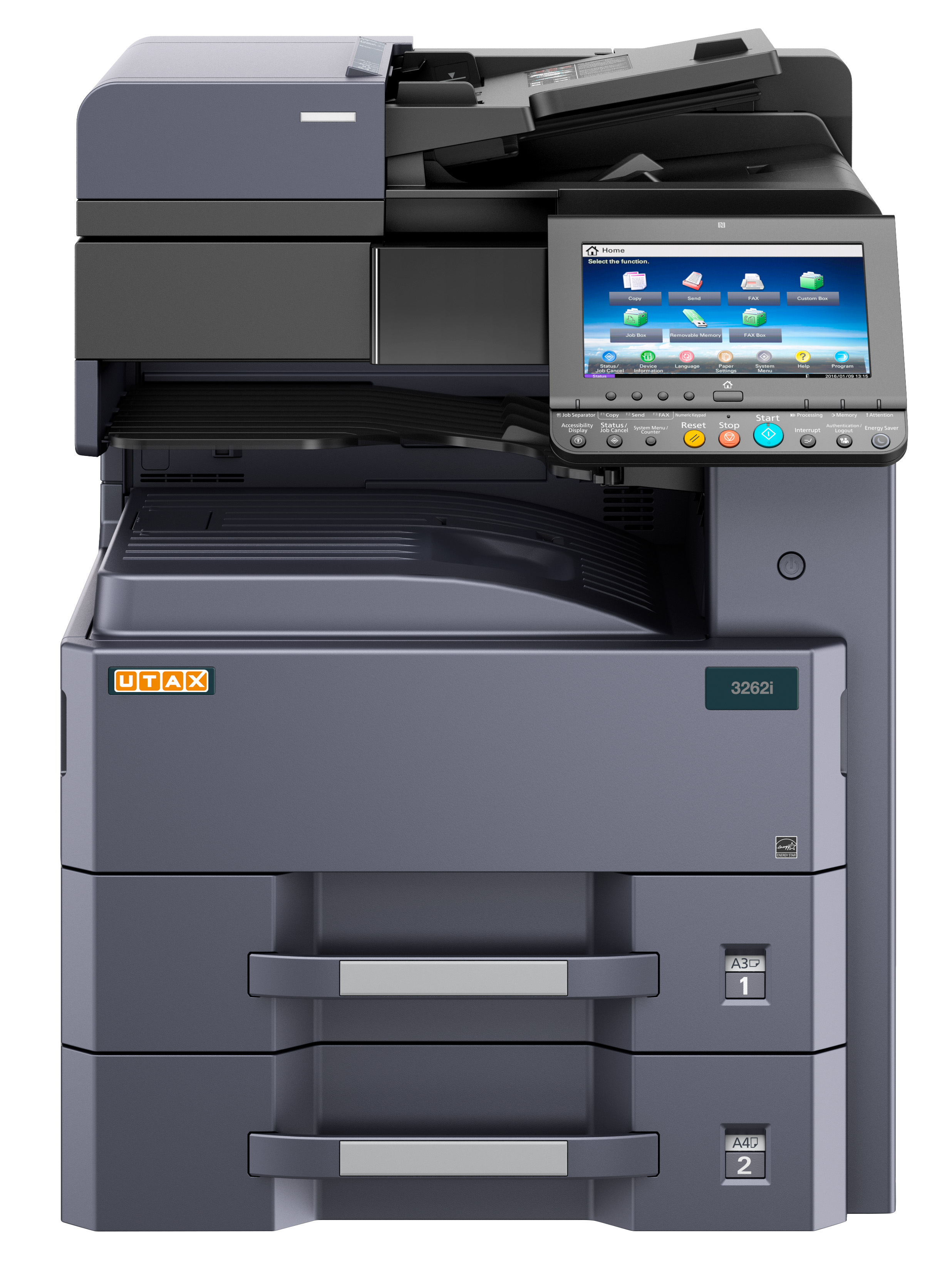

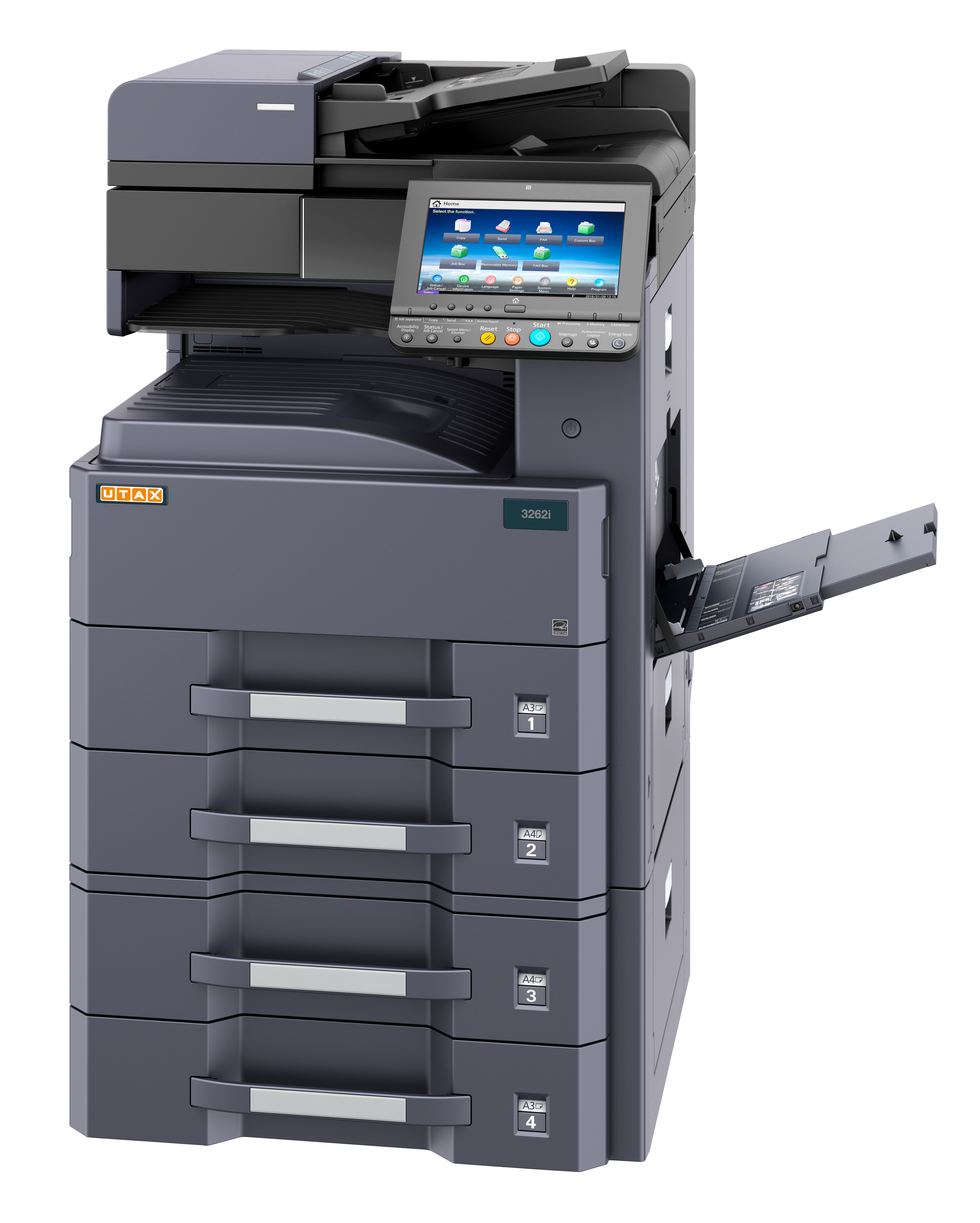

UTAX 3262i/4062i MFP
[3262i]Multifunzione copia/stampa/Scanner
Specifiche Tecniche
Type |
Desktop
|
|
Function |
Copy
print
scan
optional: fax
|
|
Print technology |
Laser b/w
|
|
Original format |
max A3 from platen glass
|
|
Print speed (A4, Simplex) B/W |
32
|
|
Print speed (A3, Simplex) B/W |
17
|
|
Copy speed (A4, Simplex) B/W |
32
|
|
Copy speed (A3, Simplex) B/W |
17
|
|
1st page (printing, b/w) |
4.9
|
|
1st page (copying, b/w) |
4.3
|
|
Warm-up time |
18
|
|
Copy resolution |
600 x 600 dpi
|
|
Greyscales |
256
|
|
Paper feed (Universal cassettes amount) |
2 x 500 sheet universal cassettes
|
|
Paper feed (1st cassette types) |
A5R-A3
|
|
Paper feed (2nd cassette types) |
A5R-A3
|
|
Paper feed (Multi-Bypass amount) |
100 sheet multi-bypass (A6R-A3)
|
|
Paper feed (Multi-Bypass types) |
A6R-A3
|
|
Paper weights (Universal cassette min) |
60
|
|
Paper weights (Universal cassette max) |
163
|
|
Paper weights (Multi-Bypass min) |
45
|
|
Paper weights (Multi-Bypass max) |
256
|
|
Paper weights (Duplex min) |
60
|
|
Paper weights (Duplex max) |
160
|
|
Paper output |
250 sheet A4
|
|
Job Separator |
50 sheet A4 (standard)
|
|
System memory (RAM) |
2
|
|
System memory (SSD) |
32
|
|
System memory (Optional) |
320 GB HDD
|
|
Continuous copying (min) |
1
|
|
Continuous copying (max) |
999
|
|
Zoom (min) |
25
|
|
Zoom (max) |
400
|
|
Zoom (step) |
1
|
|
Functions |
Touch screen
duplex
1000 management codes
skip blank pages
etc.
|
|
Dimensions (height) |
683
|
|
Dimensions (width) |
594
|
|
Dimensions (depth) |
696
|
|
Weight |
59
|
|
Mains voltage |
220/240 V
|
|
Utility frequency |
50/60 Hz
|
|
Power consumption (max) |
1620
|
|
Power consumption (busy) |
510
|
|
Power consumption (standby) |
100
|
|
Power consumption (sleep) |
1
|
|
Power consumption (TEC) |
0.45
|
|
Safety |
GS/TÜV
CE
|
|
Type |
Integrated within the system
|
|
Print format |
A6R-A3
|
|
Print resolution (min) |
1,200 x 1,200 dpi
|
|
Print resolution (max) |
9,600 x 600 dpi Level
|
|
Processor |
Freescale QorIQ T1024 (Dual Core) 1.0 GHz
|
|
Interfaces |
USB 2.0
10/100/1000BaseTX
USB host
NFC
|
|
Network protocols |
TCP/IP
Net BEUI
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Novell NetWare
Linux
Mac ex OS 10.5
|
|
Emulations |
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
XPS
PDF 1.7
PRESCRIBE Ile
|
|
Functions |
USB direct printing
PDF/XPS direct printing
printing of e-mails
private printing
barcode printing
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
|
|
Scan type |
CCD colour and b/w
|
|
Scan format |
max A3
|
|
Scan speed (Feeder 1, simplex, colour) |
80
|
|
Scan speed (Feeder 1, simplex, b/w) |
80
|
|
Scan speed (Feeder 1, duplex, colour) |
160
|
|
Scan speed (Feeder 1, duplex, b/w) |
160
|
|
Optional feeder 1 |
DP-7110
|
|
Scan resolution |
200 dpi
300 dpi
400 dpi
600 dpi
|
|
Scan mode |
text
photo/text
optimised for OCR
|
|
File types |
TIFF
JPEG
PDF
PDF/A
high compression PDF
encrypted PDF
XPS
OpenXPS
|
|
Interfaces |
10/100/1000BaseTX
|
|
Network protocol |
TCP/IP
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
|
|
Functions |
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
|
|
Type |
optional Fax System 12
|
|
Compatibility |
Super G3
|
|
Original format |
max A3
|
|
Modem speed |
33.6
|
|
Transmission speed |
3 seconds or less using JBIG
|
|
Compression method |
JBIG
MMR
MR
MH
|
|
Fax resolution |
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
600 x 600 dpi
|
|
Fax memory |
170
|
|
Abbreviated dial |
2000
|
|
One touch dial |
1000
|
|
Group dial |
500
|
|
Operating systems |
Windows 7
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
|
|
Functions |
Network fax driver
automatic redialling
delayed transmission
max 2 fax kits for parallel transmission and reception
|
|
Original feeder |
DP-7100 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35-160 g/m²)
DP-7120 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²)
DP-7110 document processor with simultaneous duplex scanning (A6R-A3, capacity: 270 sheet A4, paper weight 35-220 g/m²)
|
|
Original platen cover |
Platen cover type E (if document processor is not installed)
|
|

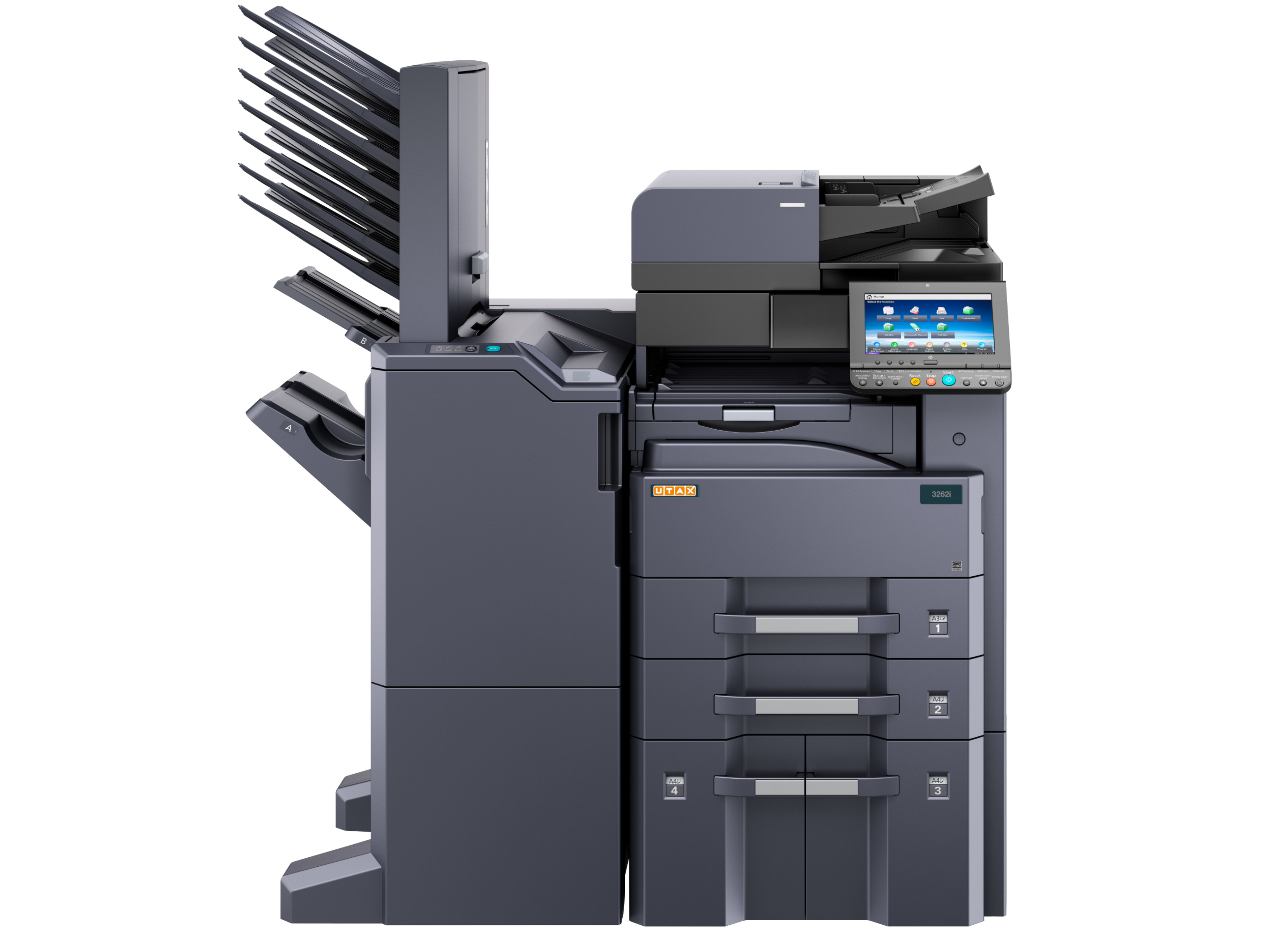

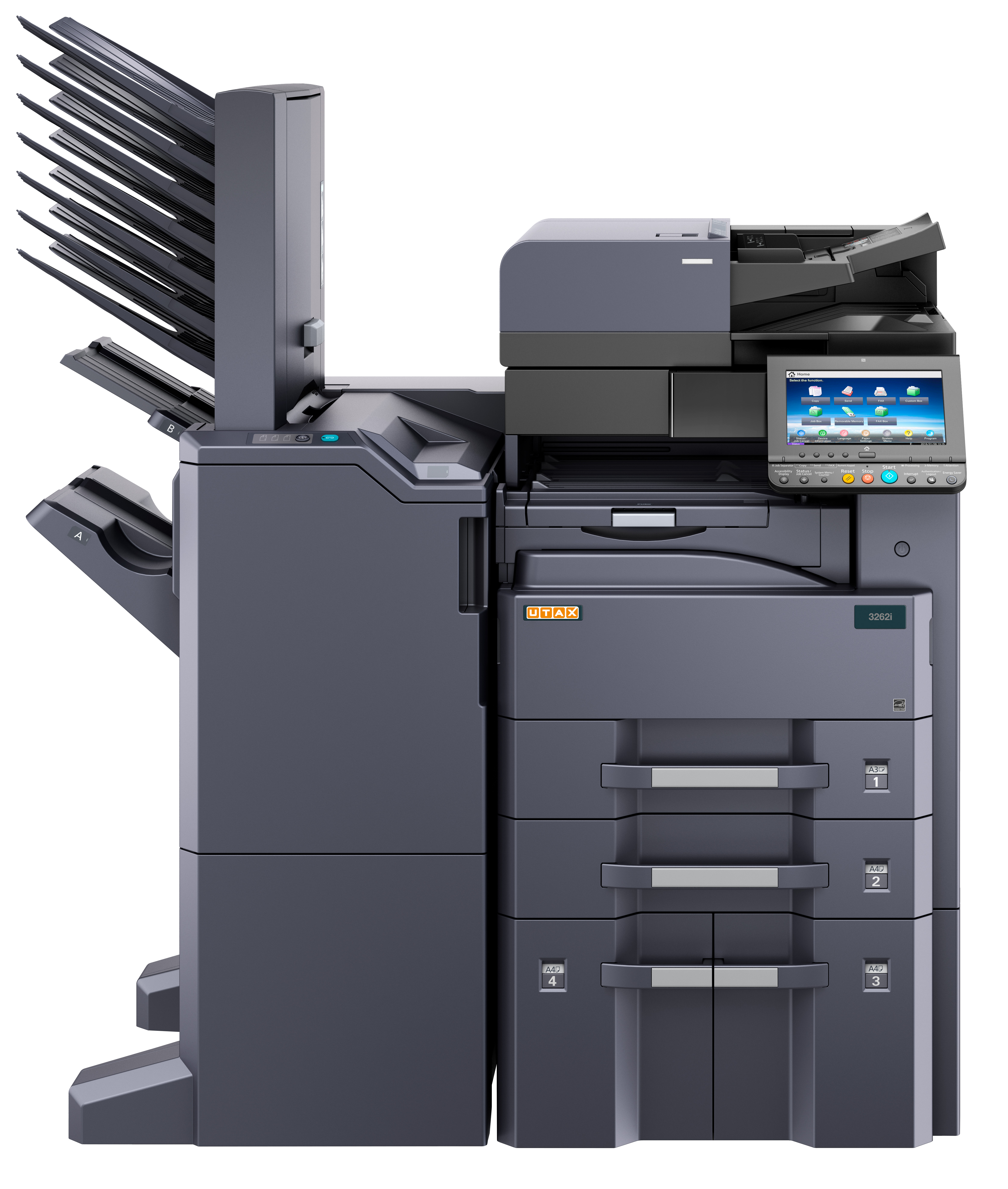

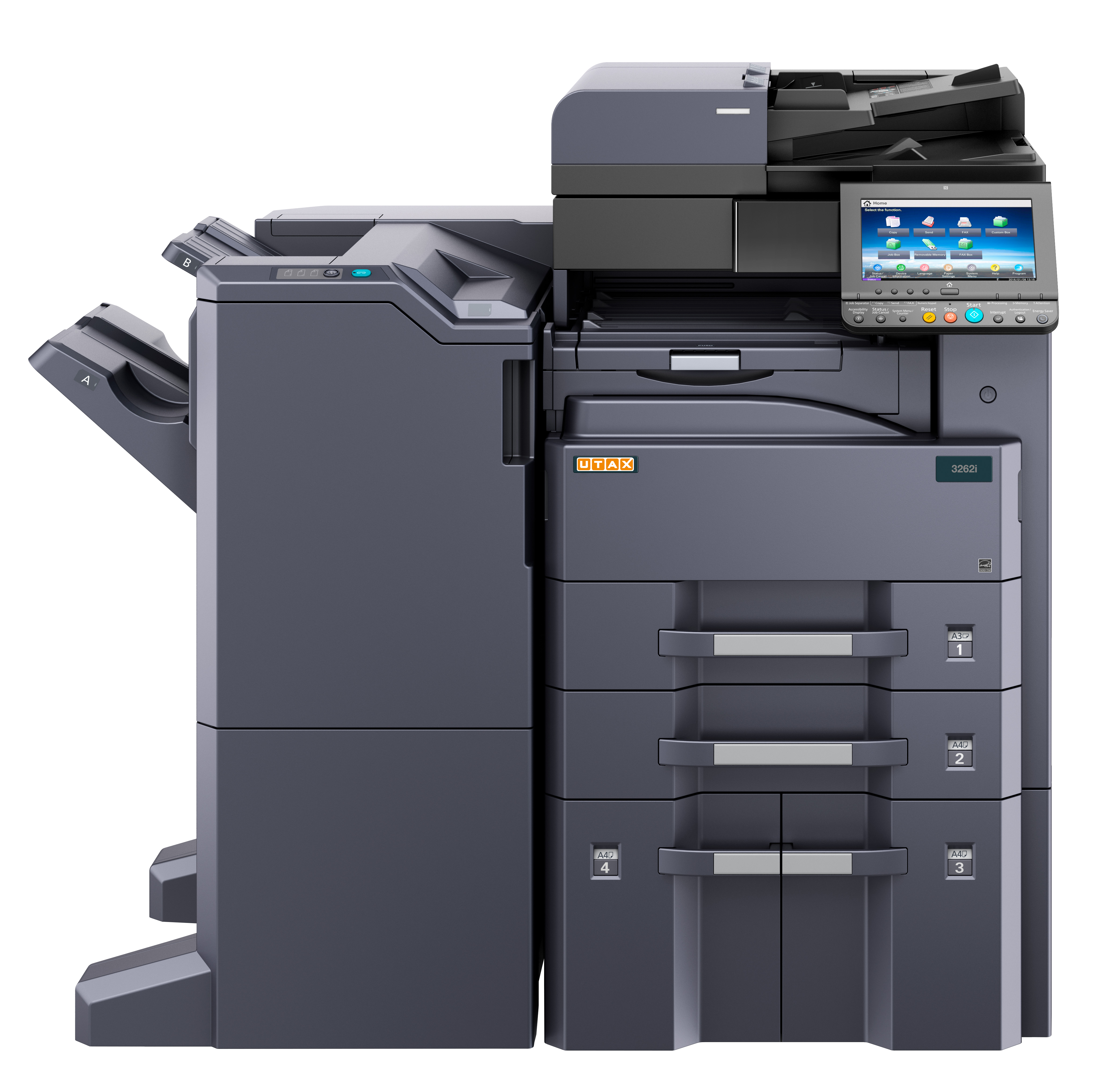

Finisher |
DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),
DF-791 (capacity: 3,000 sheet A4, stapling max 65 sheet A4)
PH-7C hole punch unit for DF-7120/DF-791
MT-730 (B) multi tray for DF-791
|
|
Paper feed |
PF-791 (2 x 500 sheet universal cassettes [A5R-A3])
PF-810 (2 x 1,500 sheet large capacity cassette [A4])
|
|
Other options |
Scan extension kit (A)
Data security kit (E)
Internet fax kit (A)
Card authentication kit (B)
Keyboard holder 10
UG-33 ThinPrint® kit
UG-34 Emulation option kit
IB-50 Gigabit Ethernet card
IB-51 WLAN card
DT-730(B) Document tray
NK-7100 Numeric Keyboard (10 keys)
HD-12 (320 GB HDD)
cabinet no. 70
|
