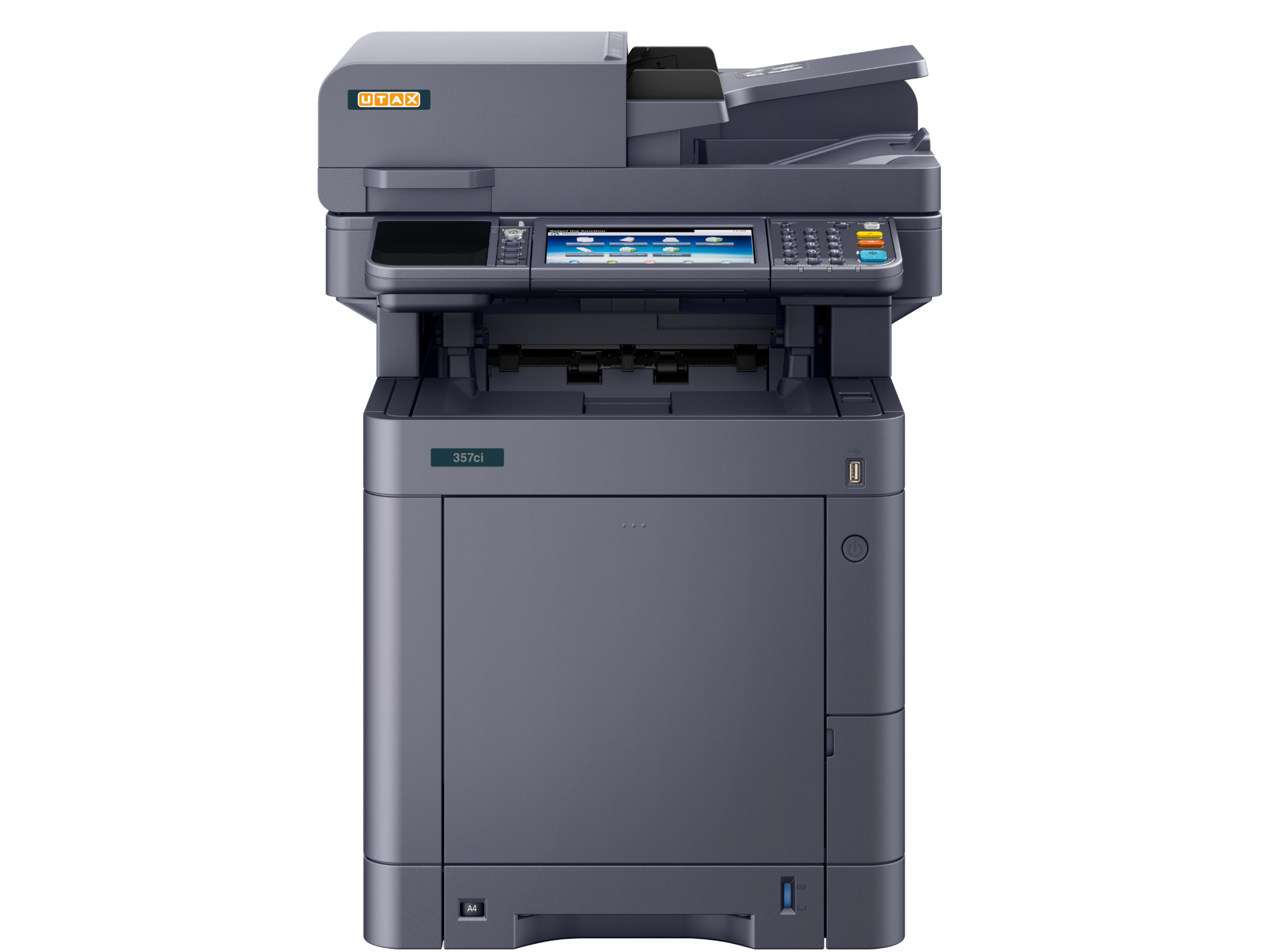

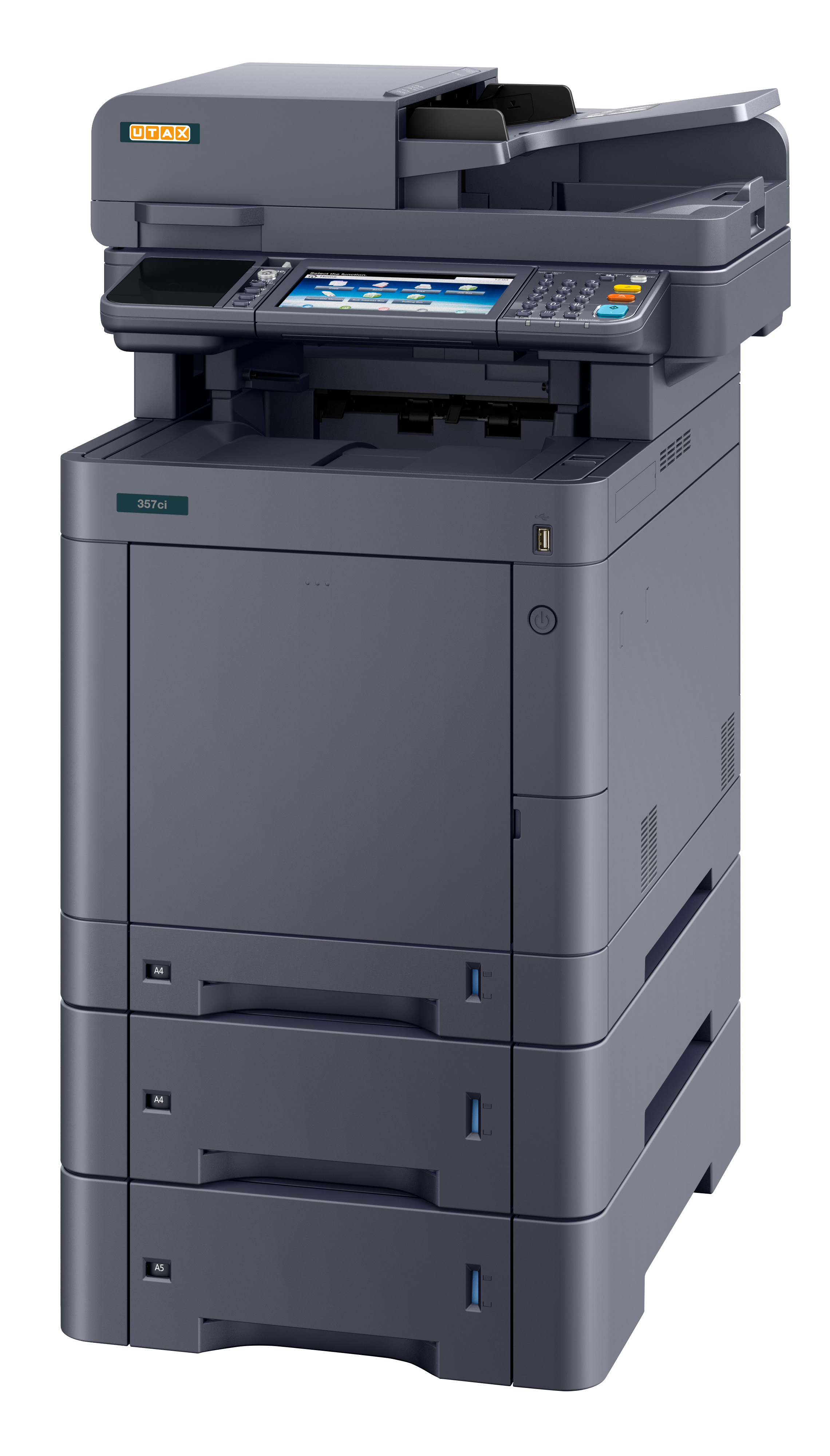

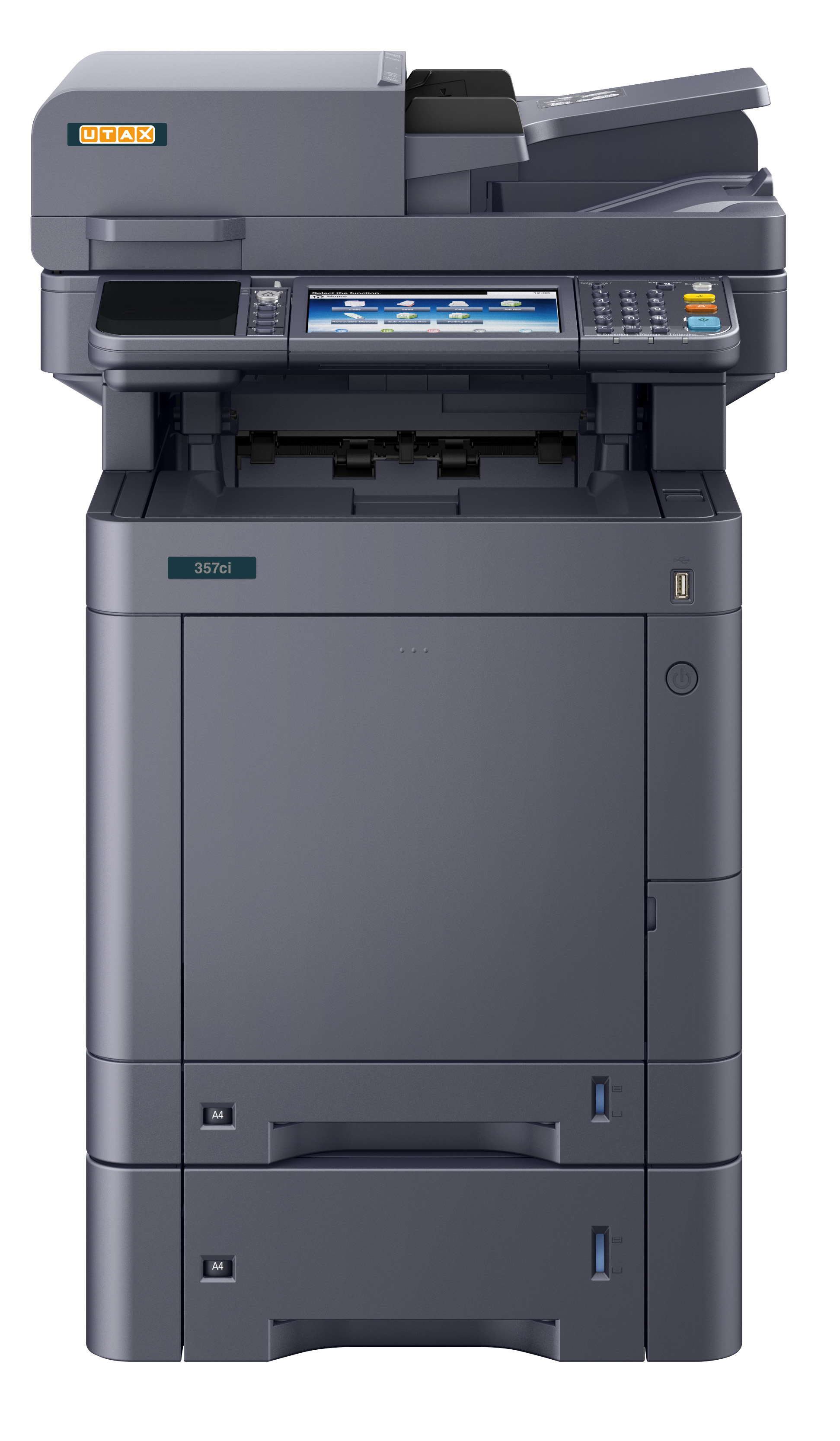

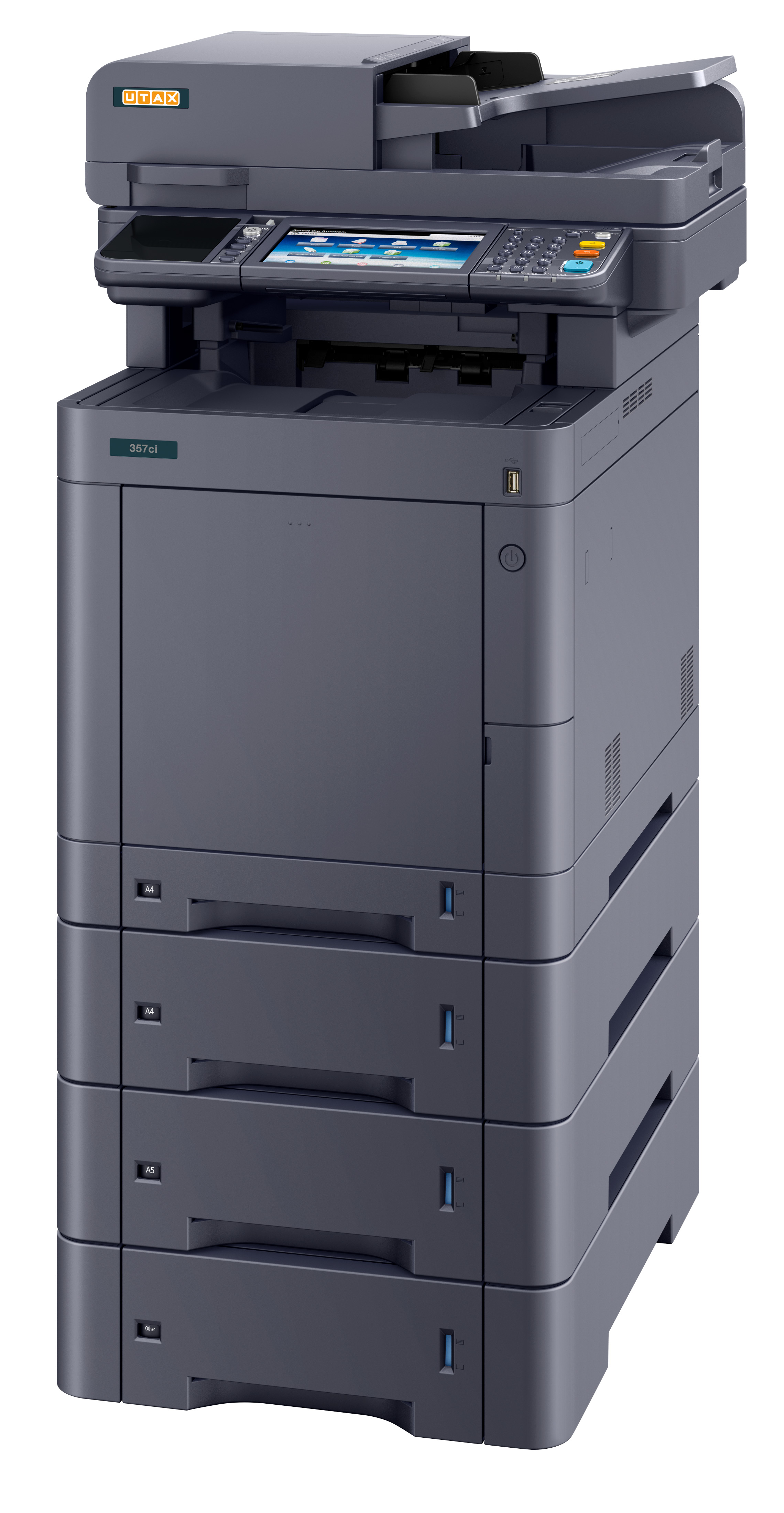

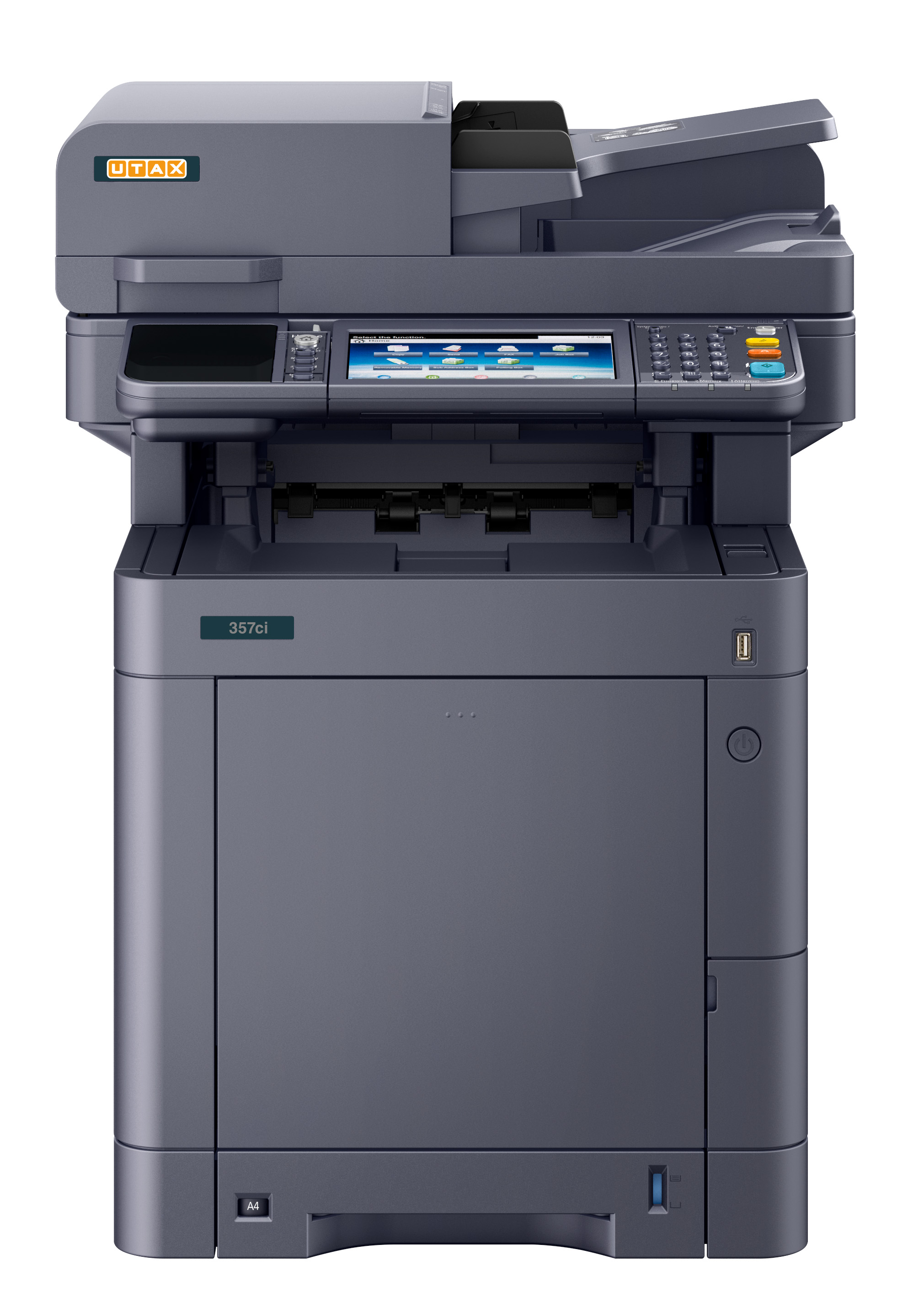

UTAX 357ci

UTAX 357ci « Back UTAX 357ci Multifunzione A4 a colori, scanner,fax,, ottimo finisher . Sorprendentemente silenzioso ed ecocompatibile. Specifiche Tecniche Brochures Immagini Driver Certificati Tutti i files Specifiche Tecniche General Type Desktop Functions Copy, Print, Scan, Fax Print technology Laser colour & mono Original format max A4 from platen glass Original feeder 100 sheet A4 (standard dual scan feeder), A6R-A4, 50-120 g/m² (simplex/duplex), banner: max 915 mm length, A4 width Copy/print speed max 35 A4 pages/min in colour and b/w, duplex: max 17 A4 pages in colour and b/w First page Copy Colour: 8.5 seconds*, mono: 7 seconds* First page Print Colour: 7.5 seconds*, mono: 6 seconds* Warm-up time 25 seconds* Copy resolution max 600 x 600 dpi Greyscales 256 Paper feed 1 x 250 sheet universal cassette (A6R-A4), 100 sheet multi-bypass (A6R-A4, min 70 x 148 mm, max 216 x 356 mm) paper weight Universal cassette 60-163 g/m², multi bypass 60-220 g/m², duplex 60-163 g/m² Paper output 250 Sheet A4 System memory 1,024 MB RAM, (max 3,072 MB RAM), 32/128 GB SSD** Continuous copying 1-999 Zoom 25%-400% in 1% steps Functions Colour touch screen (7 inch), duplex, job reservation, programs, ID card copy, continuous scan, N-up, quiet mode (half speed mode), 100 management codes, skip blank pages in copy/scan mode, HyPAS capable, etc. Dimensions/Weight Dimensions 619.5 x 480 x 577 mm (H x W x D) Weight approx. 36.5 kg Environment Mains voltage 220/240 V, 50/60 Hz Power consumption approx. 1,346 W max, approx. 521 W in operation, approx. 84 W in stand-by mode, approx. 0.6 W in sleep-mode, TEC value: 0.49 KWh/week Noise level approx. 50.4 dB(A) in operation (colour), approx. 50.3 dB(A) in operation (b/w), approx. 29.6 dB(A) in stand-by mode Safety GS/TÜV, CE Print System Type Integrated within the system Print formats A6R - A4 Print resolution max 600 x 600 dpi, 1,200 x 1,200 dpi (reduced speed) Processor ARM Cortex-A9 dual core 1.2 GHz and ARM Cortex-M3 100 MHz Interfaces 10/100/1000BaseTX, USB host (2), USB 2.0, SD ,Wi-Fi** Network protocolls TCP/IP, NetBEUI Operating systems Windows 7/8/8.1/10, Server 2008 R2/2012 R2, Server 2016/2019, OS 10.8, Novell NetWare**, Linux Emulations PCL6 (5c, XL), KPDL 3 (PostScript 3 compatible), XPS, PDF 1.7, PRESCRIBE IIc Functions Color Optimizer, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, quiet mode (half speed mode), Mobile Print (Android/iOS), Google Cloud Print, Wi-Fi** Scan System Scan type CCD colour & mono Scanformat max A4 Scan speed mono: max 60/62 A4 images/min (simplex/duplex) with 300 dpi, Colour: max 40/46 A4 images/min (simplex/duplex) with 300 dpi Scan resolution 600 x 600 dpi Scan mode Photo, text, photo/text, optimised for OCR File format TIFF, PDF, PDF/A-1, PDF/A-2, high compression PDF, encrypted PDF, JPEG, XPS, Open XPS, MS Office/textsearchable PDF** Interfaces 10/100/1000BaseTX, USB host Network protocolls TCP/IP Operating systems Windows 7/8/8.1, Server 2008 R2/2012 R2/2016/2019 Functions Scan to SMB, Scan to e-mail, Scan to FTP, Scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP Fax System Compatibility Super G3 Original format max DIN A4 Modem speed 33.6 kbps Transmission speed < 3 seconds with JBIG Compression mode JBIG, MMR, MR, MH Fax resolution max 600 x 600 dpi Fax memory 8 MB (3.5 image memory) Abbreviation dial 200 numbers One touch dial 100 numbers Group dial 50 numbers Operating systems Windows7/8/8.1, Server 2008 R2/2012 R2/2016/2019 Functions Network fax driver, automatic redialling, delayed transmission *Depending on operating status. **optional Brochures Brochure 357ci EnglishBrochure 357ci English Brochure 357ci MultilanguageBrochure 357ci Multilanguage Manuali Immagini PP_UT_357ci_A.jpg PP_UT_357ci_B.jpg PP_UT_357ci_C.jpg PP_UT_357ci_D.jpg Certificato Declaration of Conformity File size: 0.2 MBDE_EN_CONF_356ci_357ci_UT_Rev_2.pdfRoHS Declaration of Conformity File size: 0.1 MBDE_EN_CONF_RoHS_357ci_Rev_1.pdf Drivers FAX-DRIVERWindows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Version: 6.3.5224 Date: 29-01-2020File size: 21.5 MBFAXDriver_357ci_20200116.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Classic Post Script Driver [KPDL Driver] German, English, French, Italian, Portuguese, Spain Version: 8.1710 13-01-2020File size: 0.6 MBKPDLDriver_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 PCL Driver [Mini Driver] Version: 1.13 Date: 13-01-2020File size: 0.1 MBPCL_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Generic Driver Set [KX / KPDL / PCL Generic] German, English, French, Italian, Portuguese, Spain Version: 13-01-2020 File size: 31.7 MBGenericDriverSet_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 KX Universal PCL / Post Script Driver Version: 7.5.0814 Microsoft certified Date: 13-01-2020File size: 38.6 MBKXDriver_357ci_20200109.zipPRINT-DRIVERLinux PPD Linux Driver Bundle Date: 26-02-2020File size: 91.6 MBLinux-Driver-357ci-20200113.002.zipPRINT-DRIVERWindows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019 KX Universal PCL / Post Script Driver Version: 8.0.1329 Microsoft certified Date: 18-02-2020File size: 74.4 MBKXDriver_cCC_cLP_V801329_PrDr20200218.zip.zip Utilities Tutti i files Declaration of Conformity File size: 0.2 MBDE_EN_CONF_356ci_357ci_UT_Rev_2.pdfFAX-DRIVERWindows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Version: 6.3.5224 Date: 29-01-2020File size: 21.5 MBFAXDriver_357ci_20200116.zipInstruction Handbook English Fax356ci / 357ci File size: 4.3 MBEN_IH_356ci_357ci_Fax_UT_REV_1.pdfInstruction Handbook English356ci / 357ci File size: 15.7 MBEN_IH_356ci_357ci_UT_REV_1.pdfInstruction Handbook Italian Fax356ci / 357ci File size: 4.5 MBIT_IH_356ci_357ci_Fax_UT_REV_1.pdfInstruction Handbook Italian356ci / 357ci File size: 19.5 MBIT_IH_356ci_357ci_UT_REV_1.pdfPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Classic Post Script Driver [KPDL Driver] German, English, French, Italian, Portuguese, Spain Version: 8.1710 13-01-2020File size: 0.6 MBKPDLDriver_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 PCL Driver [Mini Driver] Version: 1.13 Date: 13-01-2020File size: 0.1 MBPCL_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 Generic Driver Set [KX / KPDL / PCL Generic] German, English, French, Italian, Portuguese, Spain Version: 13-01-2020 File size: 31.7 MBGenericDriverSet_357ci_20200109.zipPRINT-DRIVER Windows Vista, Windows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 KX Universal PCL / Post Script Driver Version: 7.5.0814 Microsoft certified Date: 13-01-2020File size: 38.6 MBKXDriver_357ci_20200109.zipPRINT-DRIVERLinux PPD Linux Driver Bundle Date: 26-02-2020File size: 91.6 MBLinux-Driver-357ci-20200113.002.zipPRINT-DRIVERWindows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019 KX Universal PCL / Post Script Driver Version: 8.0.1329 Microsoft certified Date: 18-02-2020File size: 74.4 MBKXDriver_cCC_cLP_V801329_PrDr20200218.zip.zipProduct overview January 2021 EnglishP-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2507ci / 302ci / 3207ci / 3262i / 352ci / 357ci / 4007ci / 402ci / 4062i / 5007ci / 502ci / 5057i / 6007ci / 6057i / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFPFile size: 6.2 MBEN_BC_UT_PU_A4_01_2021.pdfProduct overview January 2021 ItalianP-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2507ci / 302ci / 3207ci / 3262i / 352ci / 357ci / 4007ci / 402ci / 4062i / 5007ci / 502ci / 5057i / 6007ci / 6057i / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFPFile size: 6.2 MBIT_BC_UT_PU_A4_01_2021.pdfProduktbild / product picture 300 dpi357ci File size: 0.8 MBPP_UT_357ci_B.jpgProduktbild / product picture 300 dpi357ci File size: 0.7 MBPP_UT_357ci_A.jpgProduktbild / product picture 300 dpi357ci File size: 1.0 MBPP_UT_357ci_D.jpgProduktbild / product picture 300 dpi357ci File size: 0.9 MBPP_UT_357ci_C.jpgQuickGuide Short Instruction English P-4531i-5536 MFP, P-C3062i-3566i MFP, 357ci357ci / P-4531i MFP / P-4536i MFP / P-5536i MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP File size: 0.9 MBQG_P-4531i-5536i MFP_P-C3062i_3566i MFP_357ci_UT_UK.pdfQuickGuide Short Instruction English P-C3062i-3566i MFP_357ci_P-4531i-6036i MFP File size: 0.9 MBEN_QG_P-4531i-5536i MFP_P-C3062i-3566i MFP_357ci_TA.pdfRoHS Declaration of Conformity File size: 0.1 MBDE_EN_CONF_RoHS_357ci_Rev_1.pdfPrint Utility Network Print Monitor 5x Software + Manual für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019 Version: 5.11.0000 Date: 19-02-2020File size: 133.3 MBPR_NetworkPrintMonitor_357ci_20200219.zipPrint Utility Network Print Monitor 6x Software + Manual für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019 Version: 6.0.1248 Date: 27-05-2020 File size: 118.4 MBPR_NetworkPrintMonitor_V601248_20200526.zip #about-section { padding-top:20px; } #banner { background-position:center top; background-size:70% auto !important; height:20vh; box-sizing:content-box; background-color:#FFF; } #banner .container { max-width:80%; } #panel_controls a { display:inline-block; padding:1%; font-size:1em; color:white; background-color:#FFB775; margin:0px; text-transform:uppercase; } #panel_controls .selected { background-color:#FF7D00; } #toggle_panel { display:block; padding:1%; font-size:1em; color:white; background-color:#FF7D00; margin:0px; } .SingleDownload { border:1px solid #C60; padding:5px; background-color:white; color:#555; margin-bottom:5px; } .SingleDownload p { margin:0px; } .SingleDownload p br { /*display:none;*/ } .DLCdownloadName { font-weight:bold; } .DLClink { display:block; border:1px solid light-gray; background-color:#FF7D00; padding-left:10px; padding-right:10px; border-radius:10px; color:white; clear:both; } .DLClink::before { content: "Download: "; } .DLClink::after { content: "."; } .SingleDownload td { } .SingleDownload th { text-align:left; padding-right:5px; white-space:nowrap; } .SingleDownload th[colspan="2"] { text-align:left; } .product-gallery { text-align:justify; font-size:80%; } .product-gallery:after{content:""; display: inline-block; width: 100%; height: 0;} .product-gallery .thumb { display:inline-block; clear:none; width:30%; border:1px solid white; border-radius:5px; margin-bottom:1%; background-color:white; margin:1%; } .product-gallery .thumb img { width:100%; background-size:contain; background-repeat:no-repeat; background-position:center center; }
