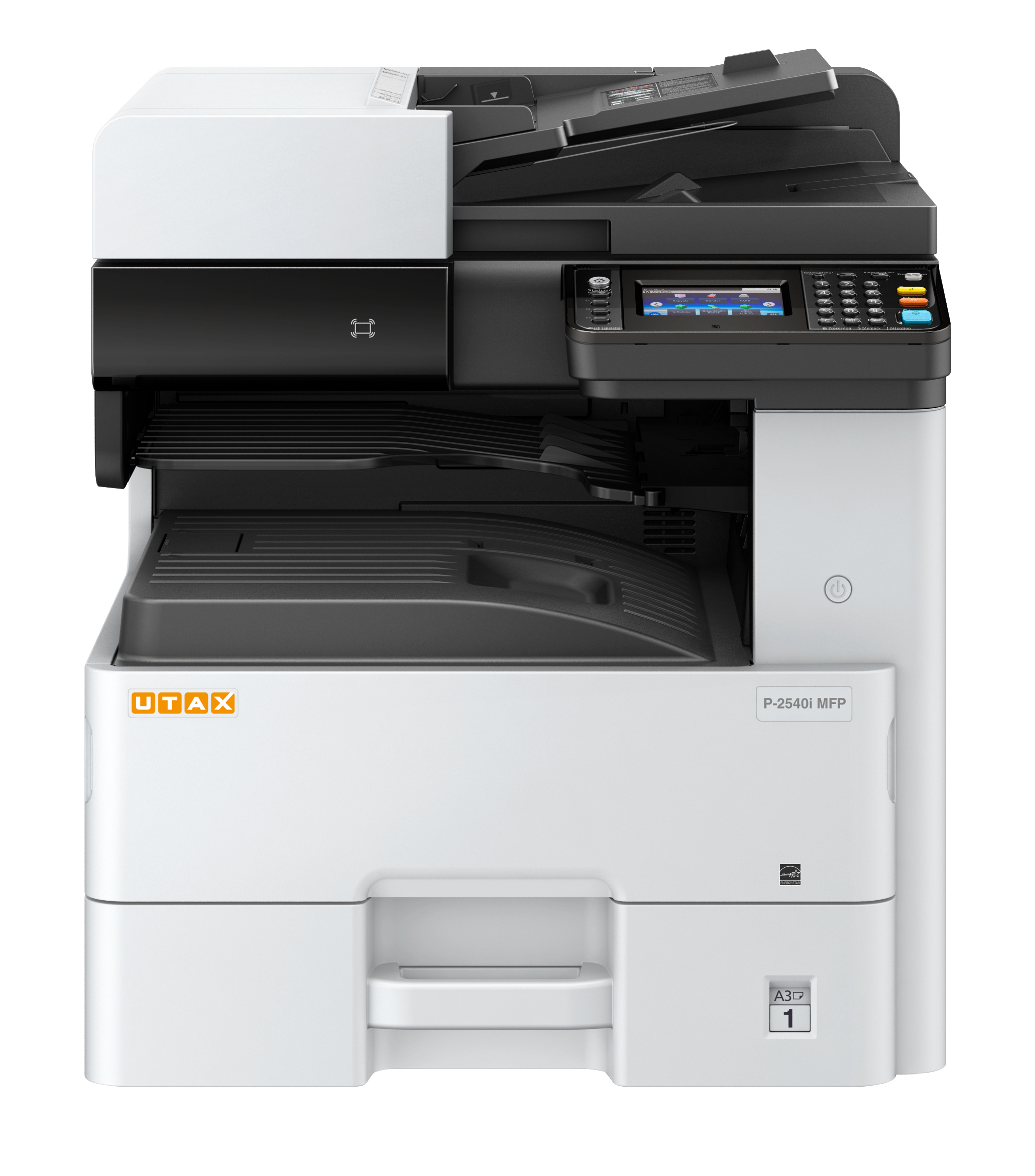

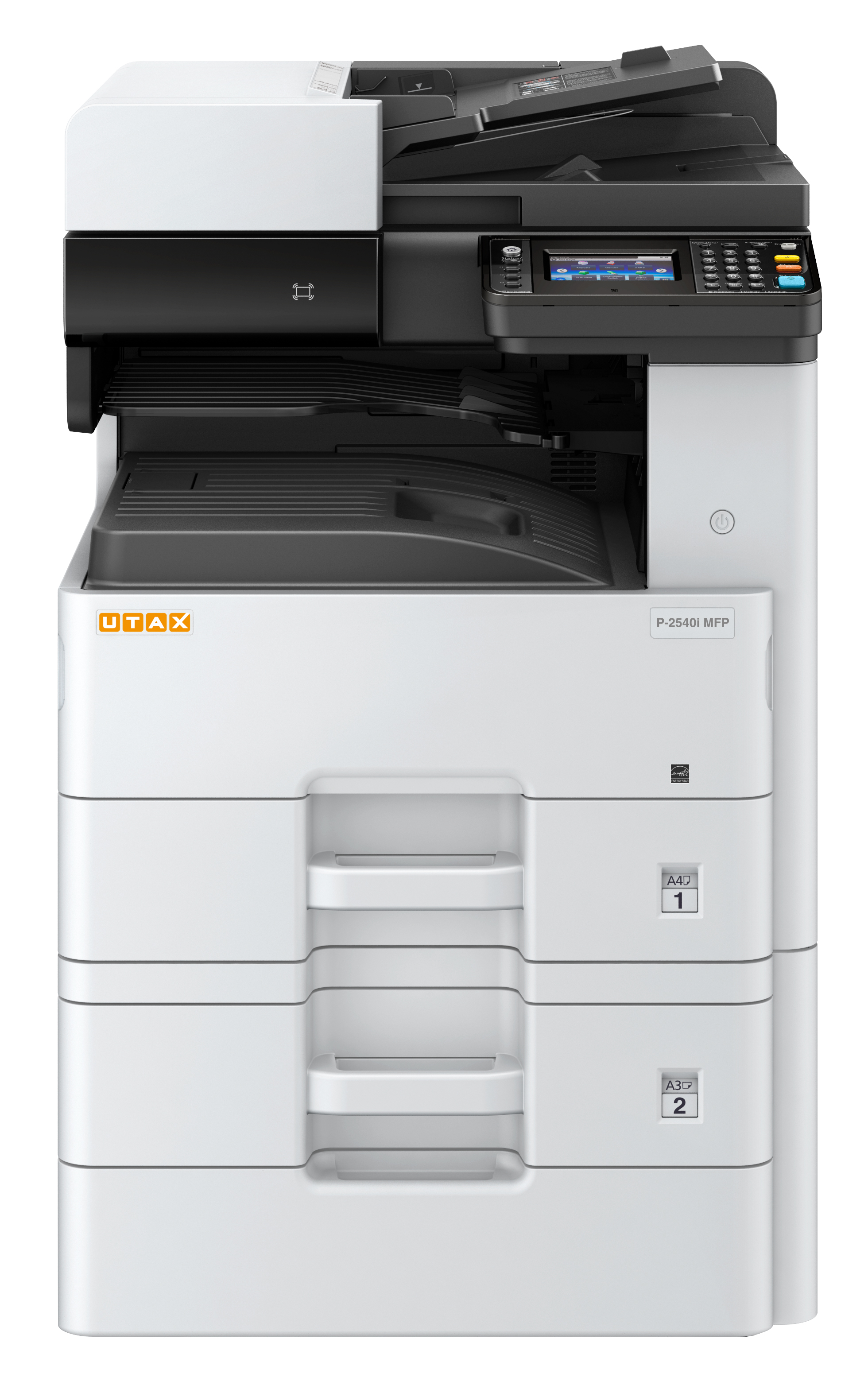

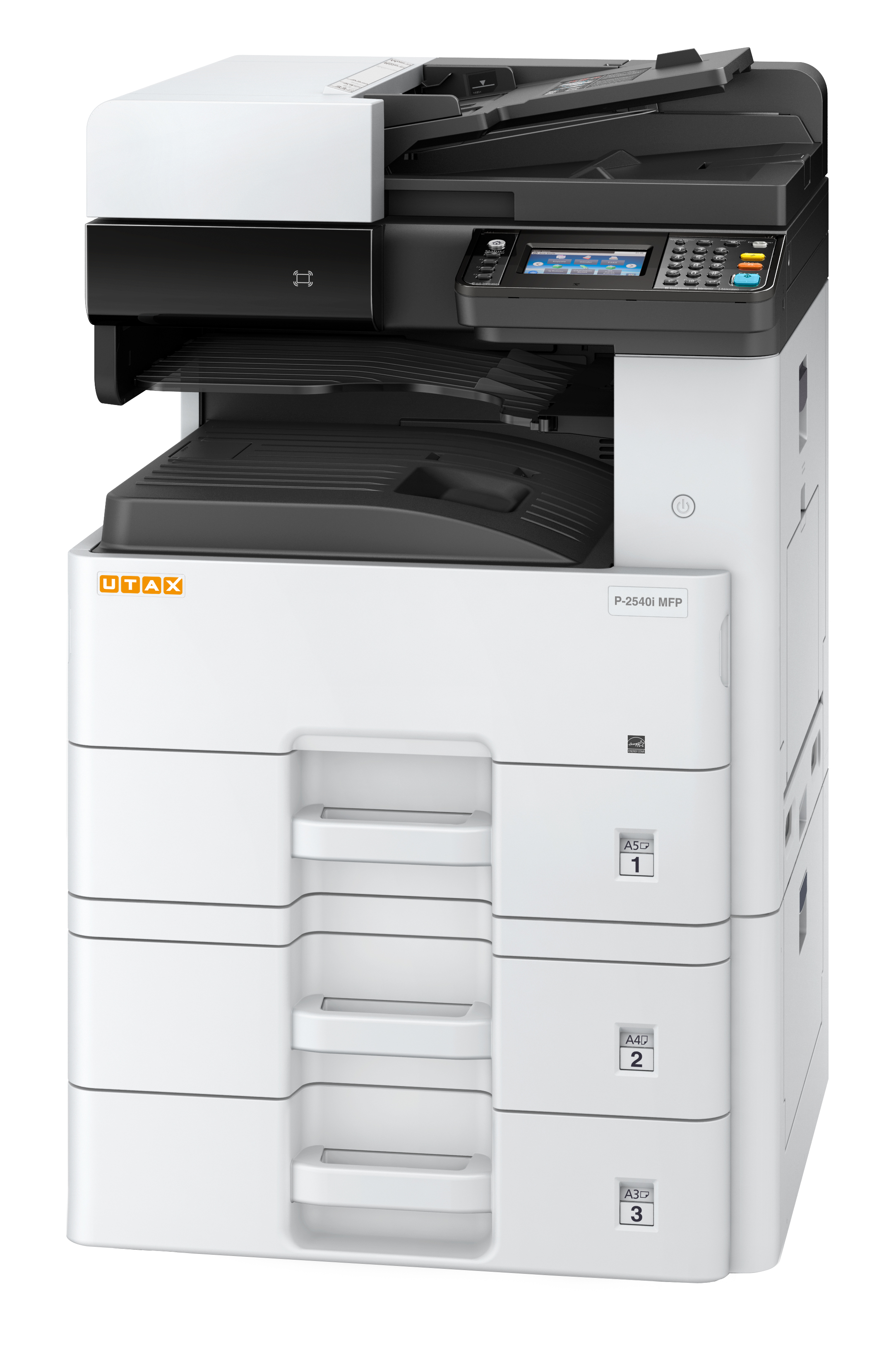

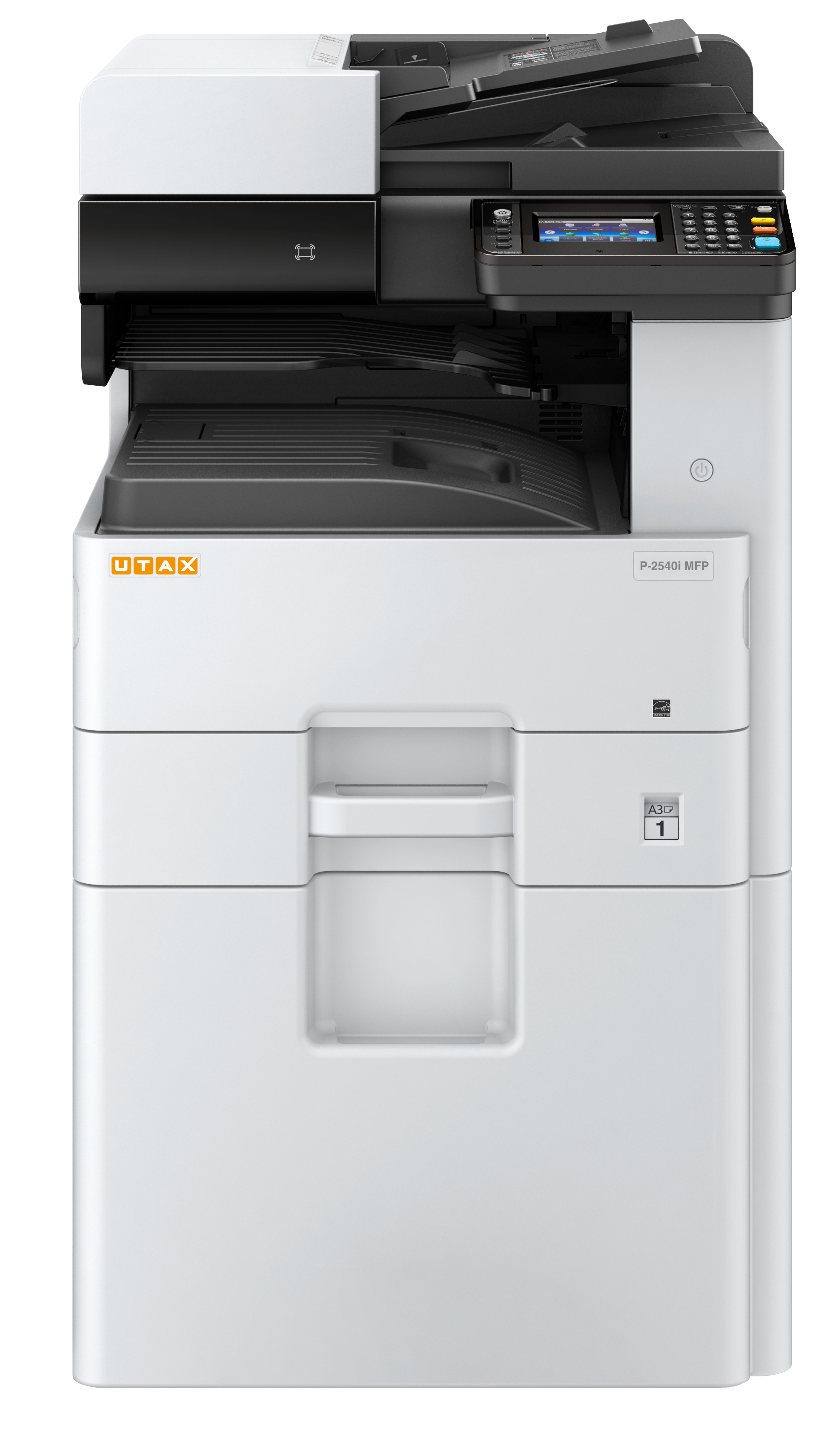

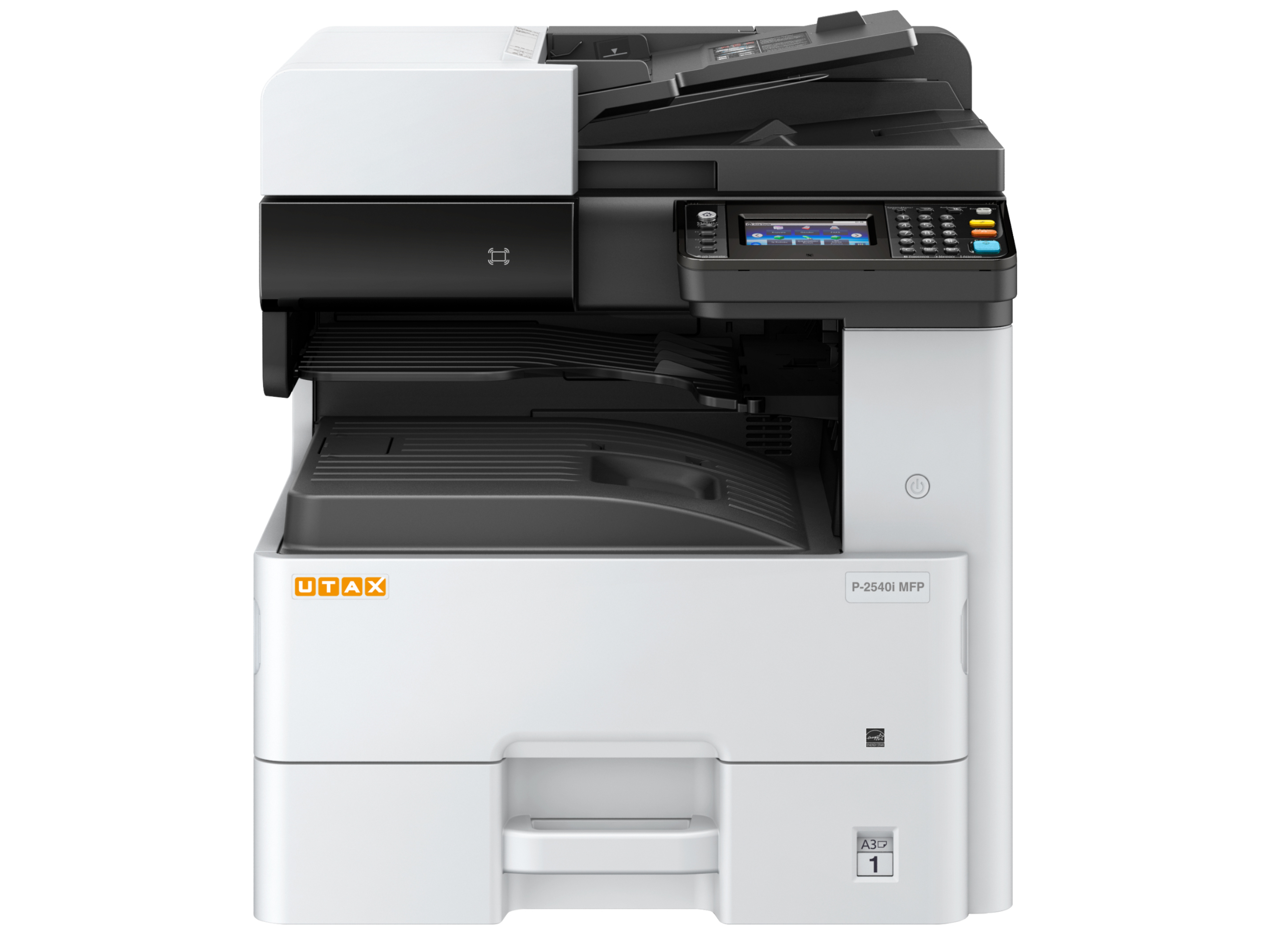

UTAX P-2540i MFP
[P-2540i]Multifunzione copia/stampa/scanner
Specifiche Tecniche
| Type |
Desktop
|
|
| Function |
Copy
print
scan
optional: fax
|
|
| Print technology |
Laser b/w
|
|
| Original format |
max A3 from platen glass
|
|
| Original feeder |
50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex)
|
|
| Print speed (A4, Simplex) B/W |
25
|
|
| Print speed (A3, Simplex) B/W |
12
|
|
| Copy speed (A4, Simplex) B/W |
25
|
|
| Copy speed (A3, Simplex) B/W |
12
|
|
| 1st page (printing, b/w) |
5.8
|
|
| 1st page (copying, b/w) |
5.8
|
|
| Warm-up time |
19.5
|
|
| Copy resolution |
600 x 600 dpi
|
|
| Greyscales |
256
|
|
| Paper feed (Universal cassettes amount) |
1 x 500 sheet
|
|
| Paper feed (1st cassette types) |
A5R-A3
|
|
| Paper feed (Multi-Bypass amount) |
100 sheet multi-bypass (A6R-A3)
|
|
| Paper feed (Multi-Bypass types) |
A6R-A3
|
|
| Paper weights (Universal cassette min) |
60
|
|
| Paper weights (Universal cassette max) |
163
|
|
| Paper weights (Multi-Bypass min) |
45
|
|
| Paper weights (Multi-Bypass max) |
256
|
|
| Paper weights (Duplex min) |
60
|
|
| Paper weights (Duplex max) |
163
|
|
| Paper output |
250 sheet A4
|
|
| Job Separator |
50 sheet A4 (standard)
|
|
| System memory (RAM) |
1
|
|
| System memory (RAM max) |
3
|
|
| System memory (Optional) |
32/128 GB SSD
|
|
| Continuous copying (min) |
1
|
|
| Continuous copying (max) |
999
|
|
| Zoom (min) |
25
|
|
| Zoom (max) |
400
|
|
| Zoom (step) |
1
|
|
| Functions |
Colour touch screen (4.3 inch)
duplex
Print from/Scan to USB Stick
job reservation
N-up
favourites
100 management codes
etc.
|
|
| Dimensions (height) |
688
|
|
| Dimensions (width) |
590
|
|
| Dimensions (depth) |
590
|
|
| Weight |
49
|
|
| Mains voltage |
220/240 V
|
|
| Utility frequency |
50 Hz
|
|
| Power consumption (max) |
1270
|
|
| Power consumption (busy) |
410
|
|
| Power consumption (standby) |
65
|
|
| Power consumption (sleep) |
0.5
|
|
| Power consumption (TEC) |
0.29
|
|
| Noise level (busy, b/w) |
44.9
|
|
| Noise level (standby) | ||
| Safety |
GS/TÜV
CE
|
|
| Type |
Integrated within the system
|
|
| Print format |
A6R-A3
|
|
| Print resolution (max) |
1,200 x 1,200 dpi
|
|
| Processor |
ARM Cortex-A9 Dual core 1.2 GHz
|
|
| Interfaces |
USB 2.0
10/100/1000BaseTX
USB host (2)
NFC
Wi-Fi
|
|
| Network protocols |
TCP/IP
Net BEUI
|
|
| Operating systems |
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2008 R2
Server 2012 R2
Server 2016
Novell NetWare
Linux
Mac ex OS 10.5
|
|
| Emulations |
PCL6 (PCL 5c, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ile
PDF 1.7
XPS
|
|
| Functions |
USB direct printing
printing of e-mails
PDF/XPS direct printing
private printing
barcode printing
Mobile Print (Android/iOS)
Apple AirPrint
Google Cloud Print
Wi-Fi
|
|
| Scan type |
CIS colour and b/w
|
|
| Scan format |
max A3
|
|
| Scan speed (Feeder 1, simplex, colour) |
50
|
|
| Scan speed (Feeder 1, simplex, b/w) |
50
|
|
| Scan speed (Feeder 1, duplex, colour) |
16
|
|
| Scan speed (Feeder 1, duplex, b/w) |
16
|
|
| Scan resolution |
200 dpi
300 dpi
400 dpi
600 dpi
|
|
| Scan mode |
text
photo/text
optimised for OCR
|
|
| File types |
TIFF
PDF
XPS
OpenXPS
high compression PDF
JPEG
|
|
| Interfaces |
10/100/1000BaseTX
USB 2.0
|
|
| Network protocol |
TCP/IP
|
|
| Operating systems |
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2008 R2
Server 2012 R2
Server 2016
|
|
| Functions |
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
|
|
| Type |
optional Fax System 13
|
|
| Compatibility |
Super G3
|
|
| Original format |
max A3
|
|
| Modem speed |
33.6
|
|
| Transmission speed |
3 seconds or less using JBIG
|
|
| Compression method |
JBIG
MMR
MR
MH
|
|
| Fax resolution |
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
|
|
| Fax memory |
16
|
|
| Fax memory (image) |
12
|
|
| Abbreviated dial |
200
|
|
| One touch dial |
100
|
|
| Group dial |
50
|
|
| Operating systems |
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2008 R2
Server 2012 R2
Server 2016
|
|
| Functions |
Network fax driver
automatic redialling
delayed transmission
|
|
| Paper feed |
PF-470 (1 x 500 sheet universal cassettes (A5R-A3))
PF-471 (2 x 500 sheet universal cassettes (A5R-A3))
|
|
| Other options |
Data security kit (E)
Scan extension kit (A)
Card authentication kit (B)
UG-33 ThinPrint® kit
IB-50 Gigabit Ethernet card
IB-36 or IB-51 WLAN card
HD-6 SSD (32 GB)
HD-7 SSD (128 GB)
cabinet no. 62
|
