P-4020 MFP

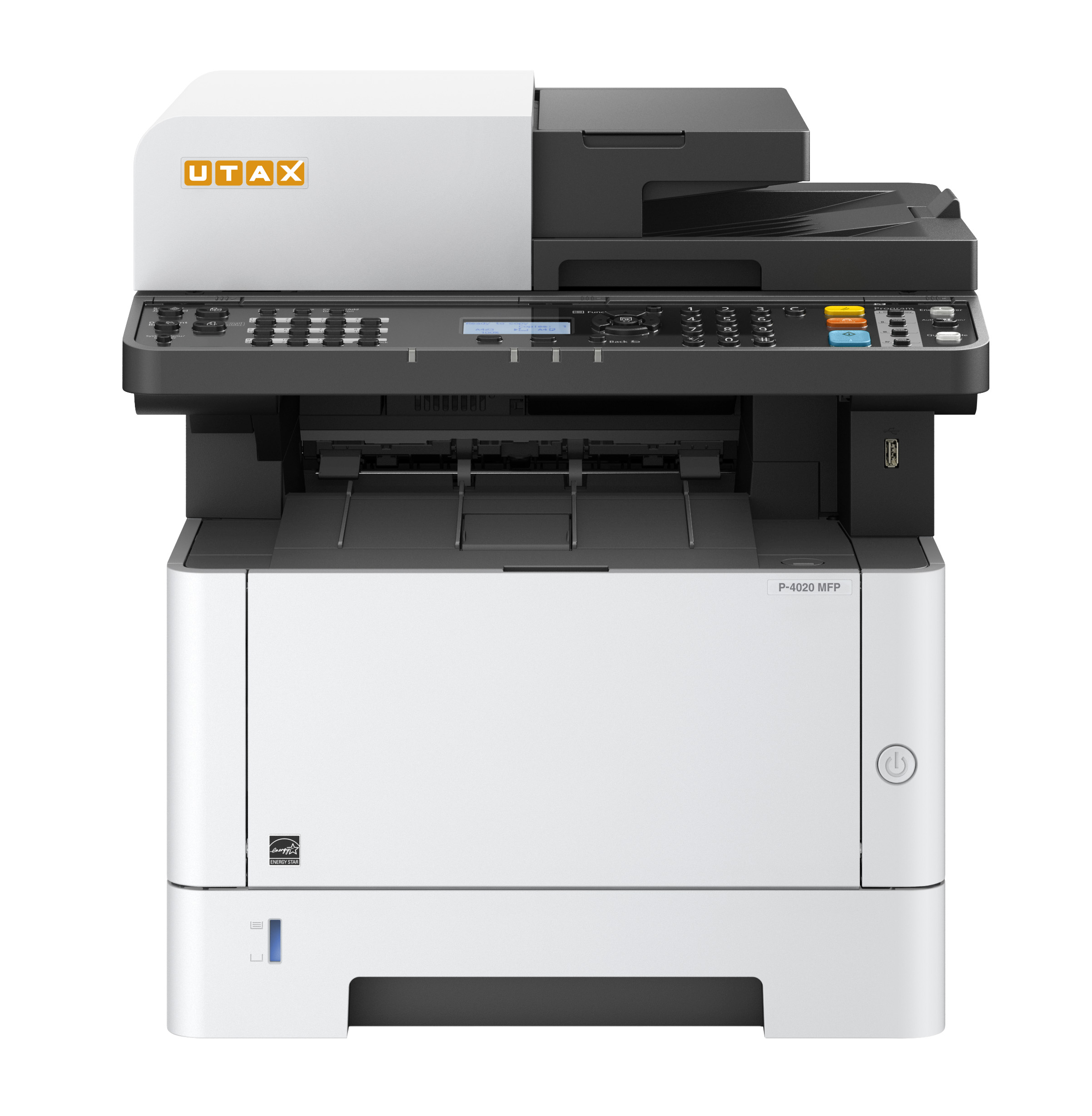

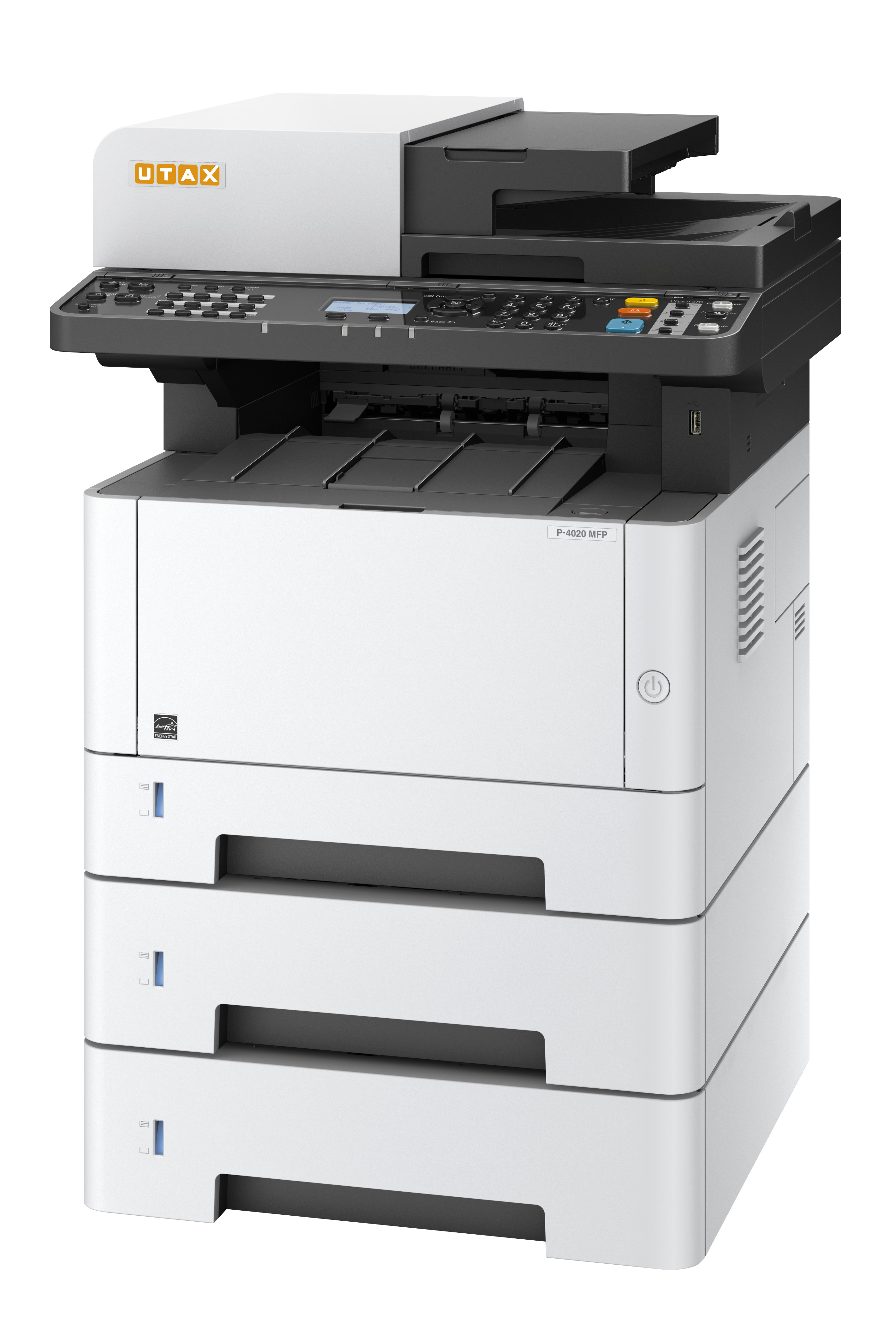

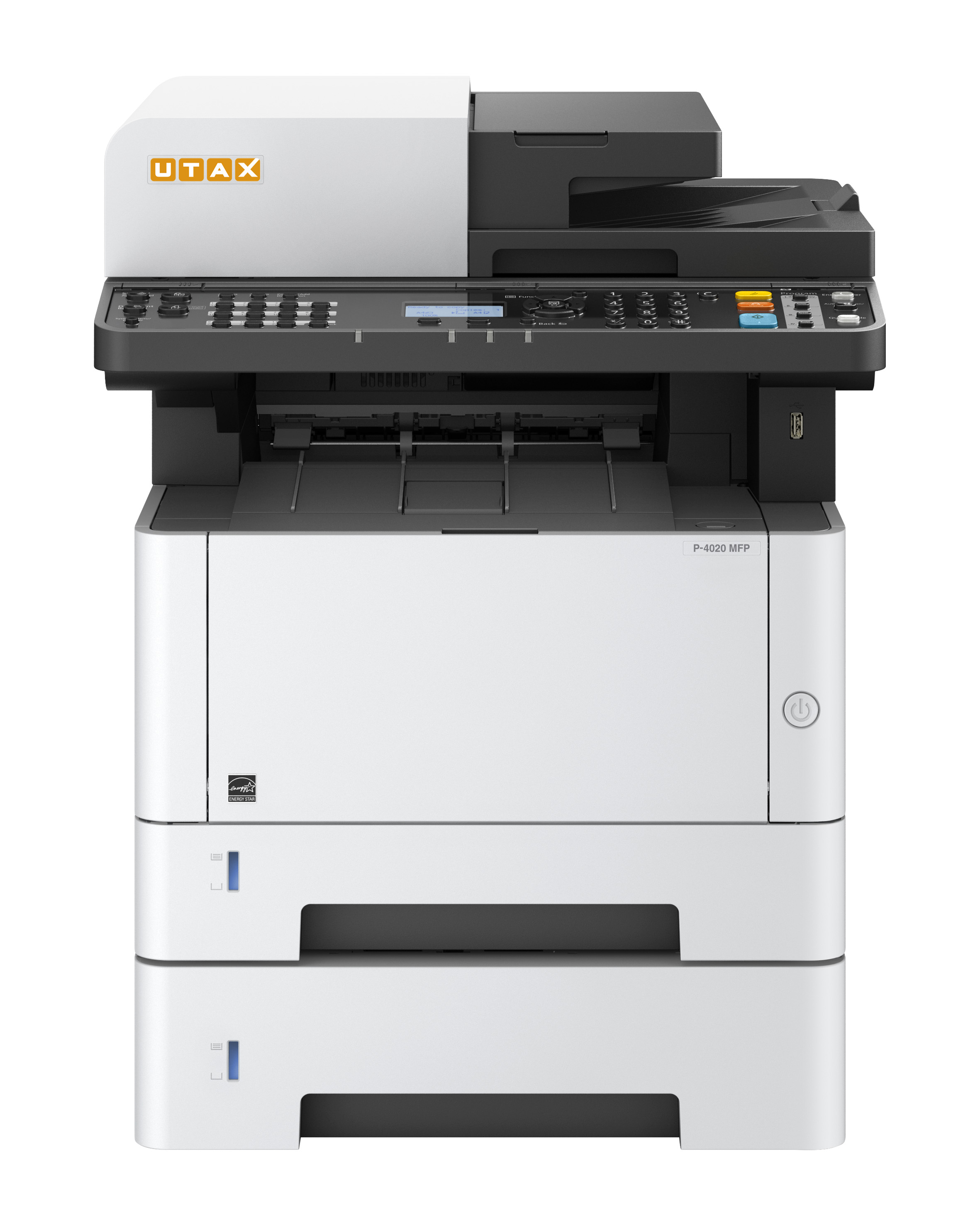

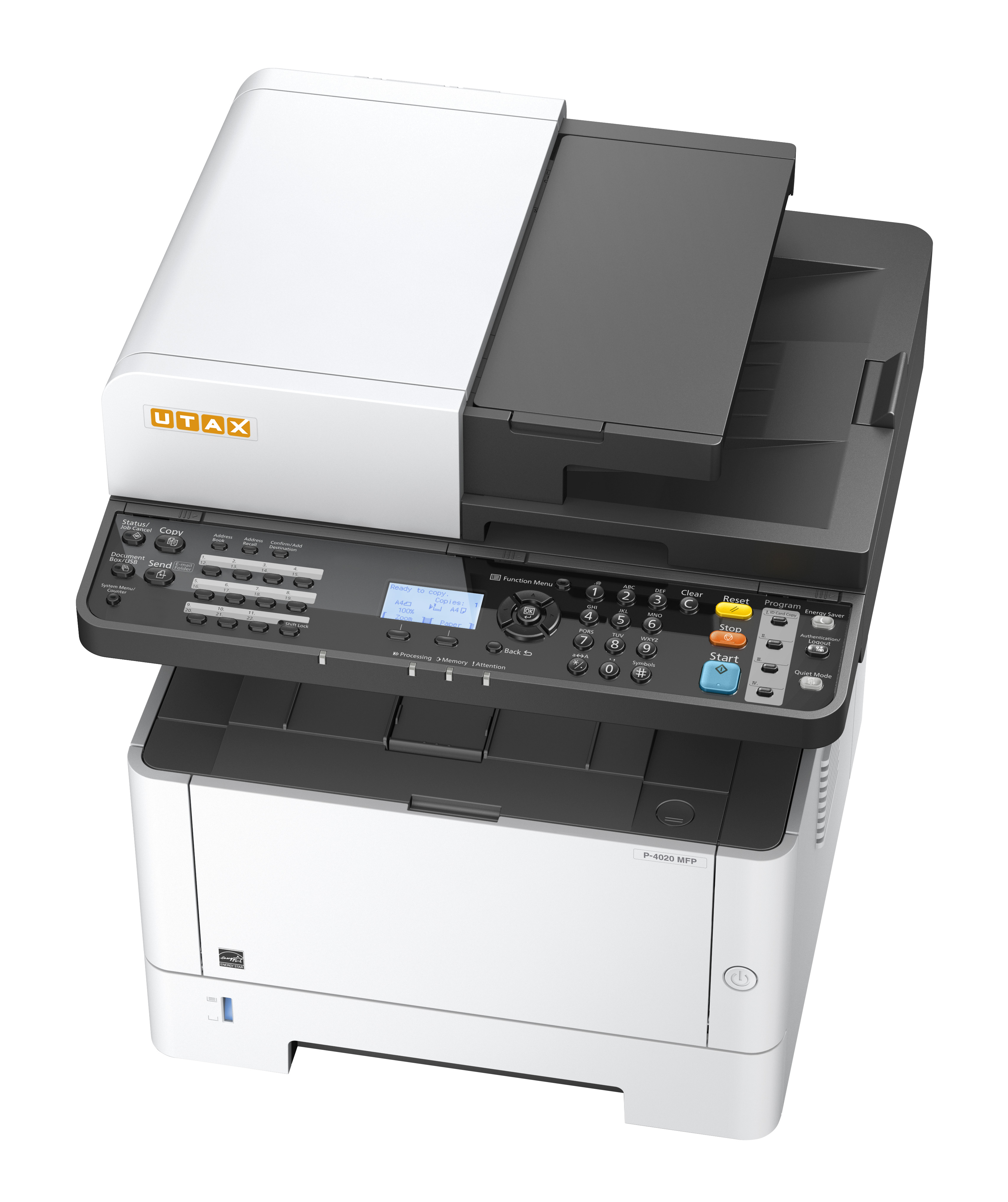

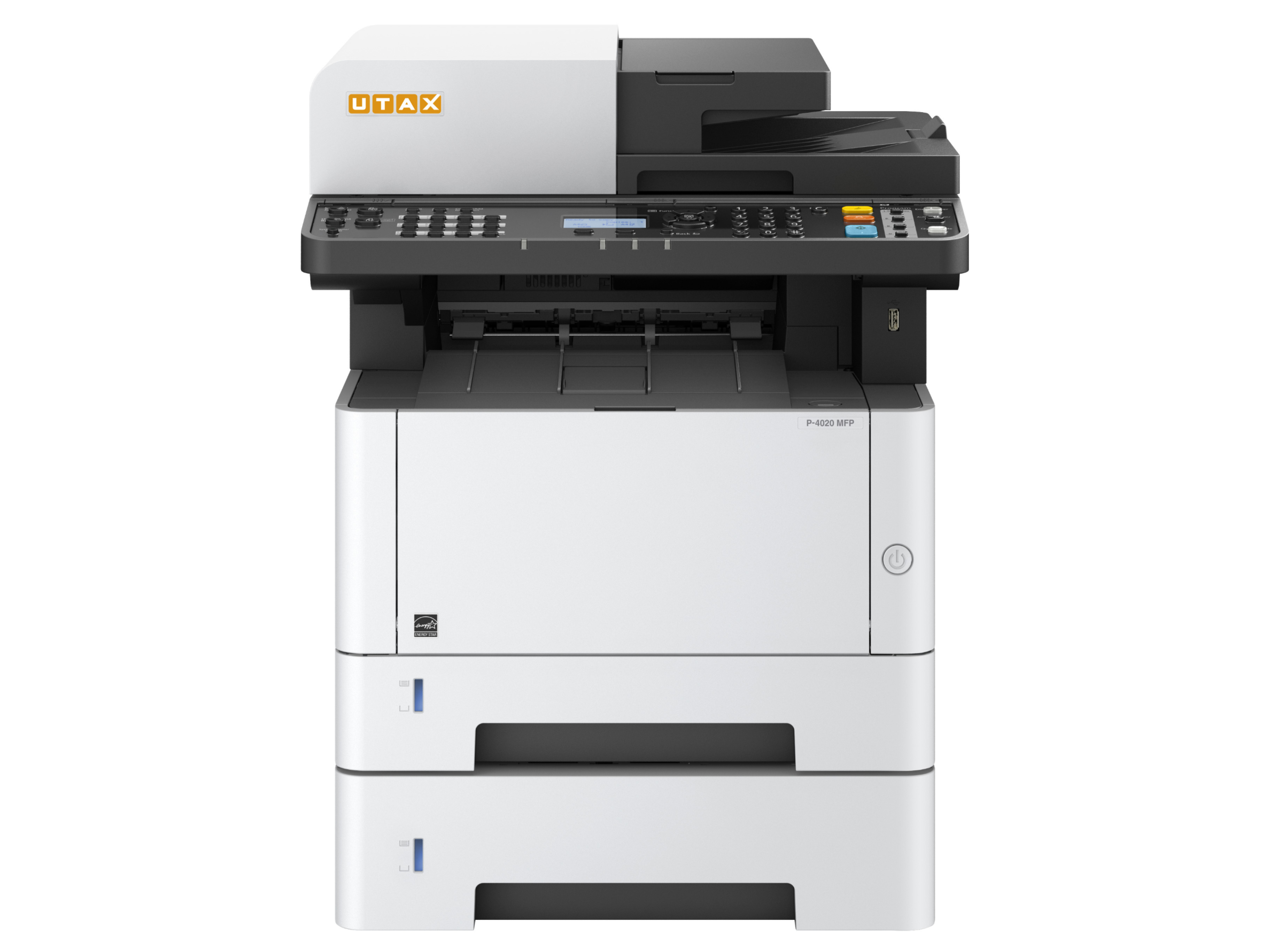

UTAX P-4020 MFP

Multifunzione copia/stampa/scanner

Specifiche Tecniche Brochures Immagini Driver Certificati Tutti i files

Specifiche Tecniche

Tipo: Multifunzione copia/stampa/scanner
Tecnologia: laser/monocomponente
Formato max originale/copia: A4
Schermo: touchscreen a colori da 4,3" pollici
Velocità di stampa: 40 pagine A4 al minuto
Risoluzione: 1.200 dpi, 256 livelli di grigio
Alimentatore originali: di serie dual scan
da 50 fg
Memoria: RAM 512 MB (esp 1 GB)
Processore: Cortex-A9, 800Mhz
Tempo preriscaldamento: 20 secondi
Tempo prima di stampa: 6,4 secondi
Capacità carta standard: cassetto da 250 fogli
Multi By-pass: da 100 fogli
Peso carta: cassetto e Fronte Retro 60-163 g/m2
bypass: 60-220 g/m2
Fronte Retro: di serie
Emulazioni: PCL6 (PCL 5e, XL), Line Printer, IBM
Proprinter, KPDL 3 (compatibile PostScript 3), XP
PRESCRIBE IIe, Epson LQ-850, PDF 1.7, Open XPS
Scanner: colore,TIFF, JPEG, PDF, PDF/A-1, XPS
equipaggiamento per PDF ad alta compressione.
Risoluzione Scanner: 600x600
Velocità Scanner: 40ipm b/n, 23ipm a colori 300dpi
velocità in Fronte Retro 32pm b/n - 16pm a colori
Interfacce: 10/100/1000 Base TX, US0 2.0, Host USB
Slot SD.
Peso: 19 Kg
Dimensioni: h.437 x l.417 x p.412 mm
Kit toner iniziale: appros. 3.600 pagine A4 ISO/IEC 19752
Tamburo + Developer: 100.000 pagine

Brochures

Brochure Italian

P-4020 MFP / P-4025w MFP / P-4026iw MFP

File size: 0.5 MB
IT_DB_P-4020_MFP_P-4025w_MFP_P-4026iw_MFP_UT_Rev_2.pdf

Datasheet English

P-4020 MFP / P-4025w MFP / P-4026iw MFP

File size: 0.5 MB
EN_DB_P-4020_MFP_P-4025w_MFP_P-4026iw_MFP_UT_Rev_2.pdf

Product overview January 2021 English

P-3522DW / P-4020DN / P-4020DW / P-4532DN / P-5032DN / P-5532DN / P-6033DN / P-6040DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2507ci / 302ci / 3207ci / 3262i / 352ci / 357ci / 4007ci / 402ci / 4062i / 5007ci / 502ci / 5057i / 6007ci / 6057i / 7057i / 7307ci / 8057i / 8307ci / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6038i MFP / P-6038if MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP

File size: 6.2 MB
EN_BC_UT_PU_A4_01_2021.pdf

Product overview January 2021 Italian

File size: 6.2 MB
IT_BC_UT_PU_A4_01_2021.pdf

Manuali

Immagini





Certificato

Declaration of Conformity

P-3521 MFP / P-4020 MFP

File size: 0.0 MB
CONF_P-4020MFP_P-3521MFP_UT_Ver2_D_UK.pdf

Energy Star 2.0

File size: 0.4 MB
EU_E-Star_P-4020 MFP_UT.pdf

RoHS Declaration of Conformity

P-4020 MFP

File size: 0.0 MB
CONF_RoHS_P-4020 MFP_UT_D_UK.pdf

Safety data sheet

File size: 0.3 MB
EV_P-4020MFP_P-4025wMFP_P-4026iwMFP_TO_Ver1_UK.pdf

Safety data sheet

System

File size: 0.1 MB
DE_EN_SDS_P-4020MFP_TA_UT_Rev_2.pdf

Drivers

PRINT-DRIVER

Linux PPD

Version: 8.1606

Date: 17-11-2016

File size: 0.8 MB
LinuxPPD_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

MAC Installer OS X 10.14 Mojave

Date: 22-10-2019

File size: 25.7 MB
cCD-cLP_MAC-OS_10.14_Mojave_20191022.zip

PRINT-DRIVER

MAC Installer OS X 10.6 - 10.12 Sierra

Version: 3.3 / 2017.7.28

Date: 31-07-2017

File size: 15.3 MB
cCD-cLP_MacOSx1012_20170731.zip

PRINT-DRIVER

MAC Installer OS X 10.8 - 10.12 Sierra

Version: 4.0 / 2018.05.09

Date: 28-05-2018

File size: 19.6 MB
CCD-cLP_MacOSx10.8-10.12_20180528.zip

PRINT-DRIVER

macOS Big Sur (11.01) and Monterey (12.0)

Date: 23-11-2021

Big Sur (11.01) and Monterey (12.0) Support

File size: 27.4 MB
macOS_V53_TA-UTAX-20211028.zip

PRINT-DRIVER

Windows 10, Server 2012, Server 2012 R2,
Server 2016, Server 2019

KX Universal PCL / Post Script Driver
Version: 8.2.0623
Microsoft certified

Date: 16-11-2021

File size: 108.0 MB
KX-Driver_8.2.0623_20210901.zip

PRINT-DRIVER

Windows 10, Windwos 8.1, Windows 7,
Server 2016, Server 2019

KX XPS Driver
Version: 5.0.1120
Microsoft certified

Date: 11-05-2020

File size: 106.0 MB
KXv4Driver_V501120_20200511.zip

PRINT-DRIVER

Windows 2000

KX Universal PCL / Post Script Driver
Version: 5.1.1405e2

Date: 17-11-2016

File size: 7.7 MB
KX-GenDriver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows 2000

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1112

Date: 17-11-2016

File size: 0.1 MB
KPDL-GenDriver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows 2000

PCL 5 Driver [Mini Driver]
Version: 4.1

Date: 17-11-2016

File size: 0.1 MB
PCL5-GenDriver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

Windows USB Driver
Version: 13.54.20.543
Date: 18-04-2017

File size: 0.0 MB
WinUSB-Driver_P-3521MFP_...P-4020DW_20170418.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

PCL 6 Driver [Mini Driver]
Version: 3.10
Microsoft certified

Date: 30-06-2017

File size: 1.2 MB
PCL6_UniDriver_V310_cCD_cLP_20170630.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

PCL 5 Driver [Mini Driver]
Version: 3.10
Microsoft certified

Date: 03-07-2017

File size: 1.2 MB
PCL5_UniDriver_V310_cCD_cLP_20170703.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

Classic Post Script Driver [KPDL Driver]
Version: 3.10
Microsoft certified

Date: 13-07-2017

File size: 2.9 MB
KPDLminiDriver_cCD_cLP_20170713.zip

PRINT-DRIVER

Windows Vista, Windows 7, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016, Server 2019

KX Universal PCL / Post Script Driver
Version: 8.0.1329
Microsoft certified

Date: 18-02-2020

File size: 74.4 MB
KXDriver_cCC_cLP_V801329_OldOS_PrDr20200218.zip.zip

PRINT-DRIVER

Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012

XPS Driver
Version: 1.6.1806

Date: 17-11-2016

File size: 25.8 MB
XPS-Driver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

PCL 5 Driver [Mini Driver]
Version: 1.3

Date: 17-11-2016

File size: 0.1 MB
PCL5-Driver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1605

Date: 17-11-2016

File size: 0.4 MB
KPDL-Driver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003,
Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

KX Universal PCL / Post Script Driver
Version: 6.3.1806
Microsoft certified

Date: 17-11-2016

File size: 36.6 MB
KX-Driver_P-3521MFP_...P-4020DW_20161117.zip

PRINT-DRIVER

Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008,
Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

KX Universal PCL / Post Script Driver
Version: 7.1.0330
Microsoft certified

Date: 18-04-2017

File size: 64.2 MB
KxDriver_cCD_cLP_V710330_PrDr20170418.zip

SCAN-DRIVER

Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

Twain Driver
Version: 2.0.7006

Date: 05-04-2017

File size: 18.9 MB
TwainDriver_cdc_cLP_20170405.zip

SCAN-DRIVER

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

Twain Driver
Version: 2.0.6513

WIA Network Driver
Version: 2.2.0609

WIA USB Driver
Version: 2.2.0506

Date: 16-11-2016

File size: 21.4 MB
ScanDriver_P-3521MFP_...P-4026iwMFP_20161116.zip
