Multifunzioni e stampanti UTAX

UTAX P-4020DW

[P-4020DW]

Printer laser b/n


Specifiche Tecniche

Type
Desktop
Function
print
Print technology
Laser b/w
Print format
max A4
Print speed (A4, Simplex) B/W
40
Print speed (A4, Duplex) B/W
20
1st page (printing, b/w)
6.4
Warm-up time
15
Printing resolution (min)
600 x 600 dpi
Printing resolution (max)
1,200 x 1,200 dpi
Greyscales
256
Paper feed (Universal cassettes amount)
1 x 250 sheet
Paper feed (1st cassette types)
A6R-A4
Paper feed (Multi-Bypass amount)
100 sheet multi-bypass (A6R-A3)
Paper feed (Multi-Bypass types)
A6R-A4
Paper weights (Universal cassette min)
60
Paper weights (Universal cassette max)
163
Paper weights (Multi-Bypass min)
60
Paper weights (Multi-Bypass max)
220
Paper weights (Duplex min)
60
Paper weights (Duplex max)
163
Paper output
250 sheet A4
System memory (RAM)
0.256
System memory (RAM max)
0.256
Processor
Cortex-A9, 800 MHz
Interfaces
USB 2.0
10/100/1000BaseTX
USB host
SD-Card Slot
Wi-Fi
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2003
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Linux
Mac ex OS 10.6
Emulations
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ile
Line Printer
IBM Proprinter
Epson LQ-850
PDF 1.7
XPS
Open XPS
Functions
USB direct printing
PDF direct printing
printing of e-mails
private printing
quiet mode (half speed mode)
barcode printing
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
Wi-Fi Direct®
Dimensions (height)
272
Dimensions (width)
375
Dimensions (depth)
393
Weight
14
Mains voltage
220/240 V
Utility frequency
50/60 Hz
Power consumption (max)
974
Power consumption (busy)
620
Power consumption (standby)
8
Power consumption (sleep)
0.8
Power consumption (TEC)
1.6
Noise level (busy, b/w)
48.8
Noise level (standby)
Safety
GS/TÜV
CE
Paper feed

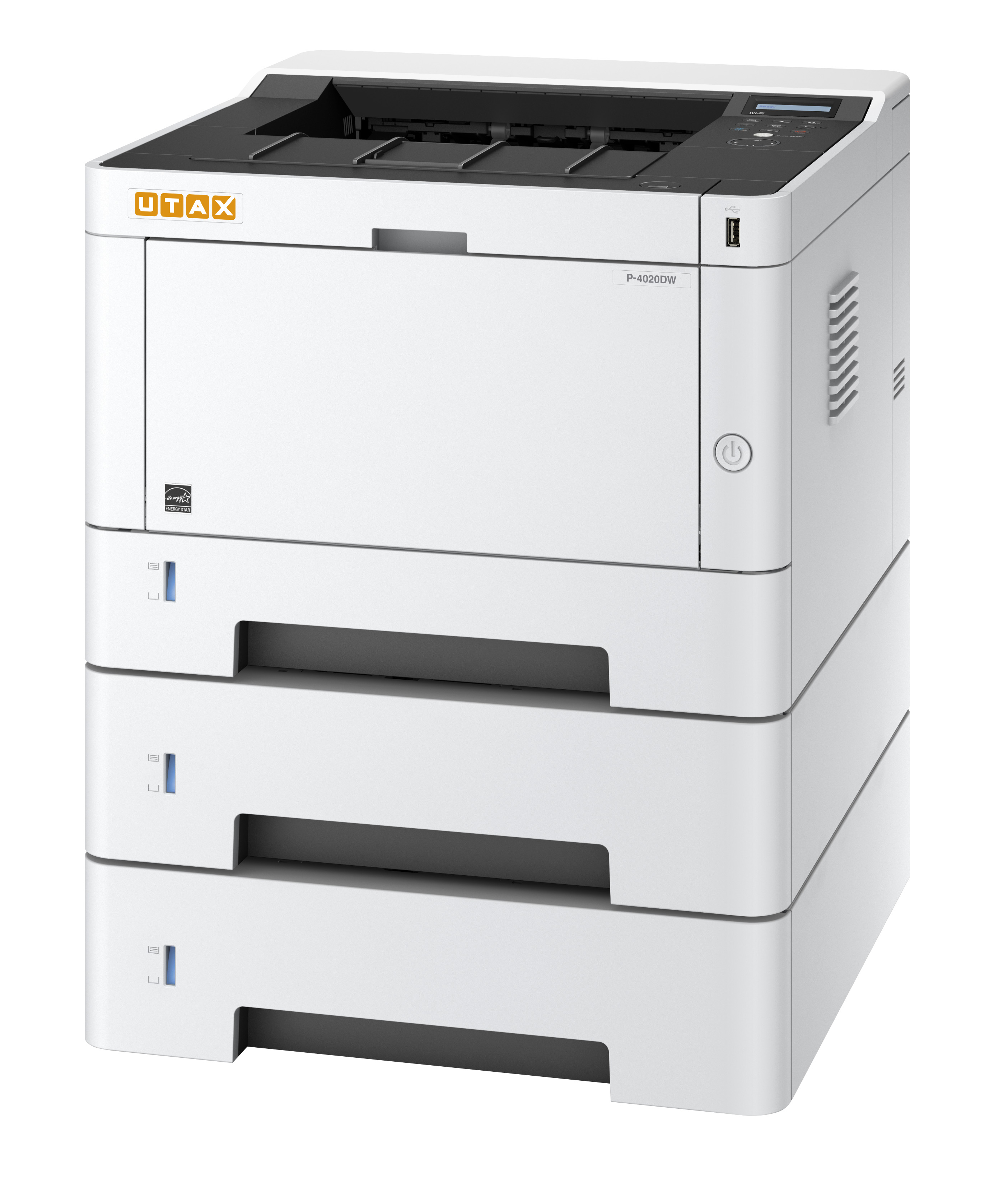

max 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])
Other options
Card authentication kit (B)
UG-33 ThinPrint® kit
cabinet no. 78
