Multifunzioni e stampanti UTAX

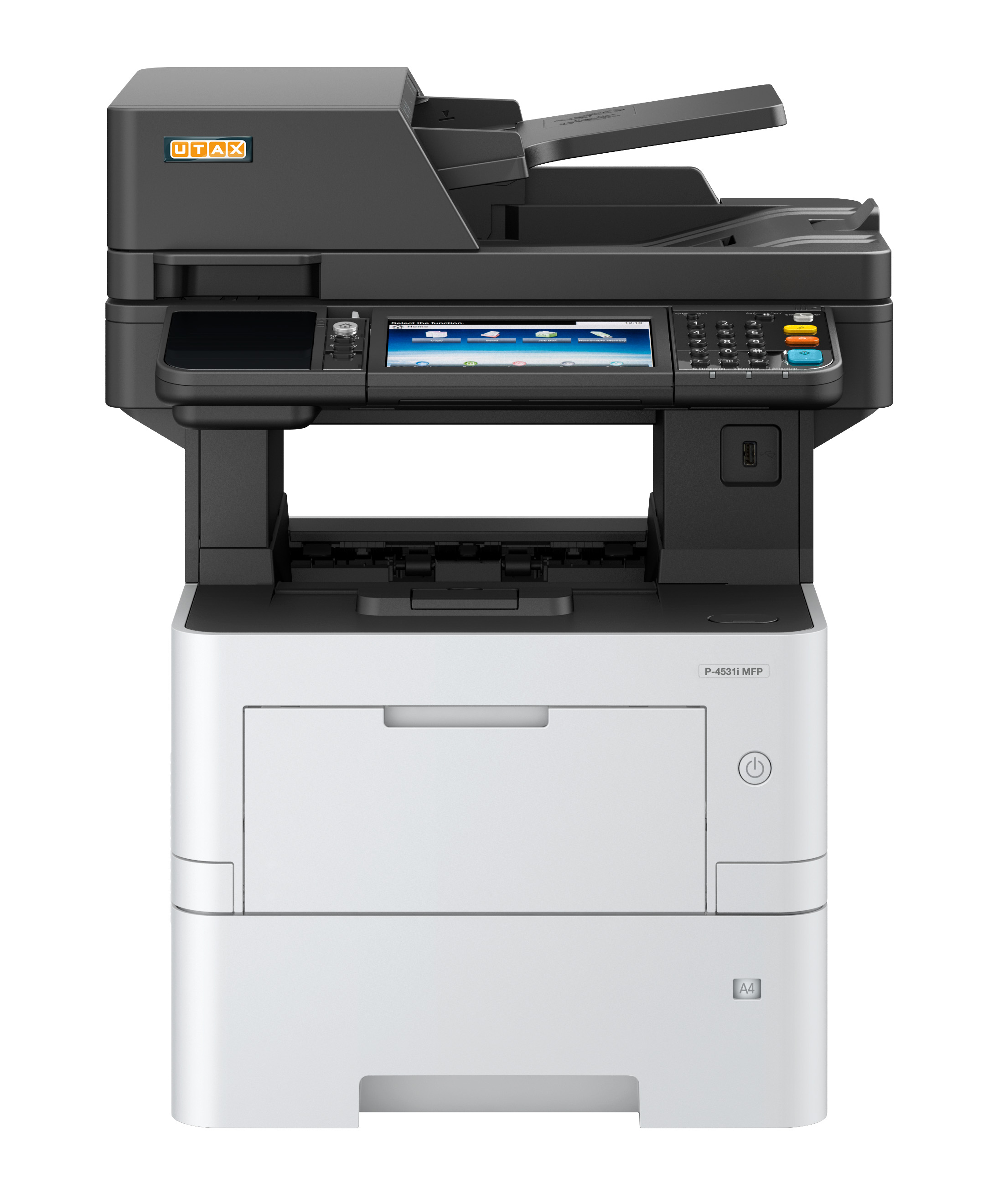

UTAX P-4531i MFP

Multifunzione copia/stampa/scanner


Specifiche Tecniche

TypeDesktop
FunctionCopy, print, scan
Print technologyLaser b/w
Original feeder75 sheet original feeder, A6R-A4, 50-120 g/m² (simplex/duplex)
Copy/print speedmax 45 A4 pages/min, duplex: max 22.5 A4 pages/min
1st page5.9/7 seconds* (print/copy)
Warm-up time21 seconds
Copy resolution600 x 600 dpi
Greyscales256
Paper feed1 x 500 sheet universal cassette (A5R-A4, min 140 x 148 mm, max 216 x 356 mm), 100 sheet multi-bypass (A6R-A4, min 70 x 148 mm, max 216 x 356 mm
Paper weightsCassette 60-120 g/m2, multi-bypass 60-220 g/m2, duplex 60-120 g/m2, Banner: max. 915 mm length
Paper output500 sheet A4
System memory1 GB RAM, (max 3 GB RAM), HD-6 (32 GB)/HD-7 (128 GB) SSD**
Continuous copy1-999 copies
Zoom25 %-400 % in 1 % steps
FunctionsAdjustable touch screen (7 inch), duplex, job reservation, favorites ( job programs), ID card copy, Scan Once – Copy Many, conitnuous copy, N-up, quiet mode (half speed mode), 100 management codes
Dimensions/weight575 mm x 475 mm x 476 mm (H x W x D), approx. 22.5 kg
Environment
Mains voltage220/240 V, 50 Hz
Power consumptionapprox. 1,276 W max, approx. 630 W in operation, approx. 50 W in stand-by mode, approx. 0.5 W in sleep mode, TEC value: 2.4 KWh/week
Noise levelapprox. 52 dB(A) in operation,approx. 26,2 dB(A) in stand-by mode (ISO 7779/9296)
SafetyGS/TÜV, CE
Printing
Print formatsA6R-A4
Print resolution1,200 x 1,200 dpi
ProcessorARM Cortex-A9, 1.2 GHz
InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
Network protocolsTCP/IP, Net BEUI
Operating systemsWindows 7/8/8.1/10, Server 2008 R2/2012 R2/2016, Novell NetWare**, Linux, Mac ex OS 10.5
EmulationsPCL6 (PCl 5e/c, XL), KPDL 3 (Postscript 3 compatible), PRESCRIBE IIe, Line Printer, IBM Proprinter X24E, Epson LQ-850, PDF-1.7, XPS, Open XPS
FunctionsUSB direct printing, printing of e-mails, barcode printing, private printing (with additional memory), WSD-/internet printing, Mobile Print/Apple AirPrint**, Google Cloud Print, Wi-Fi**
Scanning
Scan technologyCCD colour and b/w
Scan formatmax A4
Scan speedb/w: max 60/26 A4 pages/min (simplex/duplex), colour: max 40/17 A4 pages/min (simplex/duplex) at 300 dpi
Scan resolution600 x 600 dpi
File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, Open XPS, MS Office/durchsuchbares PDF**
Interfaces10/100/1000BaseTX, USB 2.0
Network protocolsTCP/IP
Operating systemsWindows 7/8/8.1, Server 2008 R2/2012 R2/2016
FunctionsScan to SMB, scan to e-mail, scan to FTP, TWAIN-scan, scan to USB, WSD-scan, SMTP Authentifizierung, LDAP
*depending on operating status
**optional

Brochures

Product overview August 2018 Italian

LP 3151 / P-3522DW / P-4020DN / P-4020DW / P-4531DN / P-5031DN / P-5531DN / P-6031DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2506ci / 301ci / 3206ci / 3262i / 350ci / 356ci / 4006ci / 400ci / 4056i / 4062i / 5006ci / 5056i / 6006ci / 6056i / 7006ci / 7056i / 8006ci / 8056i / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP

File size: 4.9 MB
BC_UT_PU_A4_08_2018_IT.pdf

Manuali

Instruction Handbook Italian

P-4531i MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP

File size: 16.5 MB
IH_P-4531i_4536i_5536i_6036i_MFP_UT_IT.pdf

Certificato

Declaration of Conformity

File size: 0.0 MB
CONF_P-4531_4536_4531i_4536iMFP_TA_Ver1_D_UK.pdf

RoHS Declaration of Conformity

File size: 0.0 MB
CONF_RoHS_P-4531iMFP_TA_D_UK.pdf

Safety data sheet

Toner

File size: 0.4 MB
EV_P-4531iMFP_P-4536iMFP_TO_Ver1_UK.pdf

Safety data sheet

System

File size: 0.2 MB
SDS_P-4531iMFP.pdf

Drivers

Instruction Handbook Italian

P-4531i MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP

File size: 16.5 MB
IH_P-4531i_4536i_5536i_6036i_MFP_UT_IT.pdf

PRINT-DRIVER

Linux PPD

Version: 8.1711

Date: 13-06-2018

File size: 0.6 MB
Linux-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

MAC Installer OS X 10.8 - 10.12 Sierra

Version: 4.0 / 2018.05.09

Date: 28-05-2018

File size: 19.6 MB
CCD-cLP_MacOSx10.8-10.12_20180528.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016 KX Universal PCL / Post Script Driver
Version: 7.2.1123
Microsoft certified

Date: 13-06-2018

File size: 38.2 MB
KX-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1711

Date: 13-06-2018

File size: 0.3 MB
KPDL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

XPS Driver
Version: 2.2.1123

Date: 13-06-2018

File size: 26.1 MB
XPS-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

PCL 5 Driver [Mini Driver]
Version: 1.9

Date: 13-06-2018

File size: 0.1 MB
PCL-Driver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

KX Universal PCL / Post Script Driver
Version: 7.4.0830
Microsoft certified

Date: 20-09-2018

File size: 69.2 MB
KxDriver_cCD_cLP_V740830_PrDr20180920.zip

PRINT-DRIVER

Windows XP, Windows Vista

KX Universal PCL / Post Script Driver
Version: 6.3.0909

Date: 13-06-2018

File size: 31.4 MB
KX-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows XP, Windows Vista

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1112

Date: 13-06-2018

File size: 0.1 MB
KPDL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

PRINT-DRIVER

Windows XP, Windows Vista

PCL 5 Driver [Mini Driver]
Version: 4.1

Date: 13-06-2018

File size: 0.1 MB
PCL-GenericDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

Product overview August 2018 Italian

LP 3151 / P-3522DW / P-4020DN / P-4020DW / P-4531DN / P-5031DN / P-5531DN / P-6031DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2506ci / 301ci / 3206ci / 3262i / 350ci / 356ci / 4006ci / 400ci / 4056i / 4062i / 5006ci / 5056i / 6006ci / 6056i / 7006ci / 7056i / 8006ci / 8056i / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP

File size: 4.9 MB
BC_UT_PU_A4_08_2018_IT.pdf

SCAN-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

Twain Driver
Version: 2.0.8413

WIA Network Driver
Version: 2.2.1628

WIA USB Driver
Version: 2.2.1628

Date: 13-06-2018

File size: 21.3 MB
ScanDriver_P4531MFP-iMFP_P4536MFP-iMFP-P5536iMFP_P6036iMFP_20180613.zip

Print Utility

Network Print Monitor 5x

Software + Manual
für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems
Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

Version: 5.9.0926b

Date: 15-10-2018

File size: 126.0 MB
PR_NetworkPrintMonitor_V590926b_20181015.zip
