Multifunzioni e stampanti UTAX

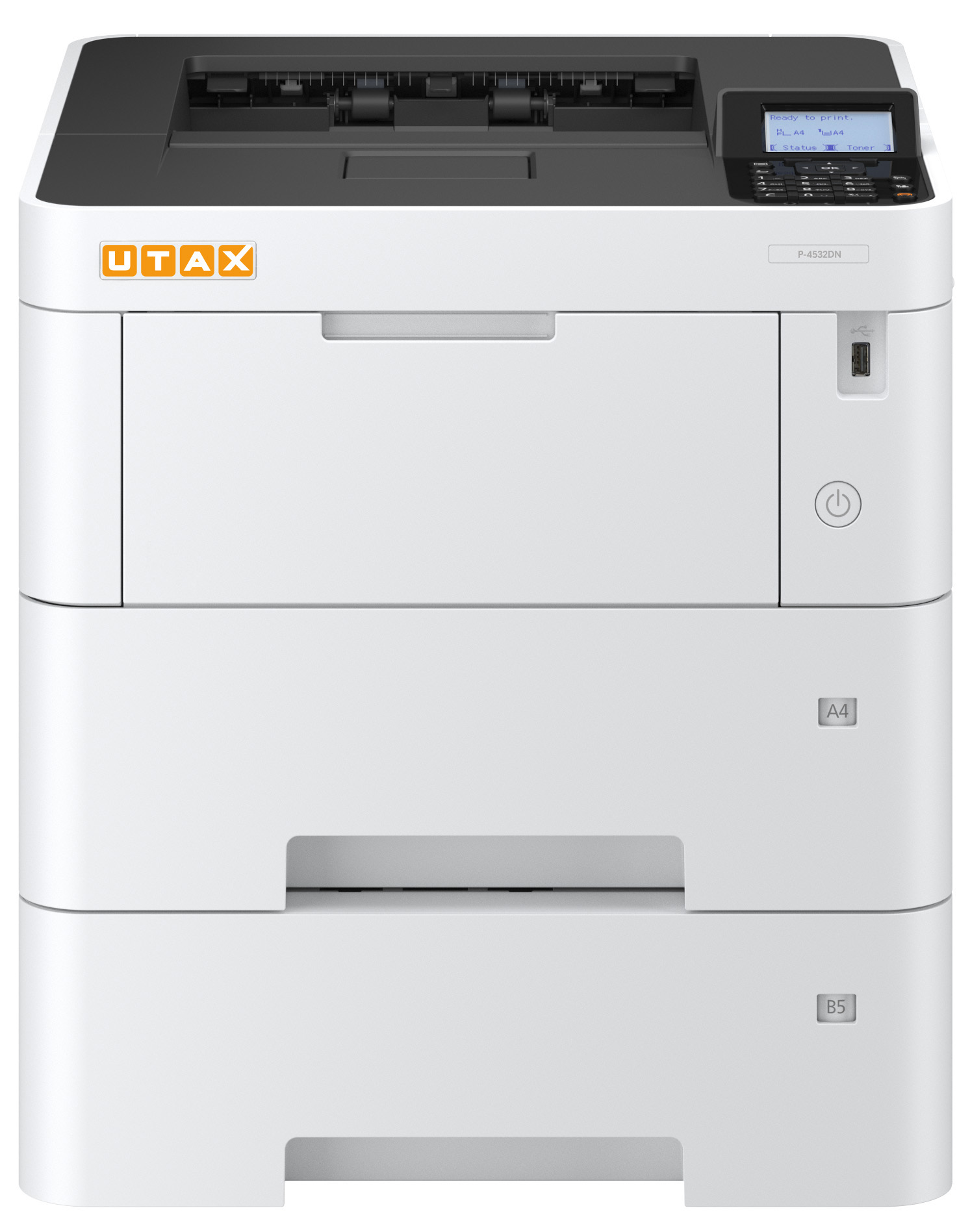

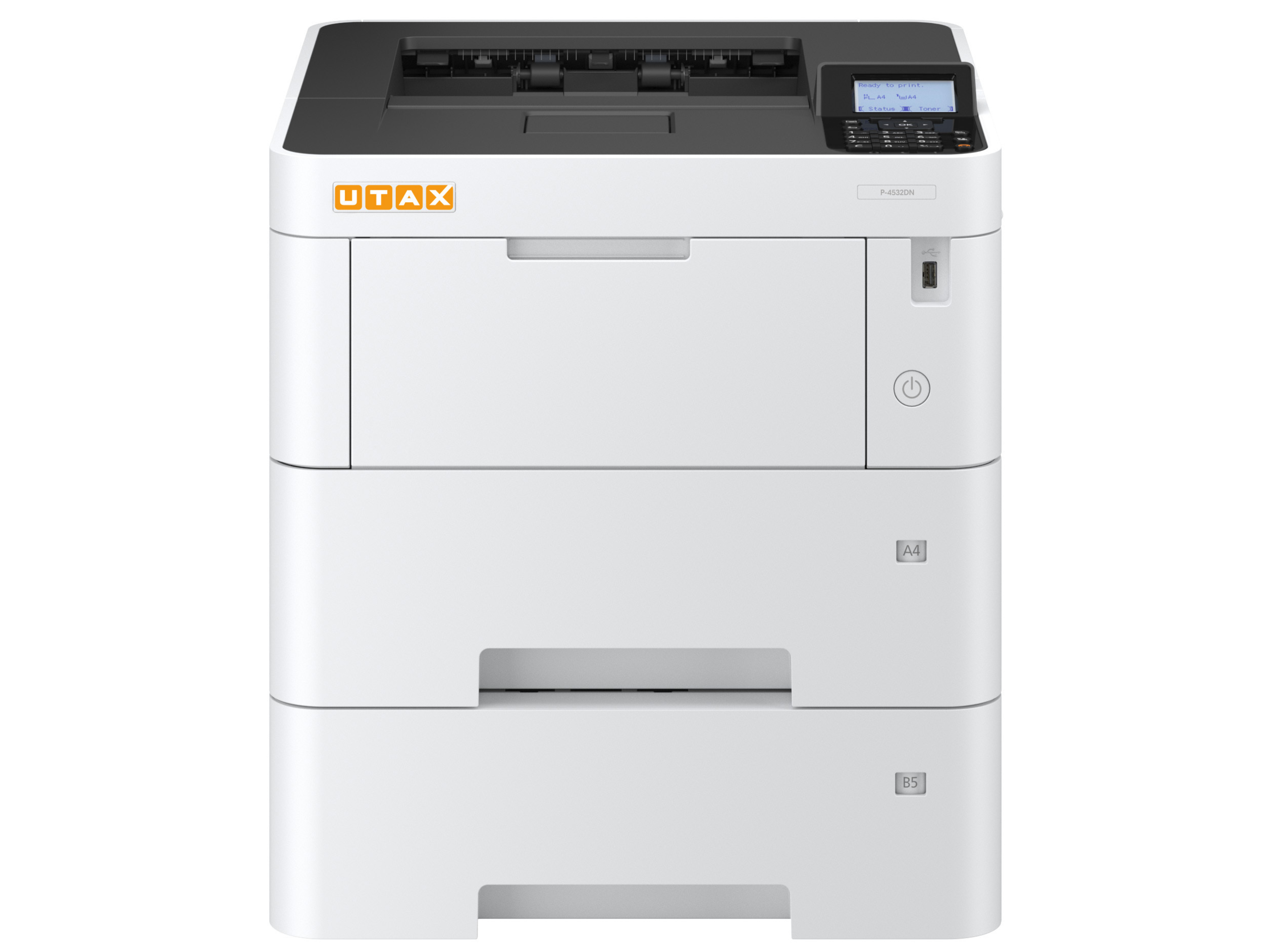

UTAX P-4532DN

[P-4532DN]

Stampante laser b/n

Specifiche Tecniche

Type
Desktop
Function
print
Print technology
Laser b/w
Print format
max A4
Print speed (A4, Simplex) B/W
45
Print speed (A4, Duplex) B/W
22.5
1st page (printing, b/w)
5.3
Warm-up time
16
Printing resolution (max)
1,200 x 1,200 dpi
Greyscales
256
Paper feed (Universal cassettes amount)
1 x 500 sheet
Paper feed (1st cassette types)
A5R-A4
Paper feed (Multi-Bypass amount)
100 sheet multi-bypass (A6R-A3)
Paper feed (Multi-Bypass types)
A6R-A4, 216 × 356 mm -70 × 139.7 mm
banner: 915 mm length
Paper weights (Universal cassette min)
60
Paper weights (Universal cassette max)
120
Paper weights (Multi-Bypass min)
60
Paper weights (Multi-Bypass max)
220
Paper weights (Duplex min)
60
Paper weights (Duplex max)
120
Paper output
250 sheet A4
System memory (RAM)
0.5
System memory (RAM max)
2.5
Processor
ARM Cortex-A9 Dual core 1.2 GHz
Interfaces
USB 2.0
10/100/1000BaseTX
USB host (2)
SD-Card Slot
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Linux
Mac ex OS 10.9
Emulations
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ile
Line Printer
IBM Proprinter
Epson LQ-850
XPS
Open XPS
Functions
USB direct printing
PDF direct printing
printing of e-mails
private printing
quiet mode (half speed mode)
barcode printing
banner print (max 915 mm) from multi-bypass
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
Wi-Fi Direct®
Dimensions (height)
308
Dimensions (width)
390
Dimensions (depth)
416
Weight
14.1
Mains voltage
220/240 V
Utility frequency
50/60 Hz
Power consumption (max)
1218
Power consumption (busy)
594
Power consumption (standby)
10
Power consumption (sleep)
0.5
Power consumption (TEC)
0.58
Noise level (busy, b/w)
53.7
Noise level (standby)
Safety
GS/TÜV
CE
Paper feed
max 4 x PF-3110 (500 sheet universal cassettes [A5R-A4, 60-120 g/m²])
max 1 x PF-3100 (2,000 sheet large capacity tray [A5R-A4, 60-220g/m²])
PB-325 (Attachment Kit is required for PF-3100)
Other options
Data security kit (E)
Card authentication kit (B)
UG-33 ThinPrint® kit
IB-32 B IEEE1284 parallel
IB-50 Gigabit Ethernet card
IB-36 or IB-51 WLAN card
HD-6 SSD (32 GB)
HD-7 SSD (128 GB)
cabinet no. 79 (high)
cabinet no. 80 (low)
caster kit CA-3100
