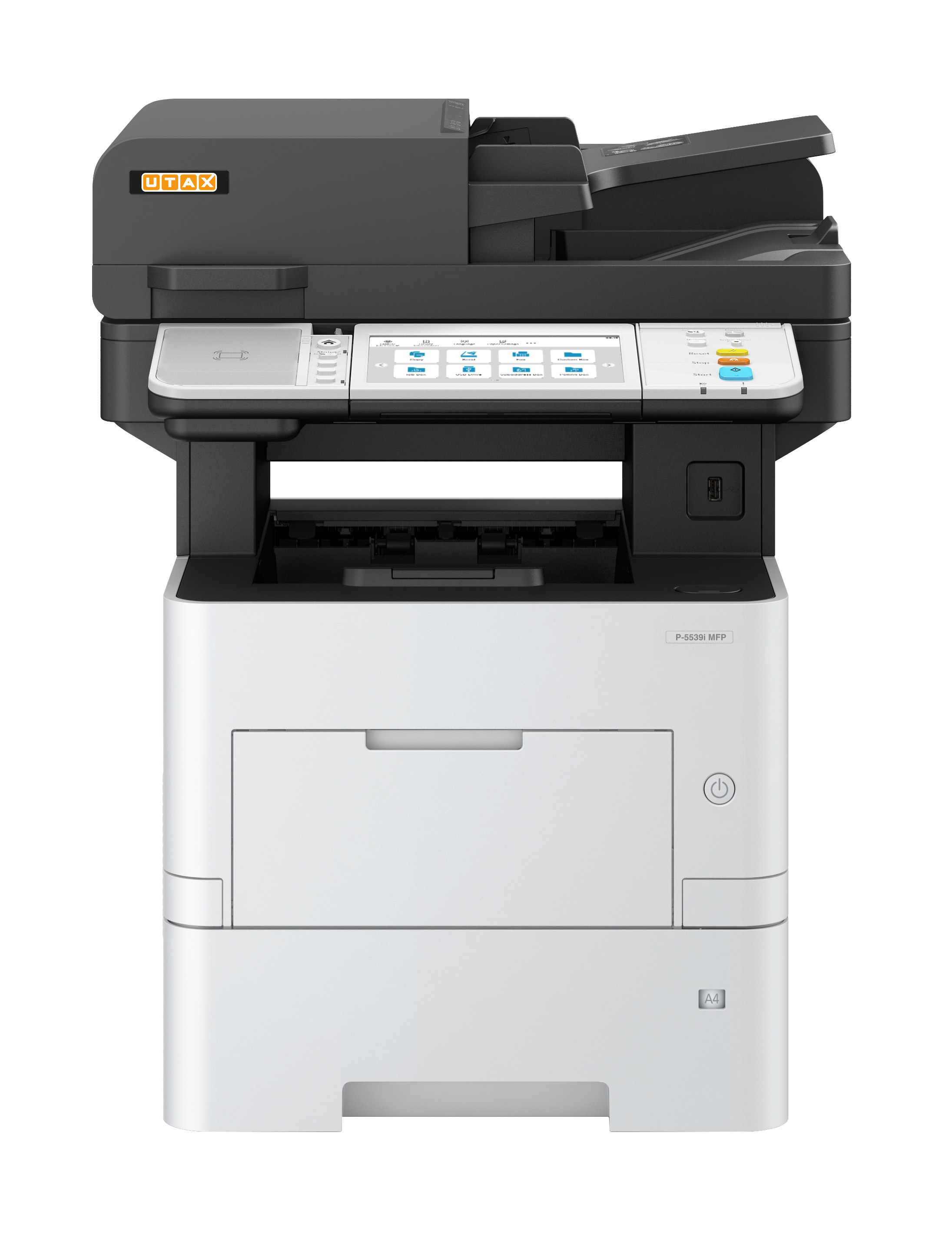

UTAX P-5539i MFP
[P-5539i]Copia , stampa , scansiona , invia fax
Specifiche Tecniche
Type |
Desktop
|
|
Function |
Copy
print
scan
fax
|
|
Print technology |
Laser b/w
|
|
Original format |
max A4 from platen glass
|
|
Original feeder |
100 sheet A4 (dual-scan document processor), A6R-A4, 50-120 g/m² (simplex/duplex)
|
|
Print speed (A4, Simplex) B/W |
55
|
|
Copy speed (A4, Simplex) B/W |
55
|
|
Print speed (A4, Duplex) B/W |
39.5
|
|
Copy speed (A4, Duplex) B/W |
39.5
|
|
1st page (printing, b/w) |
4.5
|
|
1st page (copying, b/w) |
6
|
|
Warm-up time |
25
|
|
Copy resolution |
600 x 600 dpi
|
|
Greyscales |
256
|
|
Paper feed (Universal cassettes amount) |
1 x 500 sheet
|
|
Paper feed (1st cassette types) |
A6R-A4
|
|
Paper feed (Multi-Bypass amount) |
100 sheet multi-bypass (A6R-A3)
|
|
Paper feed (Multi-Bypass types) |
A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
|
|
Paper weights (Universal cassette min) |
60
|
|
Paper weights (Universal cassette max) |
120
|
|
Paper weights (Multi-Bypass min) |
60
|
|
Paper weights (Multi-Bypass max) |
220
|
|
Paper weights (Duplex min) |
60
|
|
Paper weights (Duplex max) |
120
|
|
Paper output |
250 sheet A4 (face-down)
|
|
System memory (RAM) |
1.5
|
|
System memory (RAM max) |
3.5
|
|
Continuous copying (min) |
1
|
|
Continuous copying (max) |
999
|
|
Zoom (min) |
25
|
|
Zoom (max) |
400
|
|
Zoom (step) |
1
|
|
Functions |
Colour touch screen (7 inch)
duplex
job reservation
ID card copy
Scan once - Copy Many
continuous scan
skip blank pages
N-up
quiet mode (half speed mode)
100 management codes
secure boot and run time integrity check
|
|
Dimensions (height) |
590
|
|
Dimensions (width) |
480
|
|
Dimensions (depth) |
495
|
|
Weight |
224.1
|
|
Mains voltage |
220/240 V
|
|
Utility frequency |
50/60 Hz
|
|
Power consumption (max) |
1287
|
|
Power consumption (busy) |
704
|
|
Power consumption (standby) |
60
|
|
Power consumption (sleep) |
0.6
|
|
Power consumption (TEC) |
0.78
|
|
Noise level (busy, b/w) |
54.5
|
|
Noise level (standby) |
23.3
|
|
Safety |
CE
GS/TÜV
|
|
Type |
Integrated within the system
|
|
Print format |
A6R-A4
|
|
Print resolution (max) |
1,200 x 1,200 dpi
|
|
Processor |
ARM Cortex-A53 Dual Core, 1,4 GHz
|
|
Interfaces |
USB 2.0
10/100/1000BaseTX
USB host
|
|
Network protocols |
TCP/IP
Net BEUI
|
|
Operating systems |
Windows 8
Windows 8.1
Windows 10
Server 2012
Server 2012 R2
Server 2016
Server 2019
Linux
Server 2022, Chrome OS, Mac ab OS 10.14
|
|
Emulations |
PCL6 (PCL 5e/c, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ile
Line Printer
IBM Proprinter
Epson LQ-850
XPS
Open XPS
PDF 1.7
|
|
Functions |
USB direct printing
printing of e-mails
PDF direct printing
private printing
barcode printing
WSD-/Internet printing
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
Wi-Fi
Apple AirPrint
Mobile Print (Android/iOS)
Microsoft Universal Print
|
|
Scan type |
CCD colour and b/w
|
|
Scan format |
max A4
|
|
Scan speed (Feeder 1, simplex, colour) |
40
|
|
Scan speed (Feeder 1, simplex, b/w) |
60
|
|
Scan speed (Feeder 1, duplex, colour) |
80
|
|
Scan speed (Feeder 1, duplex, b/w) |
120
|
|
Scan resolution |
200 dpi
300 dpi
400 dpi
600 dpi
|
|
Scan mode |
text
photo/text
optimised for OCR
|
|
File types |
TIFF
JPEG
PDF
PDF/A-1a
PDF/A
PDF/A-1b
PDF/A-2a
PDF/A-2b
PDF/A-2u
high compression PDF
encrypted PDF
XPS
OpenXPS
MS Office/text-searchable PDF
|
|
Interfaces |
10/100/1000BaseTX
USB 2.0
|
|
Network protocol |
TCP/IP
|
|
Operating systems |
Windows 8
Windows 8.1
Windows 10
Server 2012
Server 2016
Server 2012 R2
|
|
Functions |
Scan to SMB
scan to e-mail
scan to FTP
scan to USB
TWAIN scan
WIA scan
SMTP authentication
LDAP
Multi Crop Belegscan
|
|
Type |
Integrated within the system
|
|
Compatibility |
Super G3
|
|
Original format |
max A4
|
|
Modem speed |
33.6
|
|
Transmission speed |
3 seconds or less using JBIG
|
|
Compression method |
JBIG
MMR
MR
MH
|
|
Fax resolution |
Standard (200 x 100 dpi)
fine (200 x 200 dpi)
super fine (200 x 400 dpi)
ultra fine (400 x 400 dpi)
|
|
Fax memory |
8
|
|
Fax memory (image) |
3.5
|
|
Abbreviated dial |
200
|
|
One touch dial |
100
|
|
Group dial |
50
|
|
Operating systems |
Windows 7
Windows 8
Windows 8.1
Server 2008 R2
Server 2016
Server 2012 R2
|
|
Functions |
Network fax driver
automatic redialling
delayed transmission
|
|
Paper feed |
max 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])
|
|
Other options |
Scan extension kit (A)
Card authentication kit (B)
Card reader holder (10)
UG-33 ThinPrint® kit
IB-50 Gigabit Ethernet card
cabinet no. 79 (high)
cabinet no. 80 (low)
HD-18 SSD (256 GB)
IB-37 WLAN card (IEEE802.11a/b/g/n/ac)
HD-17 SSD (64 GB)
caster kit CA-3100
IB-51 WLAN card
IB-38 W-LAN card**** (IEEE802.11 b/g/n Wi-Fi direct)
HD-19 SSD (512 GB)
UG-50 Trusted Platform Modul
MS-5100 B Manueller Hefter
PT-320 sheet output tray (250 sheet face-up)
|
