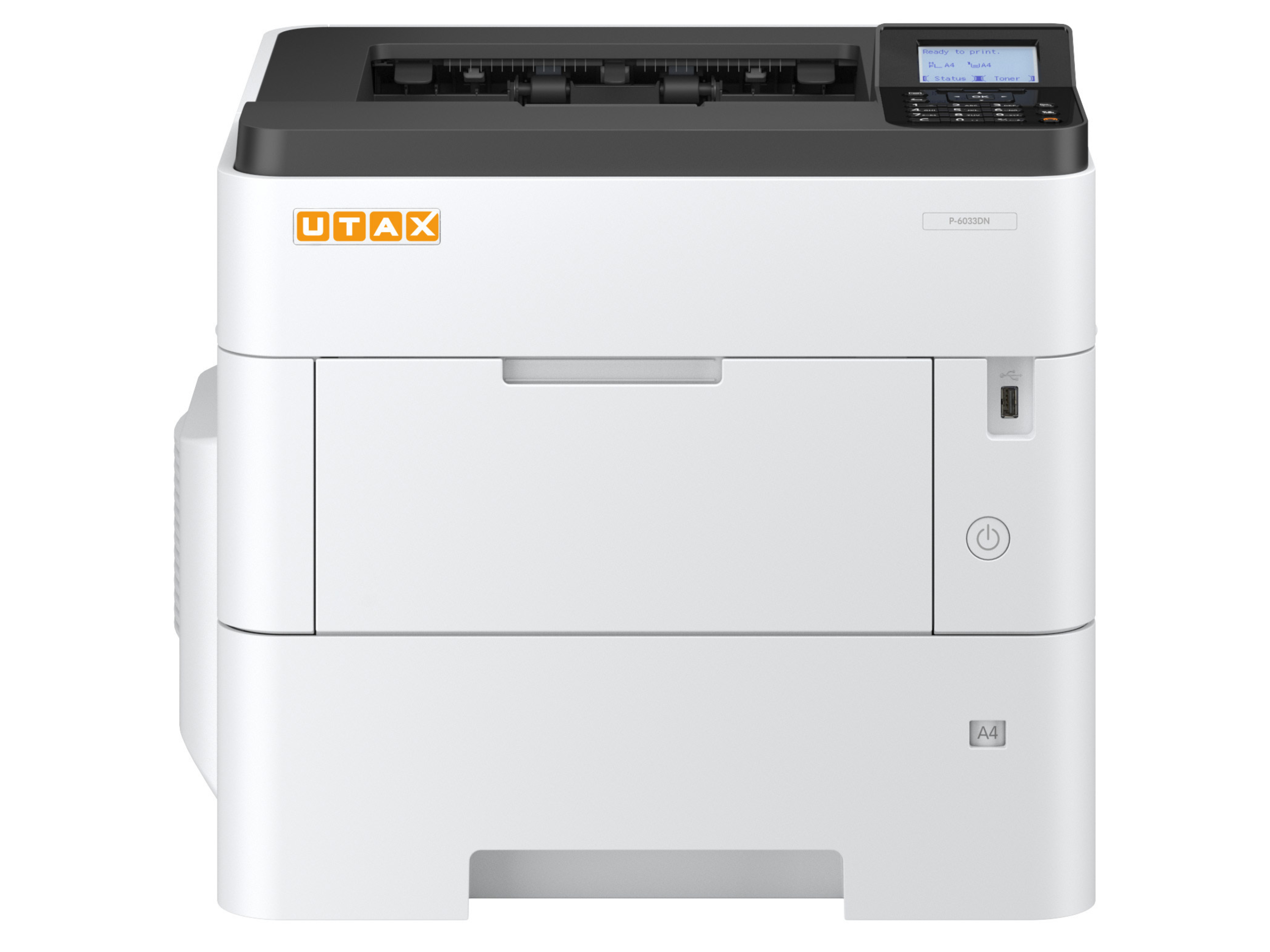

UTAX P-6033DN
[P-6033DN]Stampa, A4
Specifiche Tecniche
| Type |
Desktop
|
|
| Function |
print
|
|
| Print technology |
Laser b/w
|
|
| Print format |
max A4
|
|
| Print speed (A4, Simplex) B/W |
60
|
|
| Print speed (A4, Duplex) B/W |
43
|
|
| 1st page (printing, b/w) |
4.5
|
|
| Warm-up time |
25
|
|
| Printing resolution (max) |
1,200 x 1,200 dpi
|
|
| Greyscales |
256
|
|
| Paper feed (Universal cassettes amount) |
1 x 500 sheet
|
|
| Paper feed (1st cassette types) |
A6R-A4
|
|
| Paper feed (Multi-Bypass amount) |
100 sheet multi-bypass (A6R-A3)
|
|
| Paper feed (Multi-Bypass types) |
A6R-A4, 216 × 356 mm -70 × 139.7 mm
banner: 915 mm length
|
|
| Paper weights (Universal cassette min) |
60
|
|
| Paper weights (Universal cassette max) |
120
|
|
| Paper weights (Multi-Bypass min) |
60
|
|
| Paper weights (Multi-Bypass max) |
220
|
|
| Paper weights (Duplex min) |
60
|
|
| Paper weights (Duplex max) |
120
|
|
| Paper output |
500 sheet A4
|
|
| System memory (RAM) |
0.5
|
|
| System memory (RAM max) |
2.5
|
|
| Processor |
ARM Cortex-A9 Dual core 1.2 GHz
|
|
| Interfaces |
USB 2.0
10/100/1000BaseTX
USB host (2)
SD-Card Slot
|
|
| Network protocols |
TCP/IP
Net BEUI
|
|
| Operating systems |
Windows 7
Windows 8
Windows 8.1
Windows 10
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Linux
Mac ex OS 10.9
|
|
| Emulations |
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ile
Line Printer
IBM Proprinter
Epson LQ-850
XPS
Open XPS
|
|
| Functions |
USB direct printing
PDF direct printing
printing of e-mails
private printing
barcode printing
banner print (max 915 mm) from multi-bypass
Mobile Print (Android, iOS)/Apple AirPrint
Google Cloud Print
Wi-Fi Direct®
|
|
| Dimensions (height) |
363
|
|
| Dimensions (width) |
410
|
|
| Dimensions (depth) |
416
|
|
| Weight |
15.3
|
|
| Mains voltage |
220/240 V
|
|
| Utility frequency |
50/60 Hz
|
|
| Power consumption (max) |
1242
|
|
| Power consumption (busy) |
721
|
|
| Power consumption (standby) |
11
|
|
| Power consumption (sleep) |
0.7
|
|
| Power consumption (TEC) |
0.82
|
|
| Noise level (busy, b/w) |
56
|
|
| Noise level (standby) |
25
|
|
| Safety |
GS/TÜV
CE
|
|
| Paper feed |

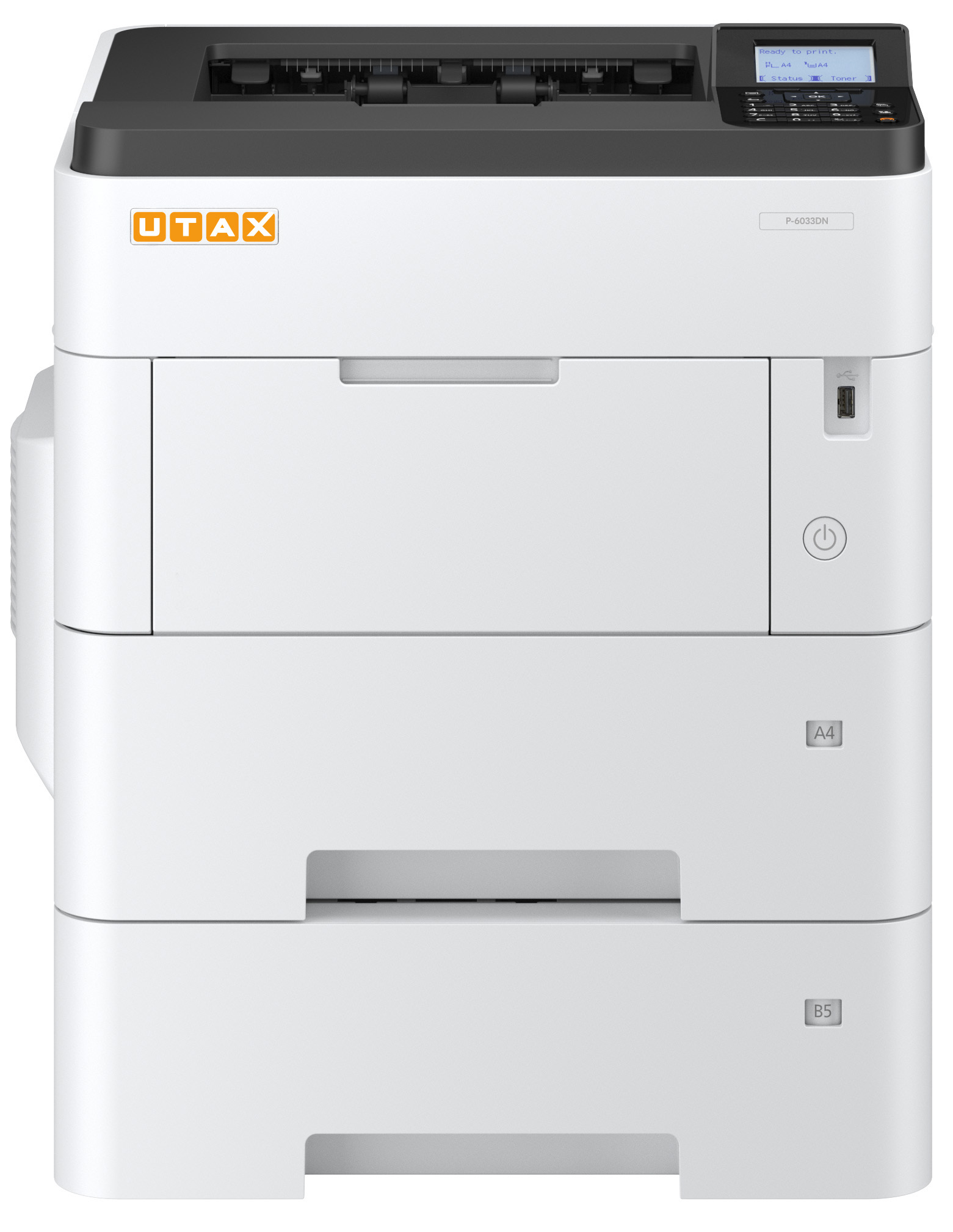

max 4 x PF-3110 (500 sheet universal cassettes [A5R-A4, 60-120 g/m²])
max 1 x PF-3100 (2,000 sheet large capacity tray [A5R-A4, 60-220g/m²])
PB-325 (Attachment Kit is required for PF-3100)
|
|
| Other options |
max 1 x PT-320 (1 x 250 sheet output tray)
Data security kit (E)
Card authentication kit (B)
UG-33 ThinPrint® kit
IB-32 B IEEE1284 parallel
IB-50 Gigabit Ethernet card
IB-36 or IB-51 WLAN card
HD-6 SSD (32 GB)
HD-7 SSD (128 GB)
cabinet no. 79 (high)
cabinet no. 80 (low)
caster kit CA-3100
|
