Multifunzioni e stampanti UTAX

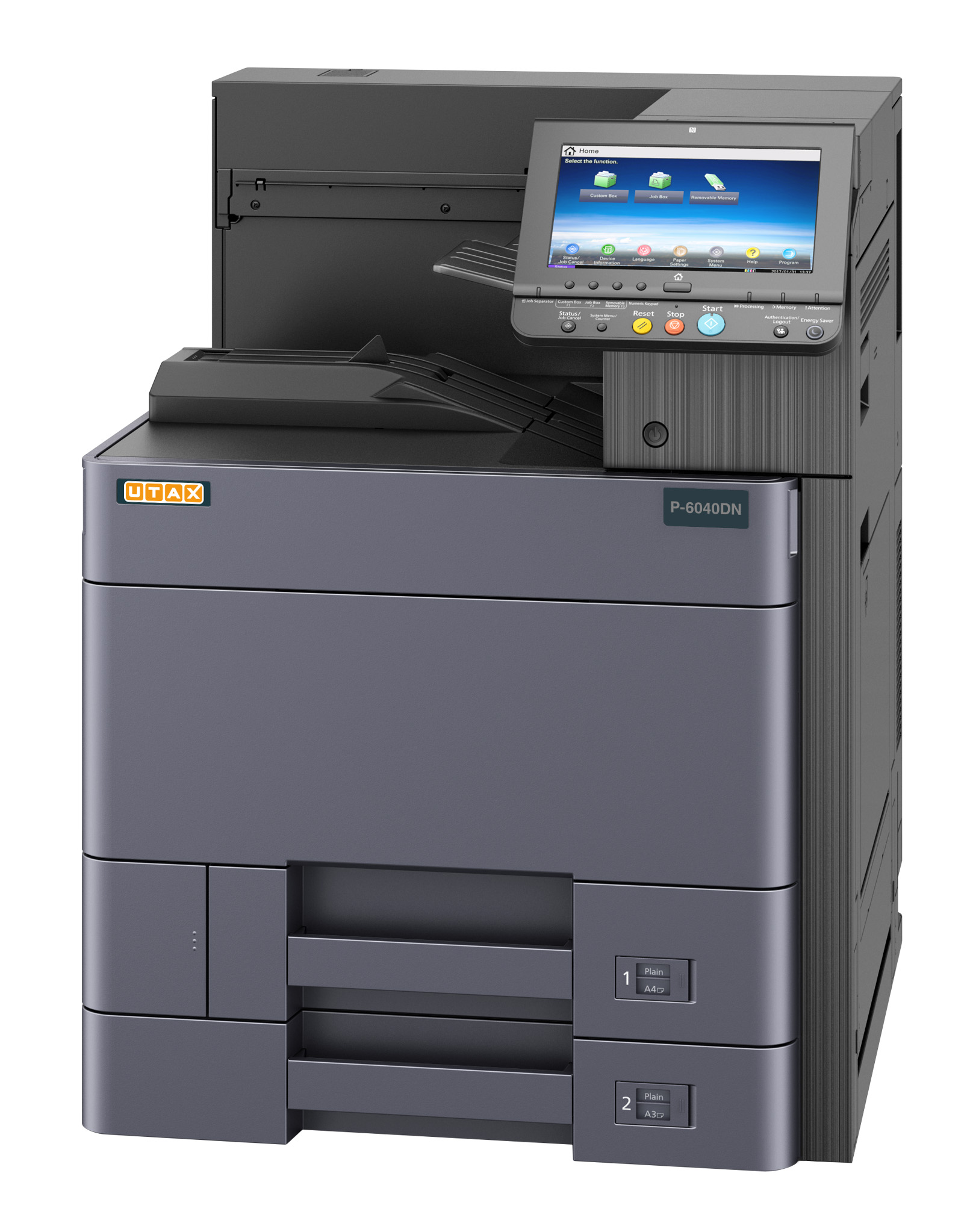

UTAX P-6040DN

[P-6040DN]

Stampante utax A3 / A4 bianco e nero, solo prestazioni elevate


Specifiche Tecniche

Type
Desktop
Function
print
Print technology
Laser b/w
Print format
A6R-A3
Print speed (A4, Simplex) B/W
60
Print speed (A3, Simplex) B/W
30
1st page (printing, b/w)
3.8
Warm-up time
17
Printing resolution (max)
1,200 x 1,200 dpi
Greyscales
256
Paper feed (Universal cassettes amount)
2 x 500 sheet universal cassettes
Paper feed (1st cassette types)
A6R-SRA3
Paper feed (2nd cassette types)
A6R-SRA3
Paper feed (Multi-Bypass amount)
1 x 500 sheet
Paper feed (Multi-Bypass types)
A6R-SRA3
Paper weights (Universal cassette min)
50
Paper weights (Universal cassette max)
300
Paper weights (Multi-Bypass min)
52
Paper weights (Multi-Bypass max)
300
Paper weights (Duplex min)
60
Paper weights (Duplex max)
256
Paper output
500 sheet A4
System memory (RAM)
4
System memory (SSD)
8
System memory (HDD)
320
Processor
Freescale QorIQ T1024 (Dual Core) 1.2 GHz
Interfaces
USB 2.0
10/100/1000BaseTX
USB host
NFC
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows 7
Windows 8.1
Windows 10
Server 2003
Server 2008
Server 2008 R2
Server 2012
Server 2012 R2
Server 2016
Server 2019
Linux
Mac ex OS 10.9
Emulations
PCL6 (PCL 5e, XL)
KPDL 3 (PostScript 3 compatible)
XPS
PDF 1.7
PRESCRIBE Ile
Functions
duplex
management codes
PDF direct printing
Dimensions (height)
790
Dimensions (width)
602
Dimensions (depth)
665
Weight
77.2
Mains voltage
220/240 V
Utility frequency
50/60 Hz
Power consumption (busy)
820
Power consumption (standby)
40
Power consumption (sleep)
1
Power consumption (TEC)
0.9
Noise level (busy, b/w)
59
Noise level (standby)
32.4
Safety
GS/TÜV
CE

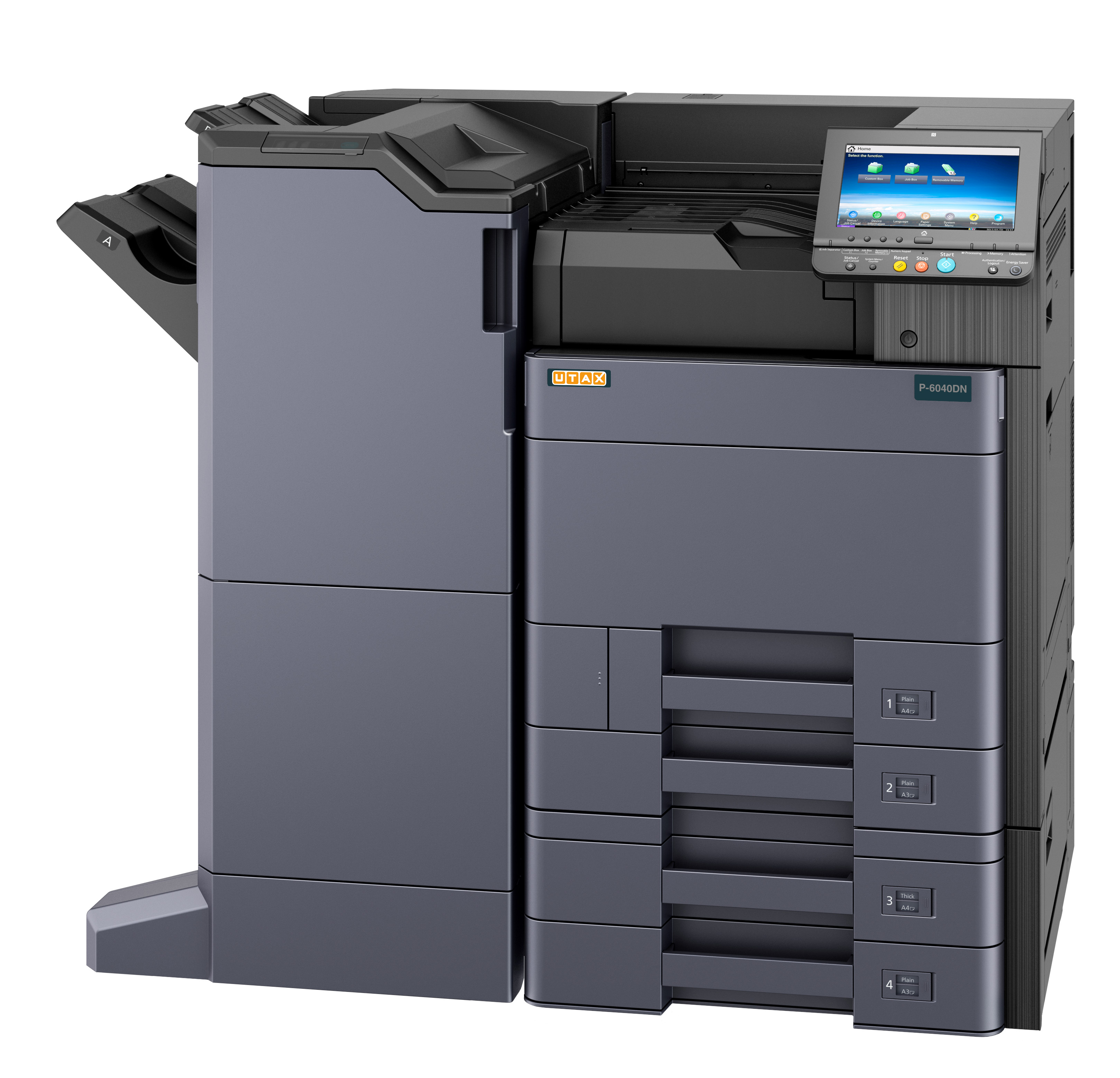

Finisher
DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),
DF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4)
PH-7C hole punch unit for DF-7120/DF-791
MT-730 (B) multi tray for DF-791
Job Separator
JS-7100 (100 sheet, 52-300 g/m², A6R - SRA3)
Paper feed
PF-7100 (2 x 500 sheet universal cassettes [A5R-SRA3])
PF-7110 (2 x 1,500 sheet large capacity cassette [A4])
PF-7120 (3,000 sheet large capacity tray [A4], side deck)
Other options
Data security kit (E)
Card authentication kit (B)
Keyboard holder 10
Banner guide 10
UG-33 ThinPrint® kit
UG-34 Emulation option kit
IB-50 Gigabit Ethernet card
IB-51 WLAN card
IB-35 WLAN card
DT-730(B) Document tray
NK-7100(B) Numeric Keyboard (10 keys)
cabinet no. 76
