Multifunzioni e stampanti UTAX

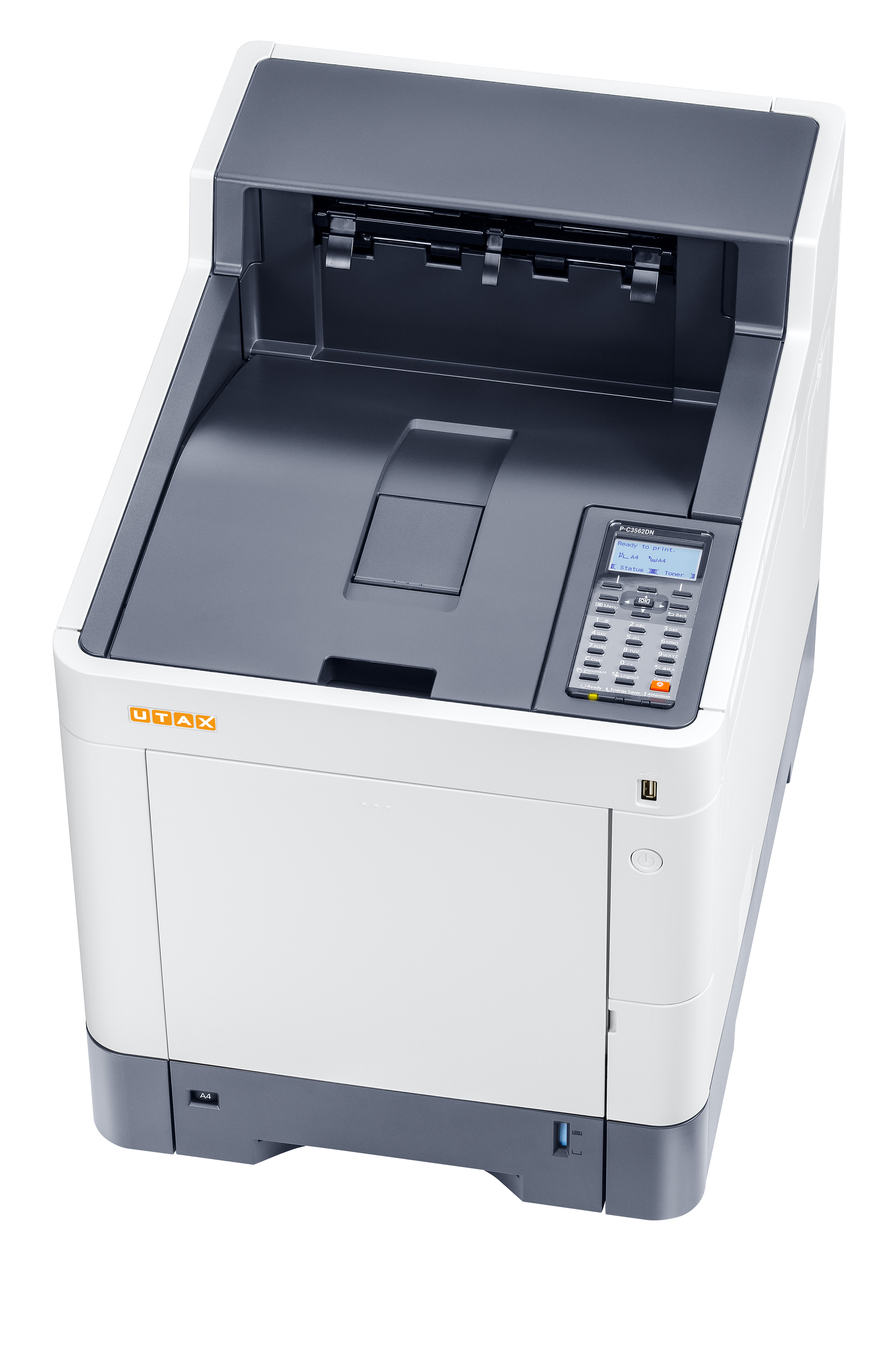

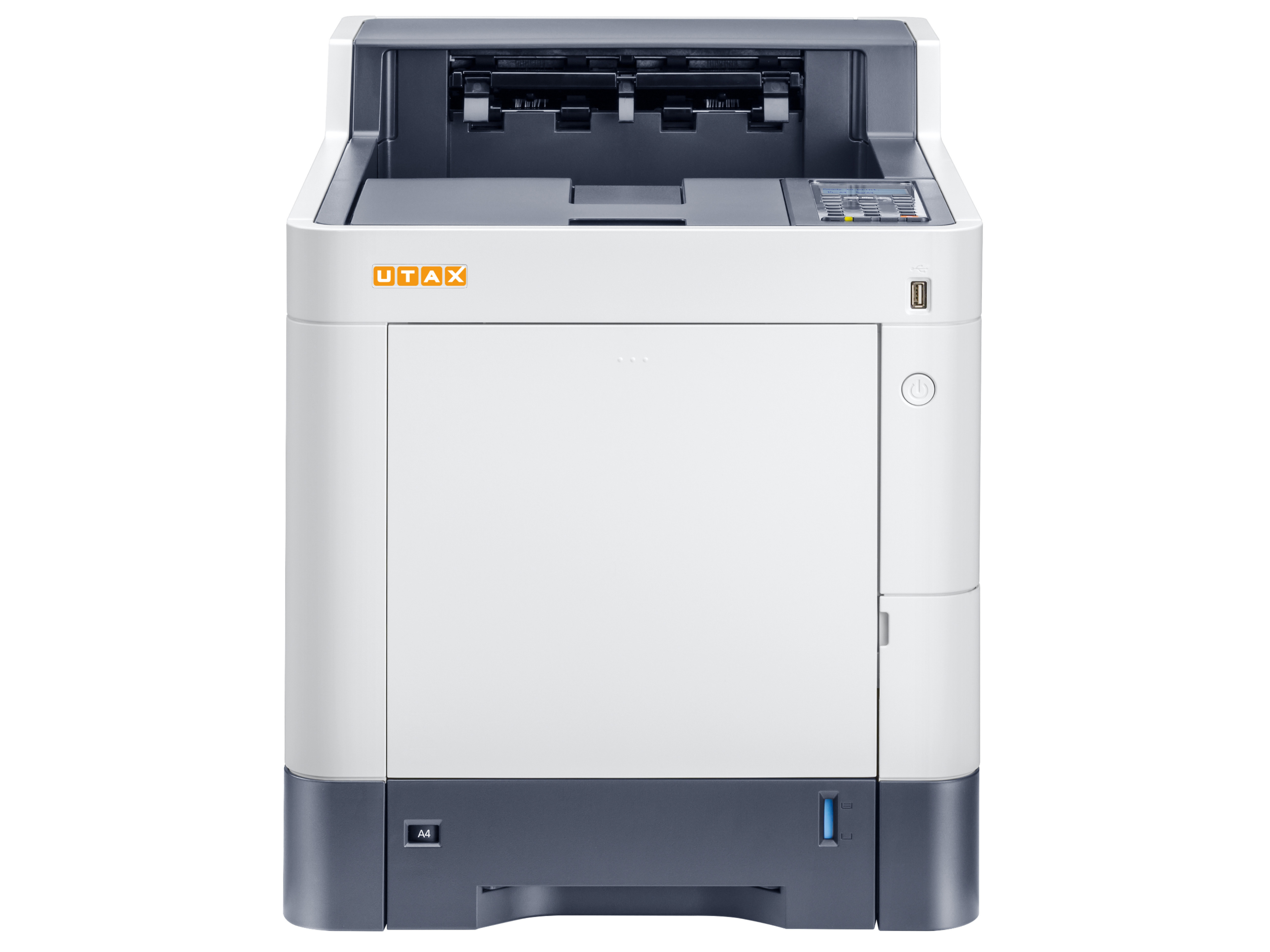

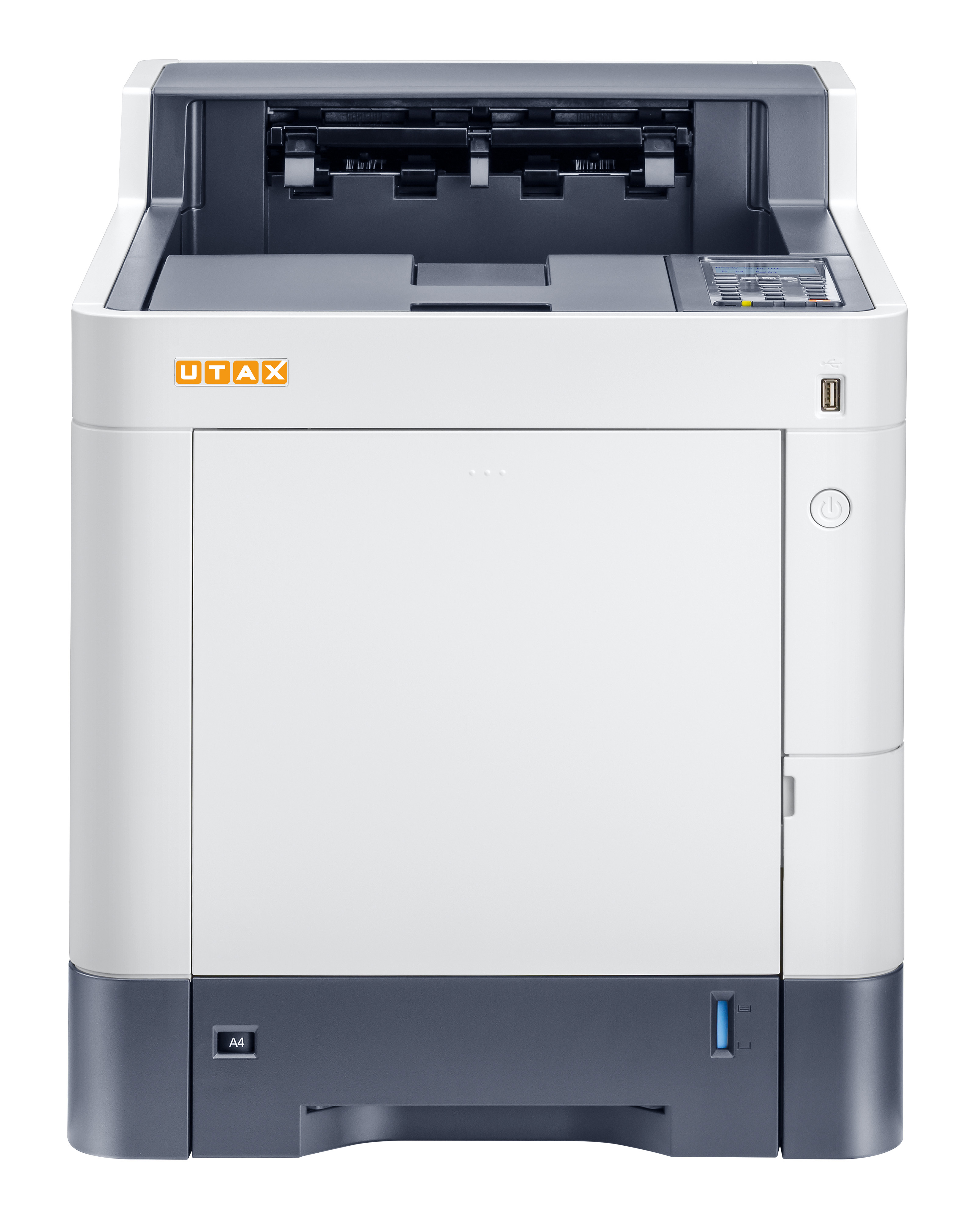

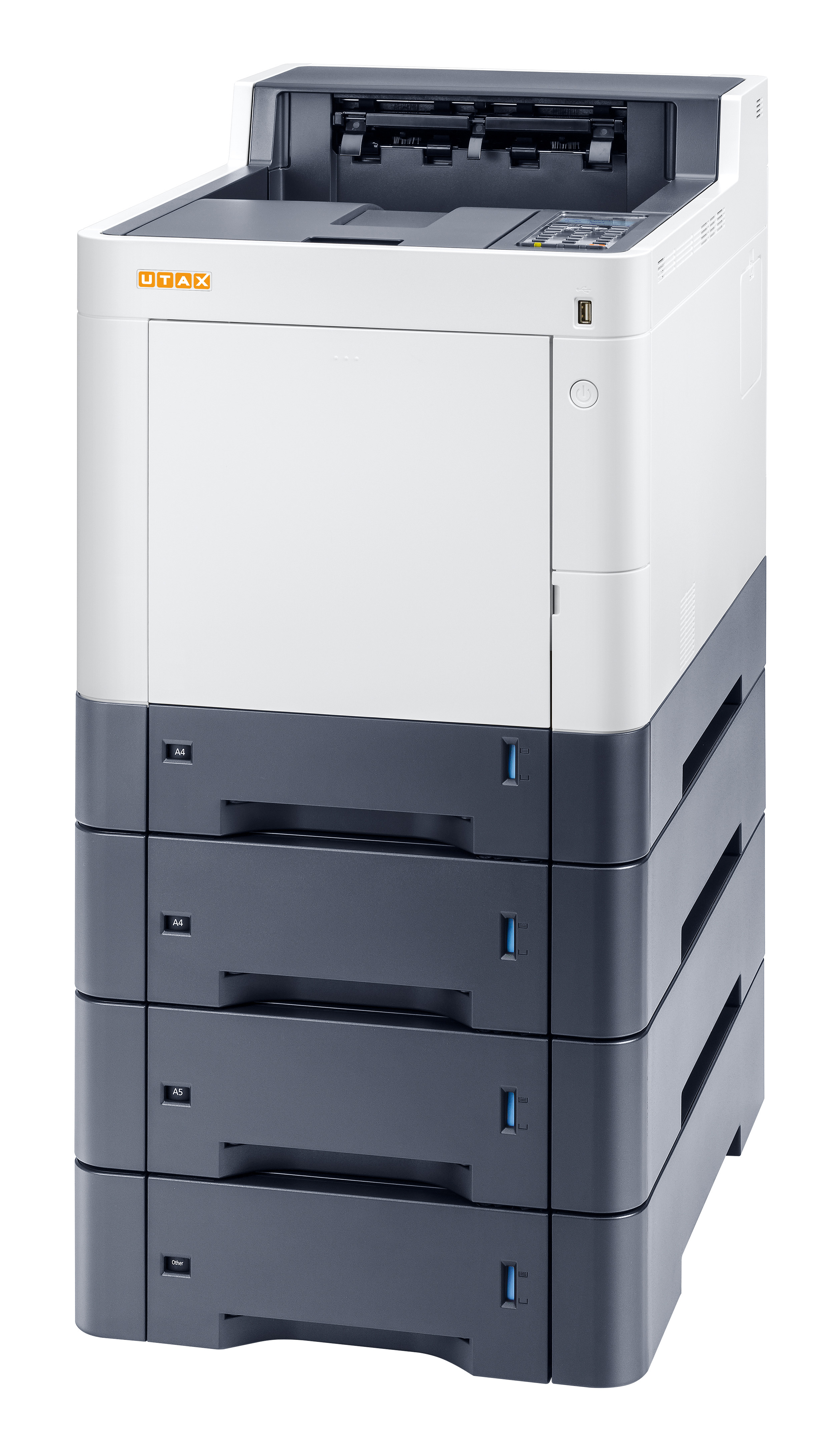

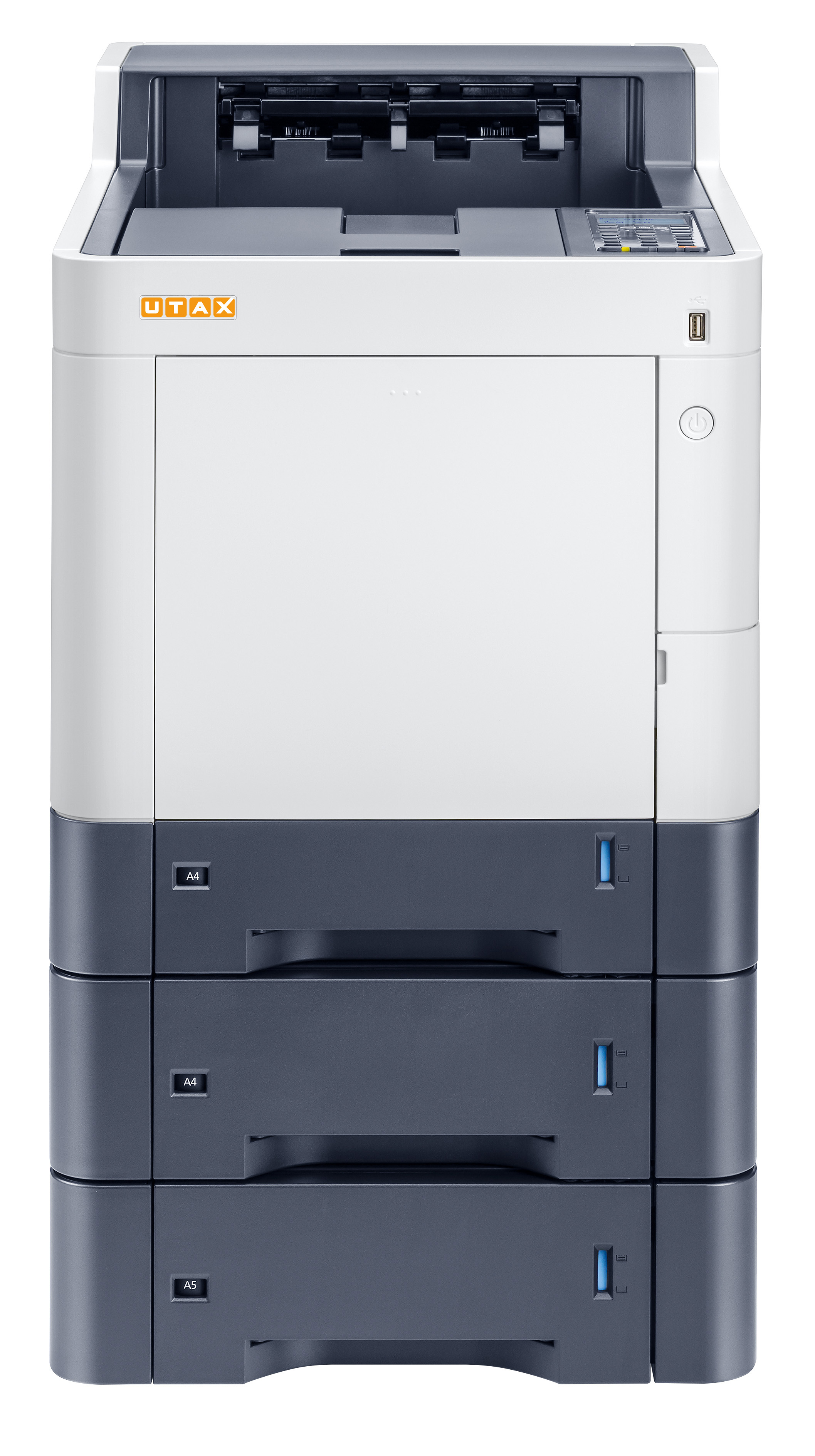

UTAX P-C3562DN

Multifunzione, stampante A4 a colori, 35ppm


Specifiche Tecniche

General
TypeDesktop
FunctionPrint
Print technologyLaser colour and b/w
Print formatmax A4
Print speedmax 35 A4 pages/min in colour and b/w, duplex: max 32 A4 pages/min in colour and b/w
1st pageColour: 7.5 seconds*, b/w: 6.5 seconds*
Warm-up time25 seconds*
Print resolution600 x 600 dpi, max 1,200 x 1,200 dpi (reduced speed)
Greyscales256
Paper feed1 x 500 sheet universal cassette (A6R-A4), 100 sheet multi-bypass (A6R-A4)
Paper weightsUniversal cassette 60-163 g/m², multi-bypass 60-220 g/m², duplex 60-163 g/m²
Paper output500 sheet A4
System memory1,024 MB RAM, max 3,072 MB RAM, 32/128 GB hard disk**
ProcessorARM Cortex-A9 dual core, 1.2 GHz
InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi**
Network protocolsTCP/IP, NetBEUI
Operating systemsWindows 7/8/8.1/10, Server 2008 R2/2012 R2/2016, Novell NetWare**, Linux, Mac ex OS 10.5
EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE IIc, PDF 1.7, XPS
FunctionsColour Optimiser, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android/iOS), Apple AirPrint**, Google Cloud Print, Wi-Fi**
Dimensions/Weight
Dimensions469.5 x 390 x 532 mm (H x W x D)
Weightapprox. 29.5 kg
Environment
Mains voltage220/240 V, 50 Hz
Power consumptionapprox. 1,297 W max, approx. 510 W in operation, approx. 74 W in stand-by mode, approx. 0.6 W in sleep mode, TEC value: 1.6 KWh/week
Noise levelapprox. 52.0 dB(A) in operation, approx. 30.1 dB(A) in stand-by mode (ISO 7779/9296)
SafetyGS/TÜV, CE
 *Depending on operating status.
 **optional

Brochures

Datasheet Italian P-C3062DN_P-C3562DN_P-C4072DN

P-C3062DN / P-C3562DN / P-C4072DN

File size: 0.5 MB
DB_UT_P-C3062DN_P-C3562DN_P-C4072DN_IT.pdf

Product overview August 2018 Italian

LP 3151 / P-3522DW / P-4020DN / P-4020DW / P-4531DN / P-5031DN / P-5531DN / P-6031DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2506ci / 301ci / 3206ci / 3262i / 350ci / 356ci / 4006ci / 400ci / 4056i / 4062i / 5006ci / 5056i / 6006ci / 6056i / 7006ci / 7056i / 8006ci / 8056i / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP

File size: 4.9 MB
BC_UT_PU_A4_08_2018_IT.pdf

Manuali

Instruction Handbook Italian

P-C3562DN / P-C4072DN

File size: 6.6 MB
IH_P-C4072DN_P-C3562DN_UT_IT.pdf

Certificato

Declaration of Conformity

File size: 0.0 MB
CONF_P-C3062-3562DN_UT_Ver1_D_UK.pdf

Safety data sheet

Toner

File size: 0.4 MB
EV_P-C3562iMFP_P-C3566iMFP_P-C3562DN_CMKY_TO_Ver1_UK.pdf

TUV Certificate / Zertifikat

File size: 0.8 MB
TUEV_P-C3062DN_C3562DN_4072DN_ver1.pdf

Drivers

Datasheet Italian P-C3062DN_P-C3562DN_P-C4072DN

P-C3062DN / P-C3562DN / P-C4072DN

File size: 0.5 MB
DB_UT_P-C3062DN_P-C3562DN_P-C4072DN_IT.pdf

Instruction Handbook Italian

P-C3562DN / P-C4072DN

File size: 6.6 MB
IH_P-C4072DN_P-C3562DN_UT_IT.pdf

PRINT-DRIVER

Linux PPD

Version: 8.1710

Date: 18-04-2018

File size: 1.0 MB
Linux_Driver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

MAC Installer OS X 10.8 - 10.12 Sierra

Version: 4.0 / 2018.05.09

Date: 28-05-2018

File size: 19.6 MB
CCD-cLP_MacOSx10.8-10.12_20180528.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

KX Universal PCL / Post Script Driver
Version: 7.2.1019
Microsoft certified

Date: 24-05-2018

File size: 38.2 MB
KX-Driver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1710

Date: 23-05-2018

File size: 0.6 MB
KPDL-Driver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

XPS Driver
Version: 2.2.1019

Date: 23-05-2018

File size: 26.2 MB
XPS-Driver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012,
Server 2012 R2, Server 2016

PCL 5 Driver [Mini Driver]
Version: 1.11

Date: 23-05-2017

File size: 0.1 MB
PCL5-Driver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

KX Universal PCL / Post Script Driver
Version: 7.4.0830
Microsoft certified

Date: 20-09-2018

File size: 69.2 MB
KxDriver_cCD_cLP_V740830_PrDr20180920.zip

PRINT-DRIVER

Windows XP, Windows Vista

KX Universal PCL / Post Script Driver
Version: 6.3.0909

Date: 23-05-2018

File size: 31.4 MB
KX-GenDriver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows XP, Windows Vista

Classic Post Script Driver [KPDL Driver]
German, English, French, Italian, Portuguese, Spain
Version: 8.1112

Date: 23-05-2018

File size: 0.1 MB
KPDL-GenDriver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

PRINT-DRIVER

Windows XP, Windows Vista

PCL 5 Driver [Mini Driver]
Version: 4.1

Date: 23-05-2018

File size: 0.1 MB
PCL5-GenDriver_356ci_P-C3062iMFP_- _P-C3566iMFP_P-C3062DN_-_P-C4072DN_20180523.zip

Product overview August 2018 Italian

LP 3151 / P-3522DW / P-4020DN / P-4020DW / P-4531DN / P-5031DN / P-5531DN / P-6031DN / P-C2650DW / P-C3062DN / P-C3562DN / P-C4072DN / 1855 / 2256 / 2506ci / 301ci / 3206ci / 3262i / 350ci / 356ci / 4006ci / 400ci / 4056i / 4062i / 5006ci / 5056i / 6006ci / 6056i / 7006ci / 7056i / 8006ci / 8056i / P-2540i MFP / P-3521 MFP / P-3527w MFP / P-4020 MFP / P-4025w MFP / P-4026iw MFP / P-4531 MFP / P-4531i MFP / P-4536 MFP / P-4536i MFP / P-5536i MFP / P-6036i MFP / P-C2155w MFP / P-C2480i MFP / P-C2655w MFP / P-C3062i MFP / P-C3066i MFP / P-C3562i MFP / P-C3566i MFP

File size: 4.9 MB
BC_UT_PU_A4_08_2018_IT.pdf

Print Utility

Network Print Monitor 5x

Software + Manual
für Kopiersysteme und Drucksysteme / for Copy Systems and Print Systems
Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016

Version: 5.9.0926b

Date: 15-10-2018

File size: 126.0 MB
PR_NetworkPrintMonitor_V590926b_20181015.zip

Utilities
