Multifunzioni e stampanti UTAX

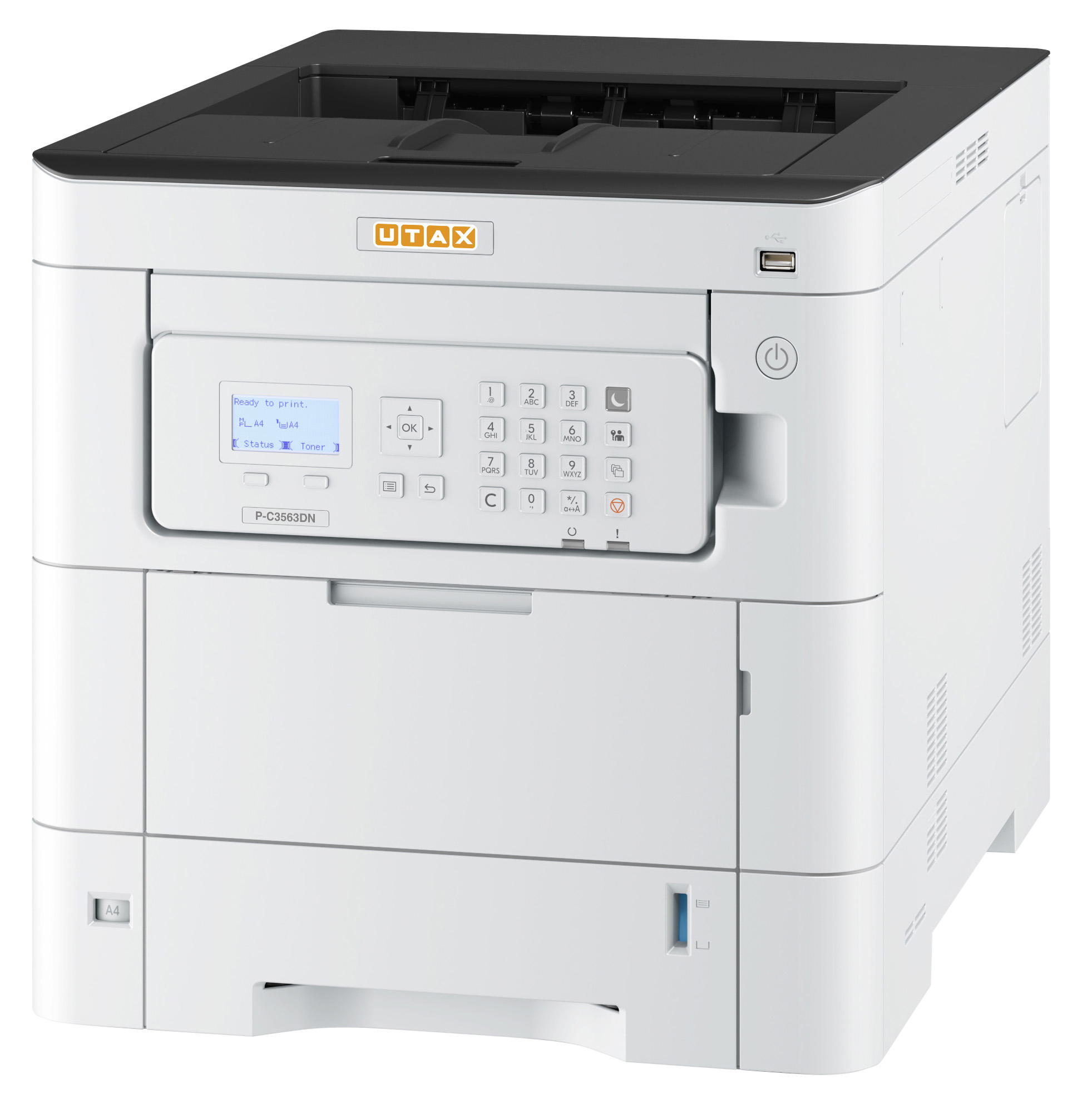

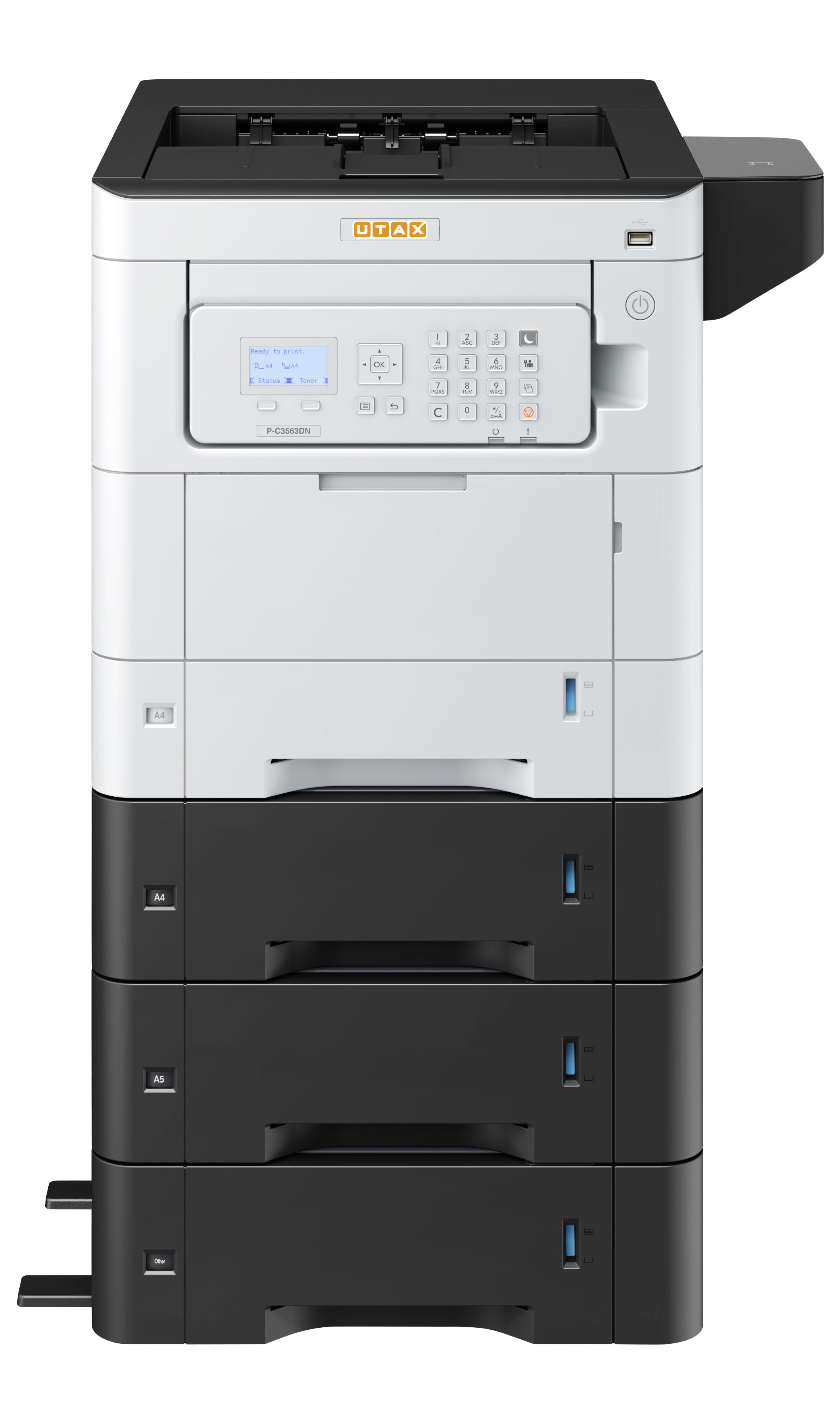

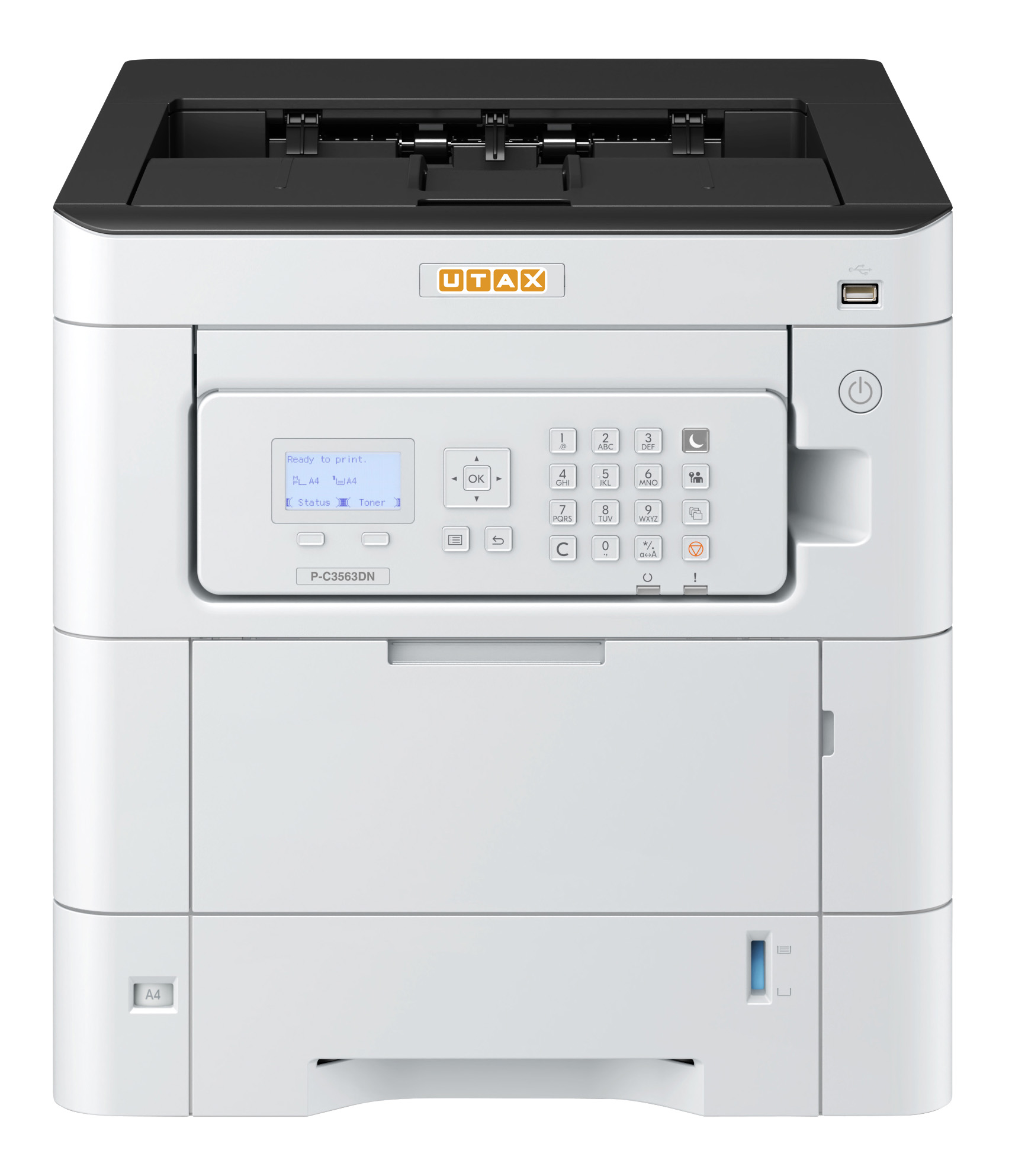

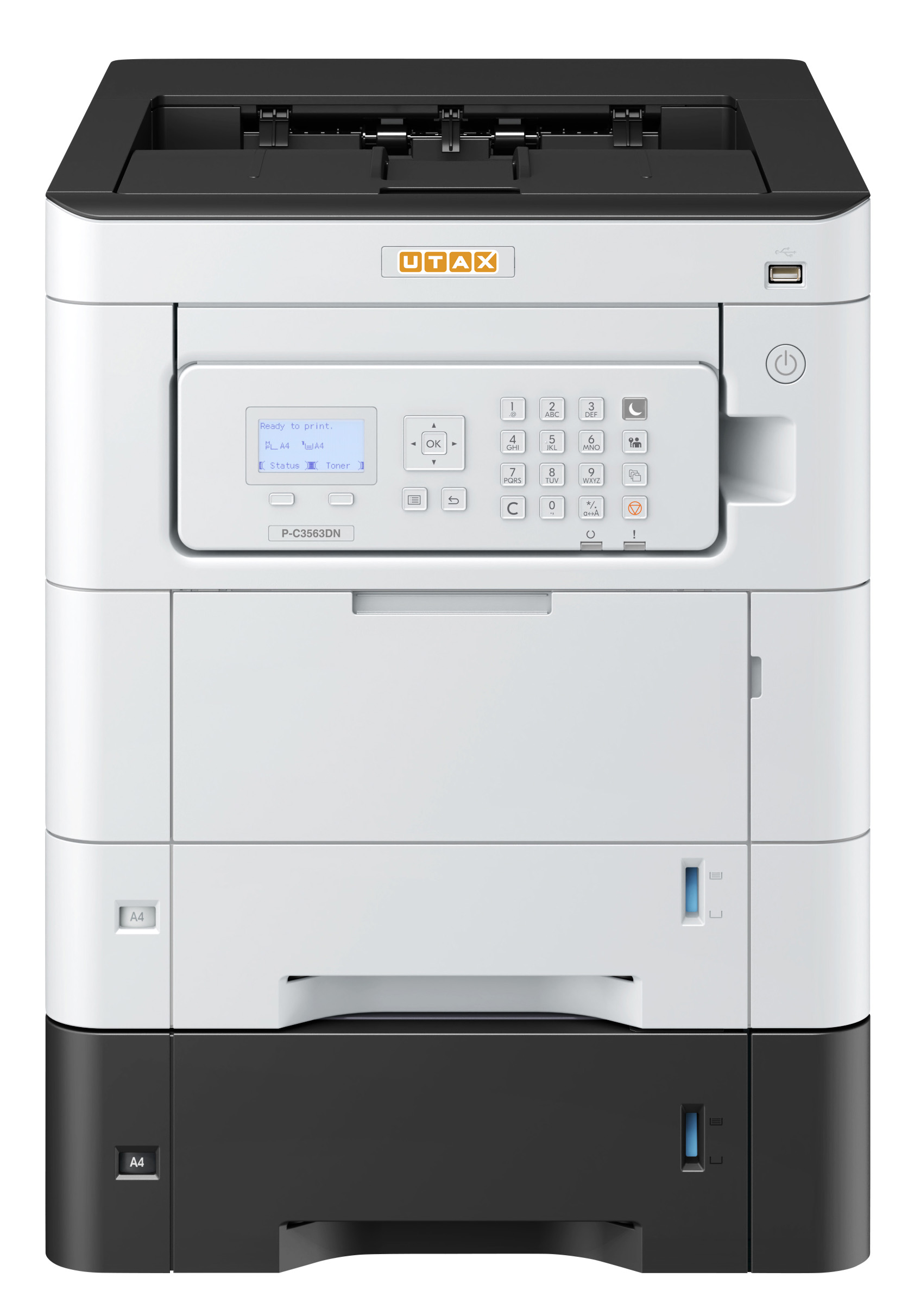

UTAX P-C3563DN

[P-C3563DN]

Laser a colori e in b/n


Specifiche Tecniche

Type
Desktop
Function
print
Print technology
Laser colour and b/w
Print format
max A4
Print speed (A4, Simplex) B/W
35
Print speed (A4, Duplex) B/W
17.5
Print speed (A4, Simplex) Colour
35
Print speed (A4, Duplex) Colour
17.5
1st page (printing, colour)
7
1st page (printing, b/w)
5.7
Warm-up time
23
Printing resolution (min)
600 x 600 dpi
Printing resolution (max)
1,200 x 1,200 dpi (reduced speed)
Greyscales
256
Paper feed (1st cassette types)
A6R-A4
Paper feed (Multi-Bypass amount)
100 sheet multi-bypass (A6R-A3)
Paper feed (Multi-Bypass types)
A6R-A4
Paper weights (Universal cassette min)
60
Paper weights (Universal cassette max)
220
Paper weights (Multi-Bypass min)
60
Paper weights (Multi-Bypass max)
220
Paper weights (Duplex min)
60
Paper weights (Duplex max)
163
Paper output
250 sheet A4
System memory (RAM)
1
System memory (RAM max)
1
System memory (Optional)
64/256/512 GB SSD
Processor
ARM Cortex-A9 Dual core 1.2 GHz
Interfaces
USB 2.0
10/100/1000BaseTX
USB host (2)
Wi-Fi
Network protocols
TCP/IP
Net BEUI
Operating systems
Windows 8
Windows 8.1
Windows 10
Server 2008 R2
Server 2012 R2
Server 2016
Server 2022, Chrome OS, Mac ab OS 10.14
Server 2019
Mac ex OS 10.9
Linux
Emulations
PCL6 (PCL 5c, XL)
KPDL 3 (PostScript 3 compatible)
PRESCRIBE Ilc
PDF 1.7
XPS
Functions
200 dpi
USB direct printing
PDF/XPS direct printing
printing of e-mails
private printing
quiet mode (half speed mode)
barcode printing
Mobile Print (Android/iOS)
Apple AirPrint
Wi-Fi
Microsoft Universal Print
Dimensions (height)
392.5
Dimensions (width)
394
Dimensions (depth)
533
Weight
33
Mains voltage
220/240 V
Utility frequency
50 Hz
Power consumption (max)
1278
Power consumption (busy)
377
Power consumption (standby)
12
Power consumption (sleep)
0.5
Power consumption (TEC)
0.32
Noise level (busy, b/w)
49.5
Noise level (busy, colour)
50
Noise level (standby)
Safety
GS/TÜV
CE
Other options
Card authentication kit (B)
UG-33 ThinPrint® kit
IB-50 Gigabit Ethernet card
IB-37 WLAN card (IEEE802.11a/b/g/n/ac)
UG-35 Trusted Platform Module
IB-51 WLAN card (IEEE802.11/b/g/n)
HD-18 SSD (256 GB)
HD-17 SSD (64 GB)
HD-19 SSD (512 GB)
